Ursalink AM100 Series User Manual

Hide thumbs Also See for AM100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
AM100 Series User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ursalink AM100 Series

Summary of Contents for Ursalink AM100 Series

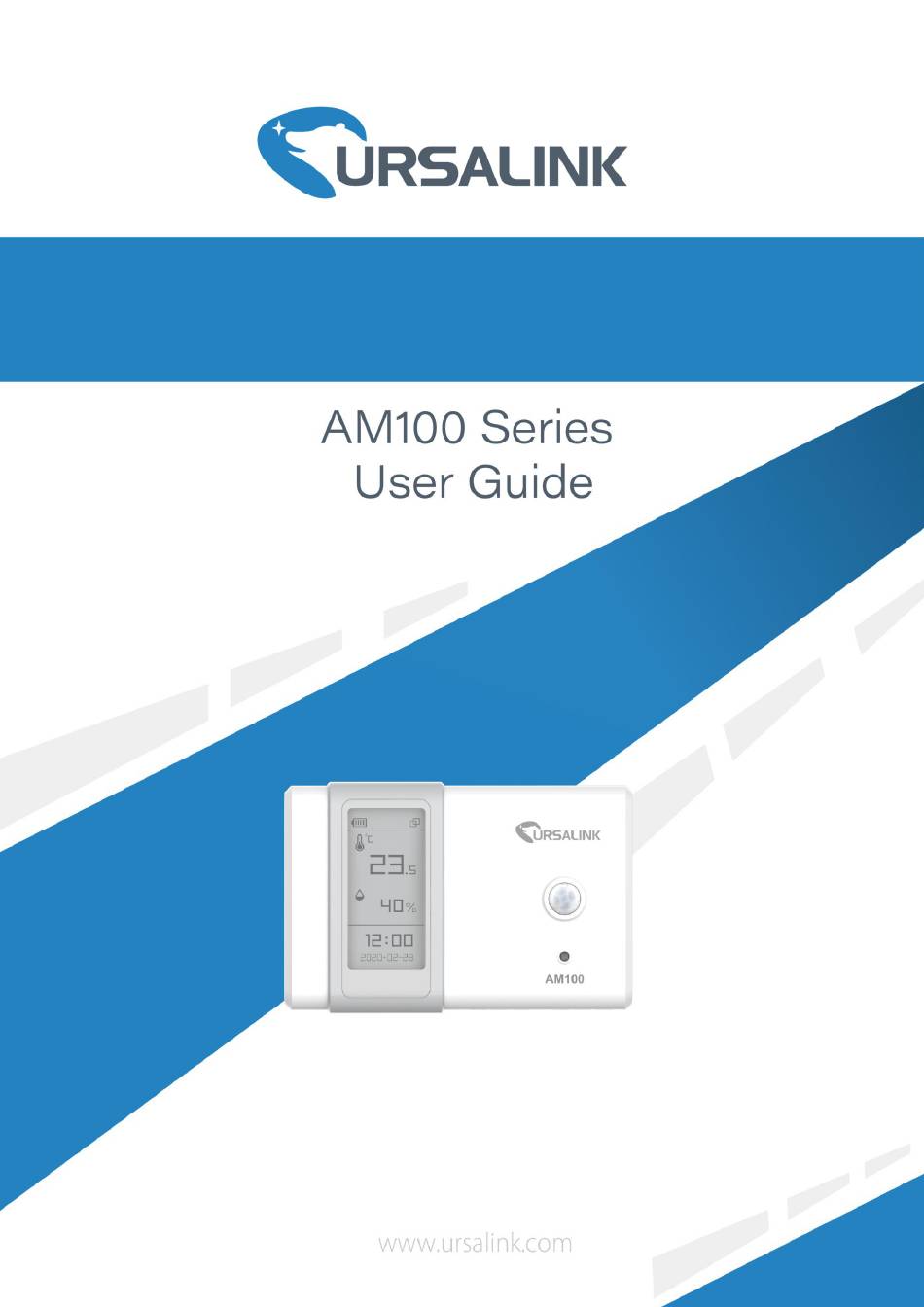

  • Page 1 AM100 Series User Guide...
  • Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes.  The device is not intended to be used as a reference sensor, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    6. Sensor Installation......................... 19 6.1 Installation Note........................19 6.2 Wall Mounting........................19 7.Sensor Management via Ursalink Cloud..................20 7.1 Ursalink Cloud Registration....................20 7.2 Add a Ursalink LoRaWAN Gateway..................20 7.3 Add AM100/AM102 to Cloud....................21 Appendix............................23 Default LoRaWAN Parameters....................23 Default Uplink Channels......................23...

  • Page 4: Overview

    Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Ursalink Cloud or through the user's own Network Server.
  • Page 5 AM100 Series User Guide Detection Area 94 ° Horizontal, 82 ° Vertical Detection Distance Output Range 0-65535 Light Range 60000 lux (Visible + IR, IR) Accuracy ±30% Range 400 - 5000 ppm Accuracy ±30 ppm or ±3 % of reading...

  • Page 6: Hardware Introduction

    NFC Reader (LR6) Sticker Screws Card Guide (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales representative. 2.2 Product Overview Front Panel: ①E-ink screen ② NFC Area ③ LoRa Antenna (Internal) ④PIR Sensor ⑤Light Sensor...

  • Page 7: E-Link Screen

    AM100 Series User Guide 2.3 E-link Screen 2.3.1 Screen Icons AM100 series provide 3 types of display modes: AM100 Mode 1 Mode 2 Mode 3 AM102 Mode 1 Mode 2 Mode 3 To learn what an icon means, find it below.

  • Page 8: Screen Mode Switch

    Alarm 1: ≥1000ppm 2 min Alarm 2: ≥1200ppm Note: AM100 series will do a full-screen refresh every 30 minutes in order to remove ghosting. 2.3.2 Screen Mode Switch Here are 3 methods to switch between the three modes: Power button: Quick press on the power button to switch the mode.

  • Page 9: Dimensions

    Remove the battery cover and install two new AA/LR6 batteries. Batteries can be replaced on the fly. Note: AM100 series can also be powered by type-C USB port (5V, 100mA). When batteries and  external power are both connected, external power will power the device first.

  • Page 10: Turn On/Off Via Power Button

    AM100 Series User Guide 4. Turn On/Off via Power Button AM100 series can be turned on/off or reset by power button on the rear panel. Function Action Press and hold the power button for more than 3 seconds Turn On until the screen changes state.

  • Page 11: Template Settings

    AM100 Series User Guide 3. When you perform one of the following operations, enter the password and attach the smartphone with NFC area to the device until the APP shows a successful prompt. Turn on/off the sensor  Reset the sensor ...
  • Page 12 AM100 Series User Guide 2. Attach the smartphone with NFC area to another device. 3. Select the template file from Toolbox and click “Write”. 4. Enter password of this device and keep the two devices close until the APP shows a successful...

  • Page 13: Configuration Via Pc

    AM100 Series User Guide 5. Slide the template item left to edit or delete the template. 5.2 Configuration via PC Preparation: Dedicated NFC Reader or Type-C USB cable  PC (Windows 10 is recommended)  Toolbox: https://www.ursalink.com/en/software-download/  5.2.1 Log in the Toolbox Make sure “Toolbox”...

  • Page 14: Basic Configuration

    AM100 Series User Guide NFC Connection 1. Connect the NFC reader to computer, then attach the sensor to NFC area of the reader. 2. Select type as “NFC” and serial port as NFC reader port on Toolbox. 5.2.2 Basic Configuration 1.

  • Page 15: Upgrade

    AM100 Series User Guide 5.2.3 Upgrade 1. Download AM firmware to your computer. 2. Go to “Maintenance -> Upgrade” page of Toolbox. 3. Click “Browse” and select the firmware from computer. 4. Click “Upgrade” to upgrade the device. Note: If NFC connection is selected, please keep the two devices close and don’t move them in order to get the best connectivity as possible when upgrading.

  • Page 16: Reset

    AM100 Series User Guide 3. Click”Browse” to select the correct template from computer. 4. Click”Import”to import the template to the device. 5.2.4.2 Reset Click the”Reset” to reset the setting to factory default.

  • Page 17: Configuration Examples

    AM100 Series User Guide 5.3 Configuration Examples 5.3.1 LoRaWAN Channel Settings The configuration of LoRaWAN channel of AM100/AM102 must match the LoRaWAN gateway’s. Refer to Appendix to check default channel settings of AM100/AM102. Mobile APP Configuration: Open Toolbox APP and go to “Device ->Setting -> LoRaWAN Settings”to change the frequency and channels.

  • Page 18: Time Synchronization

    AM100 Series User Guide 5.3.2 Time Synchronization Mobile APP Configuration: Open Toolbox APP and go to “Device ->Status”to click “sync” to sync the time on the screen. Software Configuration: Log in Toolbox and go to “Status” page to sync the time on the screen.

  • Page 19: Sensor Installation

    6. Sensor Installation 6.1 Installation Note In order to ensure the best detection and LoRaWAN communication effect, it is recommended to install AM100 series as follows: There should not be any isolates or barriers in PIR and light detection range. ...

  • Page 20: Sensor Management Via Ursalink Cloud

    7.1 Ursalink Cloud Registration Register and log in Ursalink Cloud. Ursalink Cloud URL: https://cloud.ursalink.com/login.html 7.2 Add a Ursalink LoRaWAN Gateway 1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet.

  • Page 21: Add Am100/Am102 To Cloud

    AM100 Series User Guide 2.Go to “My Devices->Gateway” of Ursalink Cloud and click “Add” to add gateway to Ursalink Cloud via SN. 3.Check if gateway is online in Ursalink Cloud. 7.3 Add AM100/AM102 to Cloud 1. Go to “Device->My Devices” and click “Add Device”. Fill in the SN of AM100/AM102 and select...
  • Page 22 AM100 Series User Guide 2.After AM100/AM102 is connected to Ursalink Cloud, Click or “History Data” to check the data on Ursalink cloud. 3.Go to “Dashboard” page to add widgets to the dashboard.

  • Page 23: Appendix

    AM100 Series User Guide Appendix Default LoRaWAN Parameters 24E124 + 2 to 11 digits of SN DevEUI e.g. SN = 61 26 A1 01 84 96 Then Device EUI = 24E124126A101849 AppEUI 24E124C0002A0001 Appport 0x55 NetID 0x010203 The 5 to 12...

This manual is also suitable for:

Am102Am100
