Atdec AF-ATC Installation Manual page 2

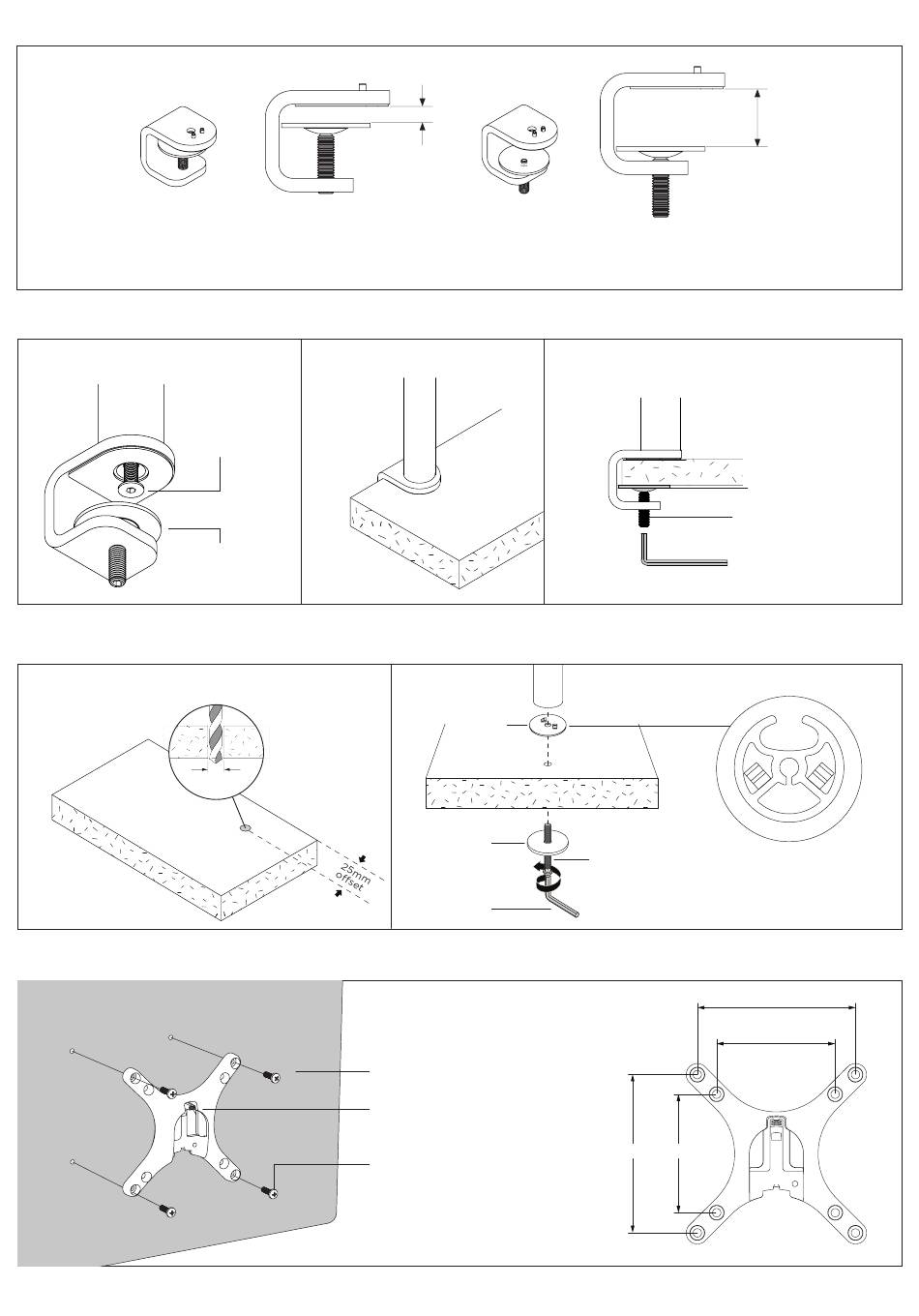

1. Desk overview
1.1 Worksurface thickness
2. Post mount configuration
2.1 Attach clamp to post
M8 x 30mm
screw Tighten
firmly
Place pressure
plate on end of
clamp screw
3. Bolt through - Drill Hole
3.1 Drill 9mm hole in
desired post position
on work surface.
5. Install VESA monitor head
5.1 Install VESA monitor head as shown.
MIN THICKNESS - 10mm (3/8")
2.2 Place in desired location
9mm
(3/8")
MAX THICKNESS - 34mm (1,1/4")
4. Bolt Pole to work surface
Bolt
Through
Plate
Steel
Washer
5mm
Allen Key
Screen
VESA monitor
head
M4x10/12/16mm
Phillips Head Mounting
Screws
2.3 Screw pressure plates in and tighten firmly.
M8x60mm
Note orientation of
Screw
plate with pole
100mm 75mm
Pressure Plate
Clamp Screw
Allen Key
100mm
75mm
AF-ATC Page 2 of 4
