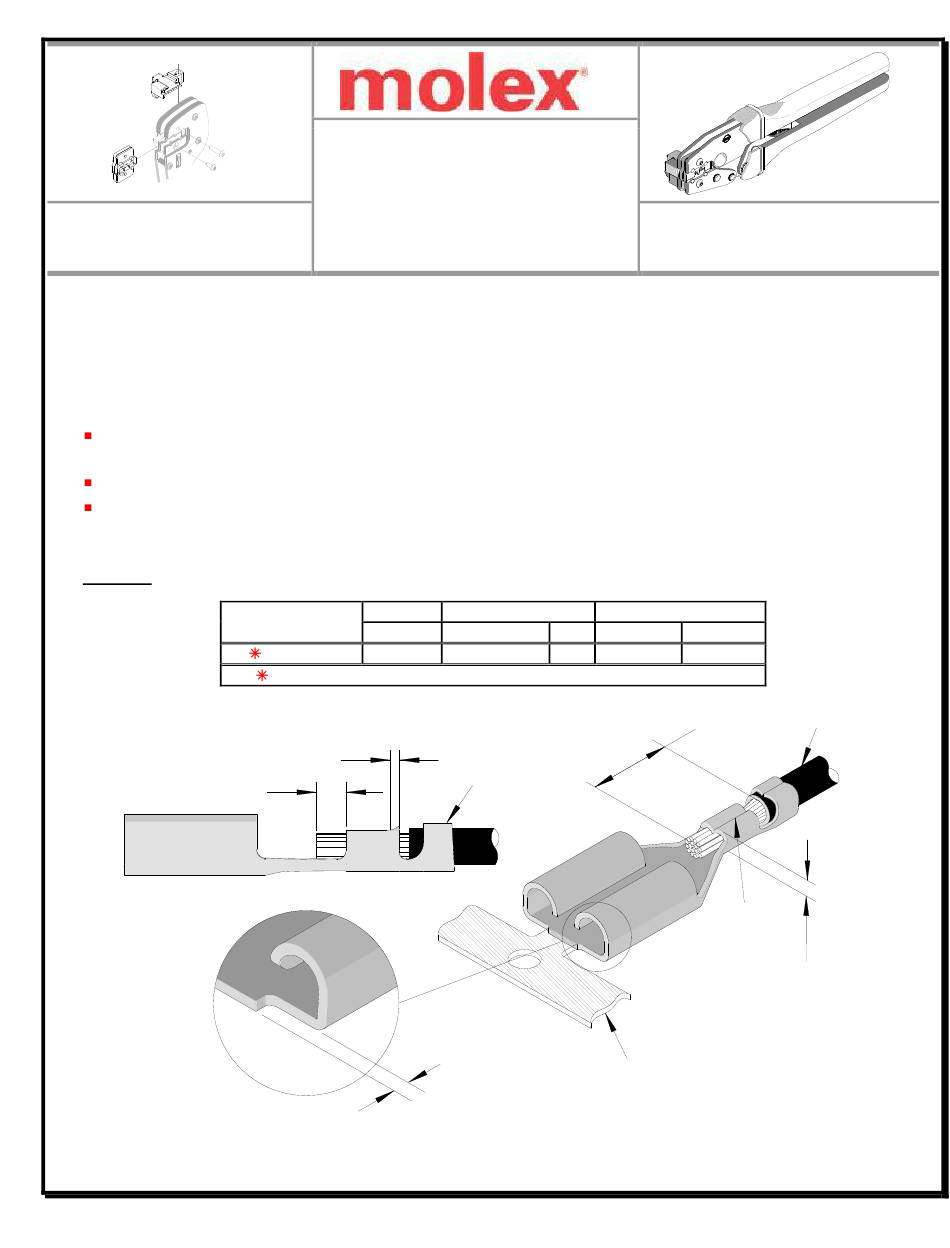

Tool Kit for Slip-On Wire-to-Wire Crimp Terminals
Tool Kit
Order No. 63819-7370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 6.35mm (.250") Tab Slip-On Wire-to-Wire Receptacle Terminal, 14 -18 AWG.
Terminal Order No.
DEFINITION OF TERMS
BRUSH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381973HM Release Date: 04-30-09
Revision: B
Application Tooling
Specification Sheet
Wire Size
AWG
35725-5110
14 - 18
Customer to cut off terminal from reel: 0.50mm (.019") maximum Cut-off Tab.
BELL MOUTH
Revision Date: 10-11-10
Insulation Diameter
mm
In.
3.60 maximum
.142
4.40 – 4.80
INSULATION
CRIMP
CUT-OFF
TAB
TERMINAL
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63819-7300
Strip Length
mm
In.
.173 - .189
STRIP
LENGTH
SEAM
CONDUCTOR
CRIMP HEIGHT
STRIP
TYPE 2C
WIRE
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for molex 63819-7300
Summary of Contents for molex 63819-7300
- Page 1 Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63819-7370 Order No. 63819-7300 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
-
Page 2: Installation
Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. -
Page 3: Operation
Tool Kit for Slip-On Wire-to-Wire Crimp Terminals Anvils and Punches Installation 1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place. 2. Insert the Punches into the top slots of the nest. Install the M4 x 18 long BHCS and tighten in place. See Figure 1. -
Page 4: Maintenance
Tool Kit for Slip-On Wire-to-Wire Crimp Terminals correspond with the A, B, or C profile on the hand tool. 4. Return the locator to its original position. 5. Insert the proper wire over the terminal. Some large O.D. wires may need to be placed into the terminal before closing the tool. -
Page 5: Warranty
This tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY... - Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 7 Tool Kit for Slip-On Wire-to-Wire Crimp Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-0100 Hand Crimp Frame (Short) 63810-0400 Hand Crimp Frame (Long) 63819-7370 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...
-
Page 8: Hand Tool Parts List
Tool Kit for Slip-On Wire-to-Wire Crimp Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-0400 Hand Crimp Frame (Long) 63810-0101 Wrench Set (Not included) 63810-0102 Locator Base 63810-0103 Repair Kit (Not included) 63819-7370 Tool Kit with Locator 63819-7375 Locator (only) LOCATOR ONLY... -
Page 9: Power Head Parts List
Power Crimp Head 63819-7370 63819-7370 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381973HM Release Date: 04-30-09 Page 9 of 9 Revision: B Revision Date: 10-11-10...
