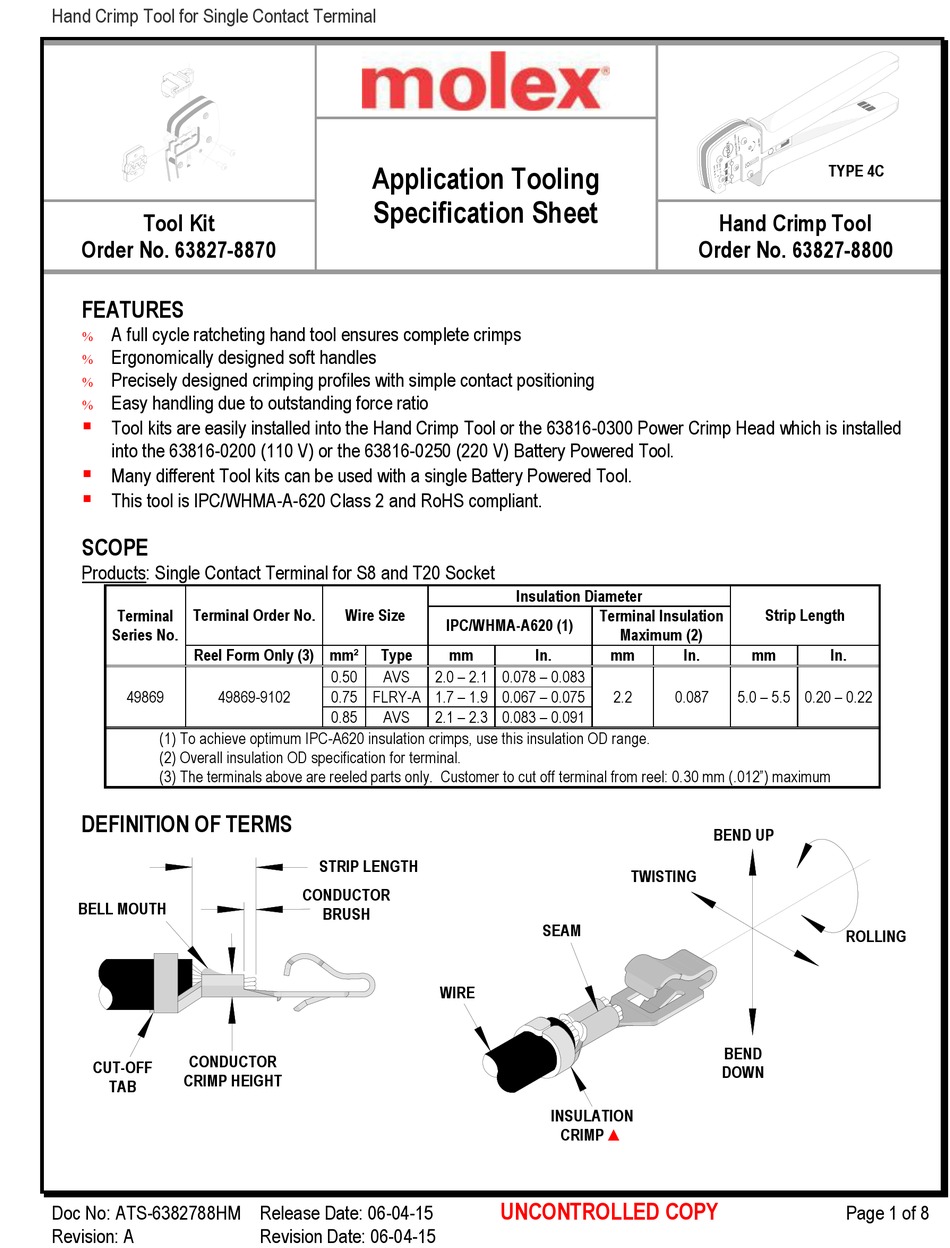

molex 63827-8800 Specification Sheet

Hand Crimp Tool for Single Contact Terminal
Tool Kit
Order No. 63827-8870
FEATURES
A full cycle ratcheting hand tool ensures complete crimps

Ergonomically designed soft handles

Precisely designed crimping profiles with simple contact positioning

Easy handling due to outstanding force ratio


Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

Many different Tool kits can be used with a single Battery Powered Tool.

This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Single Contact Terminal for S8 and T20 Socket
Terminal Order No.
Terminal
Series No.
Reel Form Only (3) mm²
49869 49869-9102
(1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.
(3) The terminals above are reeled parts only. Customer to cut off terminal from reel: 0.30 mm (.012") maximum
DEFINITION OF TERMS
BELL MOUTH
CONDUCTOR
CUT-OFF
CRIMP HEIGHT
TAB
Doc No: ATS-6382788HM Release Date: 06-04-15
Revision: A
Application Tooling
Specification Sheet
Wire Size
Type
0.50 AVS 2.0 – 2.1 0.078 – 0.083
0.75 FLRY-A 1.7 – 1.9 0.067 – 0.075
0.85 AVS 2.1 – 2.3 0.083 – 0.091
STRIP LENGTH
CONDUCTOR
BRUSH
WIRE
Revision Date: 06-04-15
Insulation Diameter
Terminal Insulation
IPC/WHMA-A620 (1)
Maximum (2)
mm In. mm
2.2
SEAM
INSULATION
CRIMP ▲
UNCONTROLLED COPY

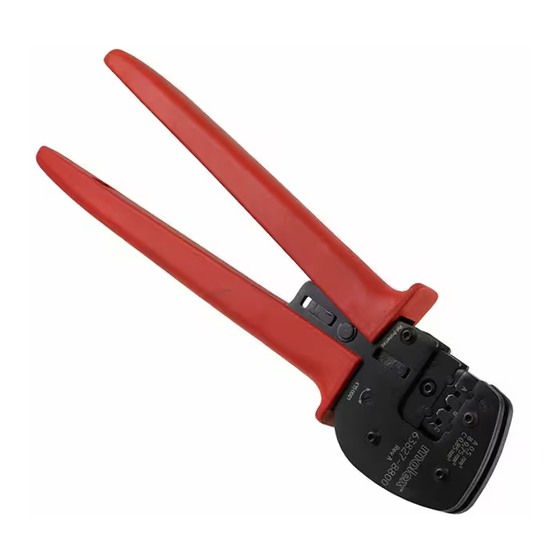

Hand Crimp Tool
Order No. 63827-8800
Strip Length
In. mm
0.087 5.0 – 5.5 0.20 – 0.22
BEND UP
TWISTING
BEND
DOWN
TYPE 4C
In.
ROLLING
Page 1 of 8
