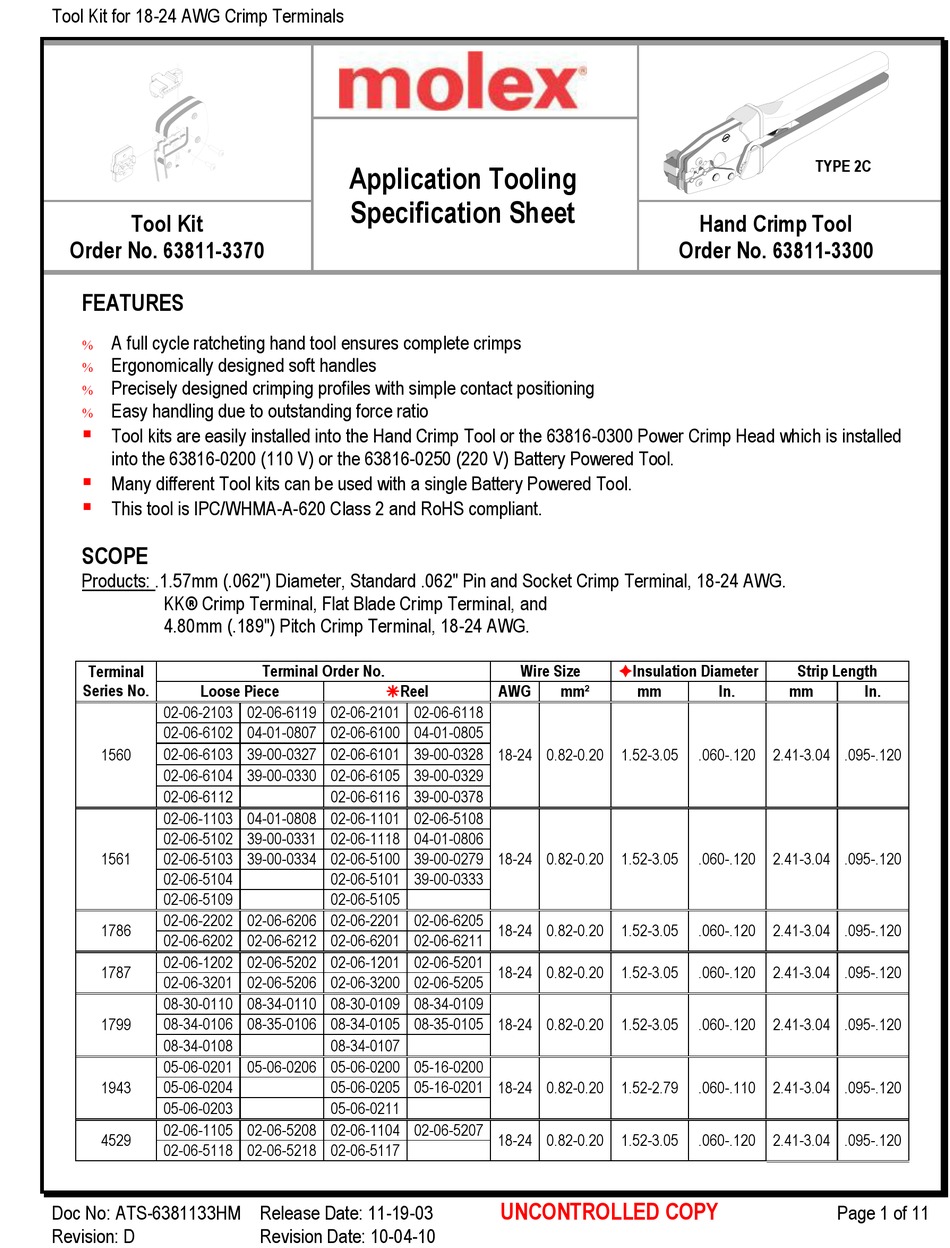

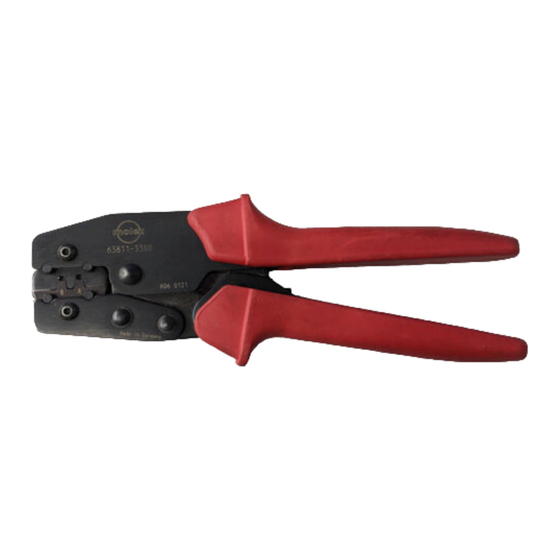

Tool Kit for 18-24 AWG Crimp Terminals
Tool Kit
Order No. 63811-3370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: .1.57mm (.062") Diameter, Standard .062" Pin and Socket Crimp Terminal, 18-24 AWG.
KK® Crimp Terminal, Flat Blade Crimp Terminal, and
4.80mm (.189") Pitch Crimp Terminal, 18-24 AWG.
Terminal
Series No.
Loose Piece
02-06-2103 02-06-6119 02-06-2101 02-06-6118
02-06-6102 04-01-0807 02-06-6100 04-01-0805
02-06-6103 39-00-0327 02-06-6101 39-00-0328
1560
02-06-6104 39-00-0330 02-06-6105 39-00-0329
02-06-6112
02-06-1103 04-01-0808 02-06-1101 02-06-5108
02-06-5102 39-00-0331 02-06-1118 04-01-0806
1561
02-06-5103 39-00-0334 02-06-5100 39-00-0279
02-06-5104
02-06-5109
02-06-2202 02-06-6206 02-06-2201 02-06-6205
1786
02-06-6202 02-06-6212 02-06-6201 02-06-6211
02-06-1202 02-06-5202 02-06-1201 02-06-5201
1787
02-06-3201 02-06-5206 02-06-3200 02-06-5205
08-30-0110 08-34-0110 08-30-0109 08-34-0109
08-34-0106 08-35-0106 08-34-0105 08-35-0105
1799
08-34-0108
05-06-0201 05-06-0206 05-06-0200 05-16-0200
05-06-0204
1943
05-06-0203
02-06-1105 02-06-5208 02-06-1104 02-06-5207
4529
02-06-5118 02-06-5218 02-06-5117
Doc No: ATS-6381133HM Release Date: 11-19-03
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Reel
02-06-6116 39-00-0378
02-06-5101 39-00-0333
02-06-5105
08-34-0107
05-06-0205 05-16-0201
05-06-0211
Revision Date: 10-04-10
Wire Size
Insulation Diameter
AWG
mm²
mm
18-24 0.82-0.20 1.52-3.05
18-24 0.82-0.20 1.52-3.05
18-24 0.82-0.20 1.52-3.05
18-24 0.82-0.20 1.52-3.05
18-24 0.82-0.20 1.52-3.05
18-24 0.82-0.20 1.52-2.79
18-24 0.82-0.20 1.52-3.05
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63811-3300
Strip Length
In.
mm
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
.060-.110
2.41-3.04 .095-.120
.060-.120
2.41-3.04 .095-.120
Page 1 of 11
In.
Advertisement
Table of Contents
