molex 63600-0478 Specification Sheet

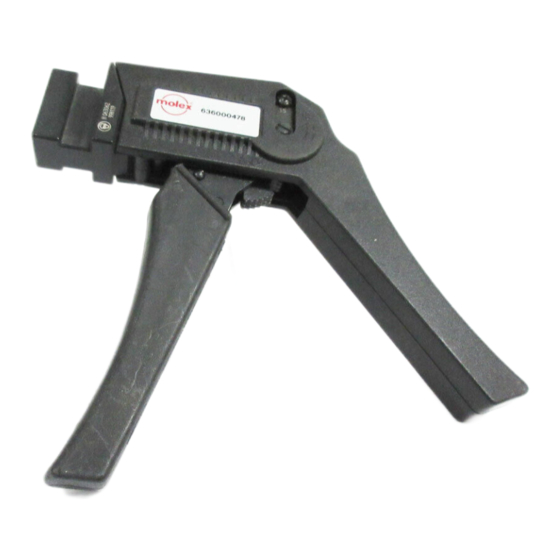

IDT Manual Hand Tool
IDT
Manual
Hand Tool
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Use with interchangeable Change Head modules that are easy to install

This tool is designed for prototype, low volume, and field repair applications
SCOPE
This Hand Tool is intended to be used with the Change Head Modules listed below:
Order No. Engineering No. Connector Series No.
11-21-5196 AM60116
11-21-5197 AM60115
11-21-8365 AM60519
11-21-9756 AM60512A
11-31-3337 AM60571
11-31-3339 AM60539
11-31-3340 AM60575
11-31-4652 AM60577
11-31-8939 AM60087
11-32-5759 AM63186
11-32-6027 AM63175
11-39-0273 AM63538
11-39-0303 AM63534
62100-0300 62100-0300
62100-0400 62100-0400
62100-0700 62100-0700
62100-2000 62100-2000
69008-0225 69008-0225
69008-0240 69008-0240
69008-0250 69008-0250
Doc No: ATS-636000478
Revision: C
Application Tooling
Specification Sheet
Change Head List
7674 7475
40791 40915
7720 7720S
40555
7720
40555
70156
87259 87568
70625 71247
70121 71898
70121
5320 40312
70625 71247
71898
42219 42254
87259
71156
30452
71690 71694
70107 71178
7674 7675
70400 70475
90187
87568
7720 7720S
7795 40555
7674 7475
5320 5320
40312 90635
Release Date: 12-22-05
Revision Date: 07-27-15
Connector Description
KK® IDT Double Cantilever Contact 3.96mm (.156") Pitch, 2 to 16 Circuits.
IDT 3.96mm (.156") Pitch, 2 to 24 Circuits
KK ® IDT Double Cantilever Contact, 2.54mm (.100") Pitch,
KK ® IDT Double Cantilever Contact, 2.54mm (.100") Pitch,
5.08mm ( .200") Pitch , Female Type IDT Connector
Mill-Grid™ IDT 2.00mm (.079") Pitch Cable-to-Board, 10 to 50 Circuits.
MX-50™ 1.27mm (.050") Pitch Slimline Ribbon Cable,
MX-50™ 1.27mm (.050") Pitch Slimline Ribbon Cable, 6 to 64 Circuits.
QF-50™ 2.54mm (.100") Pitch Receptacle 10 to 64 Circuits.
MX-50™ 1.27mm (.050") Pitch Slimline Ribbon Cable,
2.50 mm (.098 inch) Pitch, 2 to 15 Circuits
SPOX™ IDT
Mill-Grid™ IDT 2.00mm (.079") Pitch, 10 to 50 Circuits.
5.08mm (.200") Disk Drive Power Connector
IDT 2.00mm (.079") Pitch, 2 to 21 Circuits
Mini-Fit IDT™ 4.20mm (.165") Receptacle and Plug, 2 to 12 Circuits.
SL™2.54mm (.100") Pitch Wire-to-Wire Crimp Connector 2 to 25 Circuits.
KK® IDT Double Cantilever Contact. 3.96mm (.156") Pitch, 2 to 16 Circuits.
SL™2.54mm (.100") Pitch Insulation Displacement, 2 to 25 Circuits.
C-Grid III™ 2.54mm (.100") Pitch
Mill-Grid™ IDT 2.00mm (.079") Pitch Cable-to-Board, 10 to 50 Circuits.
KK® IDT 2.54mm (.100") Double Cantilever Contact, 2 to 28 Circuits
KK® IDT Double Cantilever Contact 3.96mm (.156") Pitch, 2 to 16 Circuits
QF 50™2.54mm (.100") Pitch, 10-64 Circuits.
UNCONTROLLED COPY
Order No. 63600-0478
2 to 28 Circuits.
2 to 28 Circuits.
6 to 64 Circuits.
Cable Shear
6 to 64 Circuits.
Page 1 of 4
