Prorack PR3104 Instructions

FIRST TIME INSTALLATION
• Please read instructions carefully before installation.
• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.
• Clean your roof racks prior to fitting the Prorack S-Wing Awning & Universal Kit.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL PRORACK RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED
TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND
COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE
FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR
TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED
WITH YOUR PRORACK PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL
OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT
INSTALLED BY A PROFESSIONAL INSTALLER SUCH AS A ROOF RACK SPECIALIST.

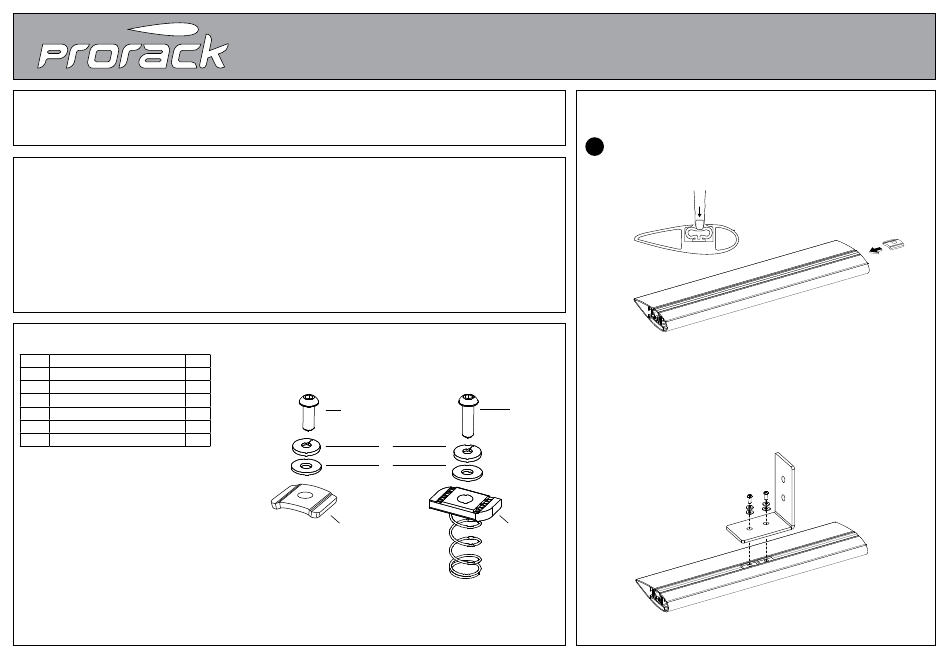

KIT CONTENTS
Item Component Qty
1 M6 x 16mm Capscrew
2 M6 x 20mm Capscrew
3 M6 Spring Washer
4 M6 Washer
5 M6 Sliding Nut
6 M6 Spring Nut
09-13-554 Rev 1
PR3104 AWNING & UNIVERSAL KIT INSTRUCTIONS
4
4
4
1
4
4
4
5
2
3
4
6
INSTALLATION WITH PRORACK S-WING AND INTERNATIONAL
T-SLOT CROSSBARS
Push down rubber infill and slide M6 sliding nut into each
1
crossbar channel. Position where you want the accessory to be.
Using two shorter M6 x 16mm capscrews, two M6 spring
washers and two M6 washers, assemble awning bracket or
other accessory mount as shown.
Page 1 of 3
