Summary of Contents for Prorack K671

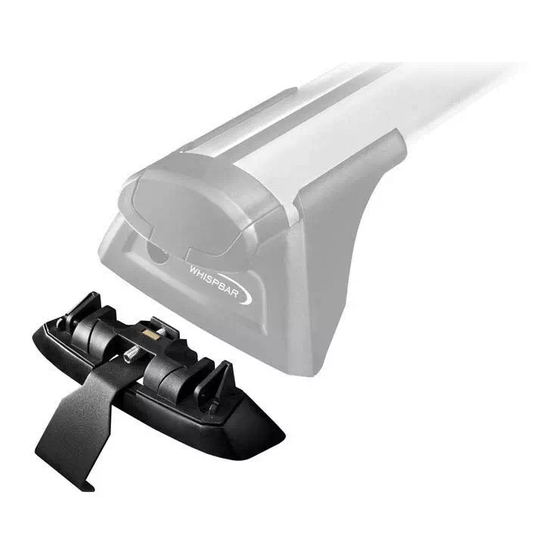

- Page 1 K671 Fitting Kit Fitting Instructions for Basic Carrier CAUTION: Professional installation recommended Revision No: 6D...

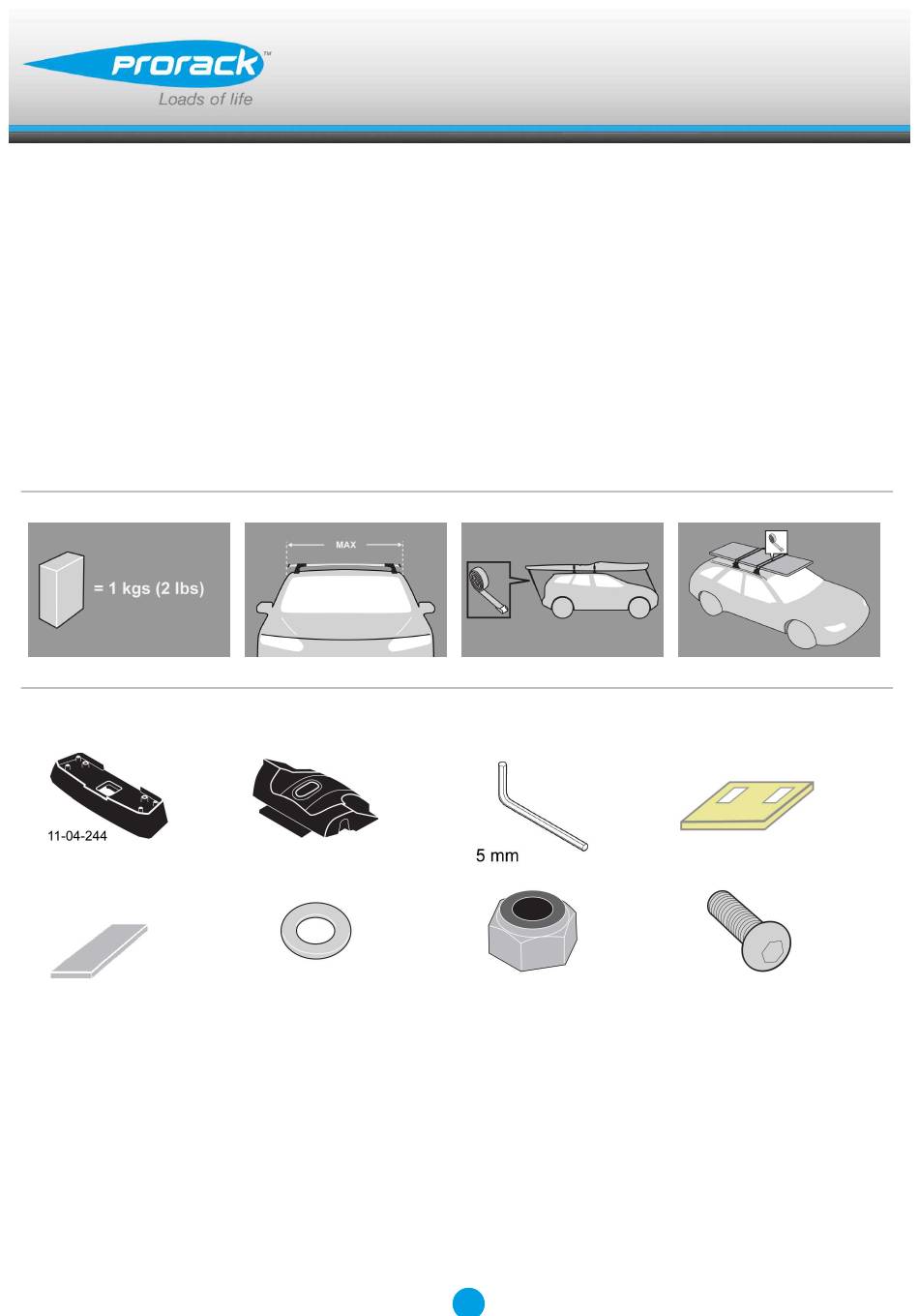

- Page 2 Fitting Kit K671...
- Page 3 Fitting Kit K671 MAX kgs (lbs) Chevrolet Colorado Crew Cab LT/LTZ, 4dr Truck 13-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Colorado Crew Cab LT/LTZ, 4dr Ute 13-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Holden Colorado Crew Cab LT/LTZ, 4dr Ute 12-+...
-
Page 4: First Time Installation
Fitting Kit K671 CAUTION: Professional installation recommended. First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K671 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K671 Attaches to factory-fitted mounting points Please check the rear of this manual for information relating specifically to your vehicle. Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight.
- Page 7 Fitting Kit K671 Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Fitment There are 4 concealed mounting points hidden by the vehicles rubber insert on the roof. Measure from the front of the rubber insert and make a mark at 355mm and 1245mm.
- Page 8 Fitting Kit K671 Now cut the rubber insert at the 2 lines you marked in the earlier instruction. Once cut you should end up with 4 x 50mm pieces of the rubber insert. Note: Be careful of sharp edges after cutting the rubber insert.
- Page 9 Fitting Kit K671 Remove sealant as shown. Apply protective strip as shown. Trim if required. Assemble as shown. A = 8mm bolt B = Spring washer C = Flat washer D = Rubber seal E = Protective strip Place rubber seal over bolt thread as shown.
- Page 10 Fitting Kit K671 Select coach bolt and insert through metal clamp slot. Using the 10mm (3/8") spanner supplied with the crossbars, tighten the nut to 5Nm (3.7 ft lb) hand tight. A = Coach bolt B = Washer C = Nut Assemble as shown.
- Page 11 Fitting Kit K671 Place crossbar foot over clamp. Repeat for all four positions. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs.
- Page 12 Fitting Kit K671 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K671 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K671 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 15 Fitting Kit K671 Colorado, 4dr Truck 13-+ (US) -295mm 595mm 905mm 885mm -11 -5/8ths" 23 7/16ths" 35 5/8ths" 34 13/16ths" Colorado, 4dr Ute 12-+ (NZ) -295mm 595mm 905mm 885mm -11 -5/8ths" 23 7/16ths" 35 5/8ths" 34 13/16ths" Colorado, 4dr Ute 12-+ (AU)
-
Page 16: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 17 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
