ELTEX WOP-2L User Manual

Firmware version 1.0.2
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual


        Wireless access point
    WOP-2L
        User manual
        Firmware version 1.0.2
IP address: 192.168.1.10
Username: admin
Password: password

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOP-2L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELTEX WOP-2L

Summary of Contents for ELTEX WOP-2L

  • Page 1                      Wireless access point     WOP-2L         User manual         Firmware version 1.0.2 IP address: 192.168.1.10 Username: admin Password: password...

  • Page 2: Table Of Contents

    WOP-2L. User manual Contents Introduction ..............................5 Annotation ..............................5 Symbols ............................... 5 Device description ............................6 Purpose ............................... 6 Device specification............................ 6 The device technical parameters....................... 7 Design ................................9 Light indication............................10 Reset to the default settings ........................11 Delivery package ............................11 Rules and recommendations for device installation .................
  • Page 3 WOP-2L. User manual The 'VAP' menu ............................35 5.6.1 The 'Summary' submenu ........................35 5.6.2 The 'VAP' submenu ..........................36 The 'Network Settings' menu ........................39 5.7.1 The 'System Configuration' submenu....................39 5.7.2 The 'Access' submenu.......................... 40 The 'External Services' menu........................42 5.8.1 The 'Captive Portal' submenu.......................
  • Page 4 WOP-2L. User manual 6.6.2 Device info............................. 61 6.6.3 Network information..........................62 6.6.4 Wireless interfaces ..........................63 6.6.5 Event logging............................63 6.6.6 Spectrum Analyzer..........................64   4...

  • Page 5: Introduction

    WOP-2L device is a Wi-Fi access point. The device enclosed into hermetic case which allows to use the access point outdoor in different climatic conditions – at temperatures from -45 to +65 °C This manual specifies intended purpose, main technical parameters, design, safe operation rules and installation and configuration recommendations for WOP-2L.

  • Page 6: Device Description

    2 Device description 2.1 Purpose WOP-2L wireless access point (hereinafter the device) is designed for provision of users' access to high-speed safe network. The device provides high-speed and safe wireless network combining a lot of opportunities and services that are necessary for comfortable users' access to operator services in crowded areas.

  • Page 7: The Device Technical Parameters

    RADIUS server (WPA Enterprise); • WPA/WPA2 data encryption; • Support for Captive Portal. The WOP-2L application diagram is shown in the figure below. 2.3 The device technical parameters Main specifications WAN interface parameters Number of ports 1 ...
  • Page 8   WOP-2L. User manual Operating channels 802.11b/g/n: 1–13 (2402–2482 MHz) 802.11a/n/ac: • 36–64 (5170–5320 MHz) • 100–144 (5490–5720 MHz) • 149-165 (5745–5835 MHz) Data rate 802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 300 Mbps 802.11ac: up to 867 Mbps...

  • Page 9: Design

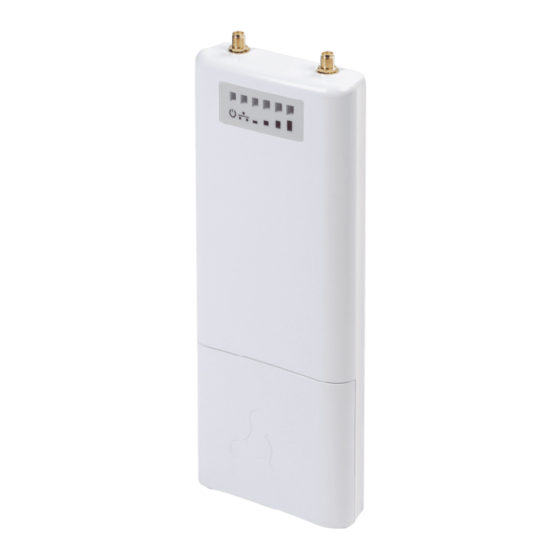

      WOP-2L. User manual 2.4 Design WOP-2L housed in a plastic case, industrial version. The size of the device: 80x232.5x47 mm. The design of WOP-2L is shown below. WOP-2L design Port of 10/100/1000Base-T (Ethernet) for local network connection and power supply via PoE and the button for resetting to factory settings (F) are located on the bottom panel of the device.

  • Page 10: Light Indication

      WOP-2L. User manual 2.5 Light indication The layout of WOP-2L indication panel is shown in the figure below. WOP-2L indication panel Device status LED indication  LED status Description   Power – device power and solid green the device power supply is enabled,...

  • Page 11: Reset To The Default Settings

      WOP-2L. User manual 2.6 Reset to the default settings You can reset the device configuration using the «F» button on the device.  When the device is loaded, press and hold the «F» button located on the bottom panel (approximately 10–15 seconds) until «Power» indicator is flashing orange;...

  • Page 12: Rules And Recommendations For Device Installation

    3.3 Frequency bands and channels in the range of 5 GHz for Wi-Fi Data transmission in the 5 GHz band is used for IEEE 802.11a/n/ac standards. WOP-2L supports frequency channels in the range of 5 GHz with the bandwidth of 20, 40 and 80 MHz.

  • Page 13: Calculating The Number Of Required Access Points

      WOP-2L. User manual 3.4 Calculating the number of required access points Attenuation values Material Change of signal level, dB  2.4 GHz 5 GHz Organic glass -0,3 -0,9 Brick -4,5 -14,6 Glass -0,5 -1,7 Plaster slab -0,5 -0,8 Wood laminated plastic...
  • Page 14   WOP-2L. User manual Similarly, the procedure of channel allocation is recommended to save for access point allocation between floors, see Figure 5 Figure 5 – Scheme of channel allocation between neighboring access points that are located between floors When width of used channel is 40 MHz there is no non-overlapping channels in frequency range of 2.4 GHz. In such cases, you should select channels maximally separated from each other.

  • Page 15: The Device Installation

      WOP-2L. User manual 4 The device installation 1. Attach the bracket to the device with the screws provided, as shown in the figure below. 2. Install the device on communications mast/pole pointing Ethernet port down as it is shown on the figure below.
  • Page 16 6. Align the antenna position so that the subscriber devices fall within the coverage area of the installed antenna. 7.Connect the Ethernet cable outgoing form WOP-2L to the injector PoE port or the switch port (IEEE 802.3at-2009). 8. If you using PoE injector connect it to 220 V power supply network using the cable.

  • Page 17: Device Management Via The Web Interface

      WOP-2L. User manual 5 Device management via the WEB interface 5.1 Getting started In order to start the operation, you should connect to the device via WAN interface using a web browser: 1. Open a web browser, for example, Firefox, Opera, Chrome.

  • Page 18: Applying Configuration And Discarding Changes

      WOP-2L. User manual 5. If necessary, you can switch the information display language. Russian and English languages are available for WEB interface. 5.2 Applying configuration and discarding changes Applying configuration  Clicking on the  button starts the process of saving the configuration to the device flash memory and applying the new settings.

  • Page 19: Web Interface Basic Elements

      WOP-2L. User manual 5.3 WEB interface basic elements Navigation elements of the WEB interface are shown on the figure below User interface window is divided into five general areas: Menu tabs categorize the submenu tabs: Monitoring, Radio, VAP, Network settings, External Services, System.

  • Page 20: The 'Monitoring' Menu

    • MAC address – MAC address of the connected device; • Interface – interface of WOP-2L communication with the connected device; • Link Capacity – parameter that reflects the effectiveness of the use of a modulation access point on the transmission. It is calculated based on the number of packets transmitted on each modulation to the client, and the reduction factors.

  • Page 21: The 'Traffic Statistics' Submenu

      WOP-2L. User manual • Tx BW – transmission bandwidth, MHz; • Rx BW – reception bandwidth, MHz; • Uptime – Wi-Fi client connection uptime. To display more detailed information on a particular client, select it from the list. A detailed description includes the following options: ...
  • Page 22   WOP-2L. User manual 'Transmit' table description: • Interface – name of the interface; • Total packets – number of successfully sent packets; • Total bytes – number of successfully sent bytes; • Total drop – number of rejected packets; • Errors – number of errors.

  • Page 23: The 'Scan Environment' Submenu

      WOP-2L. User manual 5.4.3 The 'Scan Environment' submenu In the 'Scan Environment' submenu, scanning of the surrounding radio is carried out and detection of neighboring access points. After clicking on the 'Scan' button, the process will be launched. After the scan is completed, a list of detected access points and information about them will appear: •...

  • Page 24: The 'Events' Submenu

      WOP-2L. User manual 5.4.4 The 'Events' submenu In this section, you can view a list of real-time informational messages which contains the following information: • Date and Time – time when event was generated; • Type – category and importance level of the event;...

  • Page 25: The 'Network Information' Submenu

      WOP-2L. User manual 5.4.5 The 'Network Information' submenu In the 'Network Information' submenu you can view common network settings of the device. WAN Status: • Interface – name of the bridge interface; • Protocol – a protocol which is used for access to WAN;...

  • Page 26: The 'Device Information' Submenu

    Such 'internal routes' exist in the routing buffer only; • ! – means that datagrams sent to this address will be rejected by the system. 5.4.6 The 'Device Information' submenu The 'Device Information' submenu displays main WOP-2L parameters. • Product – device model name;...

  • Page 27: The 'Radio' Menu

      WOP-2L. User manual • Hardware Version – device hardware version; • Factory MAC Address – device WAN interface MAC address, setted by manufacturer; • Serial Number – device serial number, setted by manufacturer; • Firmware Version – device firmware version;...
  • Page 28   WOP-2L. User manual • Primary Channel – the parameter can only be changed if the bandwidth of a statically specified channel is equal to 40 MHz. The 40 MHz channel can be considered as consisting of two 20 MHz channels, which border in the frequency range.
  • Page 29   WOP-2L. User manual • OBSS Coexistence – automatic channel bandwidth reduction when the air is loaded. When the flag is set, the mode is enabled; • Short Guard interval – support for Short Guard interval. Access point transmits data using 400 ns Guard interval (instead of 800 ns) to clients which also support Short GI;...
  • Page 30   WOP-2L. User manual The following functions are available for quality assurance configuration: • AP EDCA parameters – access point settings table (traffic is transmitted from the access point to the client): • Queue – predefined queues for various kinds of traffic: •...

  • Page 31: The 'Radio 5 Ghz' Submenu

      WOP-2L. User manual 5.5.2 The 'Radio 5 GHz' submenu In the 'Radio 5 GHz' submenu you can configure the main parameters of the radio interface of the device operating in the 5 GHz band. • Mode – select interface operation mode: •...
  • Page 32   WOP-2L. User manual  If the 'Use Limit channels' list contains a channel that is not available for selection, it will be marked in grey. In order for the new configuration to be applied to an access point, only available (blue highlighted) channels must be specified in the 'Use Limit channels' list.
  • Page 33   WOP-2L. User manual • STBC – Soace-Time Block Coding method dedicated to improve data transmission reliability. The field is available only if the selected mode of operation of the radio interface includes 802.11n. When checked, the device transmits one data flow through several antennas. When unchecked, the device does not transmit one data flow through several antennas;...

  • Page 34: The "Advanced" Submenu

      WOP-2L. User manual • Data 0 (Voice) – high priority queue, minimal delay. In this queue, time sensitive data is automatically processed, such as: VoIP, streaming video (802.1p: cs6, cs7 priorities). • AIFS – Arbitration Inter-Frame Spacing, defines the waiting time of data frames, measured in slots, takes values (1-255);...

  • Page 35: The 'Vap' Menu

      WOP-2L. User manual 5.6 The 'VAP' menu In the 'VAP' menu, you can configure virtual Wi-Fi access points (VAP). 5.6.1 The 'Summary' submenu The 'Summary' submenu displays the settings of all VAPs on Radio 2.4 GHz and Radio 5 GHz radio interfaces. You can see the settings of each virtual access point in sections VAP0..3.

  • Page 36: The 'Vap' Submenu

      WOP-2L. User manual 5.6.2 The 'VAP' submenu Common settings • Enabled – when checked, the virtual access point is enabled, otherwise it is disabled; • VLAN ID – VLAN number from which the tag will be removed when transmitting Wi-Fi traffic to clients connected to this VAP.
  • Page 37   WOP-2L. User manual • General Mode – when the flag is set, transmission of untagged traffic jointly with tagged traffic is allowed (available when Trunk VLAN mode is enabled); • General VLAN ID – a tag will be removed from the specified VLAN ID and the traffic of this VLAN will pass to the client without a tag.
  • Page 38   WOP-2L. User manual Captive Portal Under security modes: Off, WPA, WPA2, WPA/WPA2 a portal authorization setting is available on the VAP. • Enable – when checked, authorization of users in the network will be performed via the virtual portal;...

  • Page 39: The 'Network Settings' Menu

      WOP-2L. User manual Shapers • Show – display configuration field; • VAP Limit Down – restriction of bandwidth in the direction from the access point to the clients (in total) connected to this VAP, Kbps; • VAP Limit Up – restriction of bandwidth in the direction from the clients (in total) connected to this VAP, to the access point, Kbps;...

  • Page 40: The 'Access' Submenu

      WOP-2L. User manual • Static – operation mode where IP address and all the necessary parameters for WAN interface are assigned statically. If 'Static' is selected, the following parameters will be available to set: • Static IP – device WAN interface IP address in the provider network;...
  • Page 41 To enable access to the device via NETCONF, check the box next to 'NETCONF'. WOP-2L software allows monitoring status of the device and it's sensors via SNMP. In the SNMP submenu, you can configure settings of SNMP agent. The device supports SNMPv1 and SNMPv2 protocol version.

  • Page 42: The 'External Services' Menu

      WOP-2L. User manual 5.8 The 'External Services' menu 5.8.1 The 'Captive Portal' submenu The 'Captive Portal' submenu is designed to enable and configure the APB service at the access point. The APB service is used to provide portal roaming of clients between access points connected to the service.

  • Page 43: The 'System' Menu

      WOP-2L. User manual 5.9 The 'System' menu In the 'System' menu you can configure system, time, device access via dofferent protocols, change password and update device firmware. 5.9.1 The 'Device Firmware Upgrade' submenu The 'Device Firmware Upgrade' submenu is intended for upgrading the device's firmware.

  • Page 44: The 'Configuration' Submenu

      WOP-2L. User manual 5.9.2 The 'Configuration' submenu In the 'Configuration' submenu you can save and update current configuration. Backup Configuration To save current device configuration to local computer click on the 'Download' button. Restore Configuration To download the configuration file saved on the local computer, use the Restore Configuration item. To update the device configuration click the 'Browse' button, specify a file (in .tar.gz format) and click the 'Upload' button.

  • Page 45: The 'Password' Submenu

      WOP-2L. User manual 5.9.4 The 'Password' submenu When logging in via WEB interface administrator (default password: password) has the full access to the device: read/write any settings, full device status monitoring. To change the password, enter the new password first in the 'Password' field, then in the 'Confirm Password' field and click the 'Apply' button to save the new password.

  • Page 46: The 'Date And Time' Submenu

      WOP-2L. User manual 5.9.6 The 'Date and Time' submenu In the 'Date and Time' submenu, you can set the time manually or using the time synchronization protocol (NTP). Manual • Date and Time device – date and time set on the device. Click on the 'Edit' button if the correction is necessary: •...
  • Page 47   WOP-2L. User manual NTP server • Date and Time device – date and time set on the device; • NTP Server – time synchronization server IP address/domain name. You can specify an address or select from an existing list; •...

  • Page 48: Managing The Device Using The Command Line

    To go back to the previous configuration section, enter the exit command. 6.1 Connection to the device By default, WOP-2L is configured to receive the address via DHCP. If this does not happen, you can connect to the device using the factory IP address.

  • Page 49: Management Vlan Configuration

      WOP-2L. User manual Configuration of reception of the network parameters via DHCP WOP-2L(root):/# configure WOP-2L(config):/# interface WOP-2L(config):/interface# br0 WOP-2L(config):/interface/br0# common WOP-2L(config):/interface/br0/common# protocol dhcp WOP-2L(config):/interface/br0/common# save (Save changes) 6.2.1 Management VLAN configuration The access point supports multiple VLAN control modes: •...

  • Page 50: Virtual Wi-Fi Access Points (Vap) Configuration

      WOP-2L. User manual  After the access point receives the address in the Managment VLAN network, it is necessary to enter the device at the new address and save the changes made with the save command, otherwise, when the access point is rebooted, all the settings from it will be removed and the dot will no longer be available from the management network.

  • Page 51: Configuration Of Vap Without Encryption

      WOP-2L. User manual Table 8 – Commands for configuration of security mode on VAP Security mode Command to set the security mode Without password security-mode off security-mode WPA WPA2 security-mode WPA2 WPA/WPA2 security-mode WPA_WPA2 WPA-Enterprise security-mode WPA_1X WPA2-Enterprise security-mode WPA2_1X...

  • Page 52: Configuration Of Vap With Enterprise Authorization

      WOP-2L. User manual 6.3.3 Configuration of VAP with Enterprise authorization Creation of VAP with WPA2-Enterprise security mode with periodic accounting to RADIUS server WOP-2L(root):/# configure WOP-2L(config):/# interface WOP-2L(config):/interface# wlan1-va0 WOP-2L(config):/interface/wlan1-va0# common WOP-2L(config):/interface/wlan1-va0/common# enabled true (Enable VAP) WOP-2L(config):/interface/wlan1-va0/common# exit WOP-2L(config):/interface/wlan1-va0# vap...

  • Page 53: Configuration Of Vap With Captive Portal

      WOP-2L. User manual 6.3.4 Configuration of VAP with Captive Portal Commands to configure portal authorization by sending your account to the Radius server WOP-2L(root):/# configure WOP-2L(config):/# interface WOP-2L(config):/interface# wlan1-va0   WOP-2L(config):/interface/wlan1-va0# common WOP-2L(config):/interface/wlan1-va0/common# enabled true  WOP-2L(config):/interface/wlan1-va0/common# exit WOP-2L(config):/interface/wlan1-va0# vap WOP-2L(config):/interface/wlan1-va0/vap# vlan-id X (where X –...
  • Page 54   WOP-2L. User manual Assignment of VLAN-ID to VAP WOP-2L(config):/interface/wlan1-va0/vap# vlan-id X (where X - VLAN-ID number on VAP) Enabling VLAN trunk on VAP WOP-2L(config):/interface/wlan1-va0/vap# vlan-trunk true (Enabling VLAN trunk on VAP. To disable, enter false) Enabling General VLAN on VAP WOP-2L(config):/interface/wlan1-va0/vap# general-vlan-mode true (Enabling General VLAN on SSID.

  • Page 55: Radio Configuration

      WOP-2L. User manual 6.4 Radio configuration In the Radio section, automatic selection of the working channel is used by default. To set the channel manually and change the power, use the following commands: Change of opeartion channel and radio interface power...
  • Page 56   WOP-2L. User manual Enabling STBC WOP-2L(config):/interface/wlan0/wlan/radio-2g# stbc true (Enabling the Spatial-Time Block Coding (STBC) method, aimed at improving the reliability of data transmission. To disable, enter false) Enabling aggregation WOP-2L(config):/interface/wlan0/wlan/radio-2g# aggregation true (Enabling aggregation on Radio - support for AMPDU/AMSDU. To disable, enter false) Enabling the short preamble WOP-2L(config):/interface/wlan0/wlan/radio-2g# short-preamble true...

  • Page 57: System Settings

    Parameters configuration for queues be, vi, vo is similar to parameters configuration for queue bk. 6.5 System settings 6.5.1 Device firmware update Device firmware update via tftp WOP-2L(root):/# firmware upload tftp <tftp server ip address> <Firmware image name> (Example: firmware upload tftp 192.168.1.15 WOP-2L-1.0.2.3.tar.gz)  WOP-2L(root):/# firmware upgrade Device firmware update via http WOP-2L(root):/# firmware upload http <URL to download Firmware image>...

  • Page 58: Device Configuration Management

    WOP-2L(root):/# manage-config download tftp <tftp server ip address> (Example: manage-config download tftp 192.168.1.15) Download configuration file from tftp server to the device WOP-2L(root):/# manage-config upload tftp <tftp server ip address> <Configuration file name> (Example:  manage-config upload tftp 192.168.1.15 config.json) WOP-2L(root):/# manage-config apply (Apply configuration to the access point) 6.5.3 Device reboot...

  • Page 59: Setting The Date And Time

      WOP-2L. User manual 6.5.4 Setting the date and time The WOP-2L Access Point supports setting the date and time both manually and by synchronizing with the NTP server. Commands to configure NTP server time synchronization WOP-2L(root):/# configure WOP-2L(config):/# date-time...

  • Page 60: Monitoring

      WOP-2L. User manual 6.6 Monitoring 6.6.1 Wi-Fi Clients WOP-2L(root):/# monitoring clients index interface | wlan0-va0 hw-addr | e4:0e:ee:be:ee:9b ip-addr 192.168.1.122 hostname | HUAWEI_P20 rx-retry-count tx-fails tx-period-retry tx-retry-count rssi-1 rssi-2 snr-1 snr-2 tx-rate | MCS10 NO SGI rx-rate | MCS15 NO SGI...

  • Page 61: Device Info

      WOP-2L. User manual mcs9 mcs10 mcs11 10%| mcs12 mcs14 27%| mcs15 15%| --------------------------------------------------     Multicast groups: ------------------------------------- ------------------------------------- 6.6.2 Device info WOP-2L(root):/# monitoring information system-time: 10:23:52 23.01.2020 uptime: 01:08:52 software-version: 1.0.2.3 secondary-software-version: boot-version: 1.0.2.3 memory-usage: memory-free: memory-used: memory-total: cpu: 4.03...

  • Page 62: Network Information

      WOP-2L. User manual 6.6.3 Network information WOP-2L(root):/# monitoring wan-status interface: br0 protocol: dhcp ip-address: 192.168.1.15 mac: e8:28:c1:xx:xx:xx mask: 255.255.255.0 gateway: 192.168.1.1 DNS-1: 192.168.1.100 DNS-2: rx-bytes: 4864149 rx-packets: 13751 tx-bytes: 2462399 tx-packets: 20753 WOP-2L(root):/# monitoring ethernet link: up speed: 1000...

  • Page 63: Wireless Interfaces

    6.6.5 Event logging WOP-2L(root):/# monitoring events 23 00:00:07 WOP-2L daemon.info syslogd[925]: started: BusyBox v1.21.1   23 00:00:09 WOP-2L daemon.info configd[955]: The AP startup configuration was loaded successfully.   1 03:00:14 WOP-2L daemon.info networkd[987]: Networkd started   1 03:01:17 WOP-2L daemon.info networkd[987]: DHCP-client: Interface br0 obtained lease on 192.168.1.15.

  • Page 64: Spectrum Analyzer

      WOP-2L. User manual 6.6.6 Spectrum Analyzer The spectrum analyzer provides information on channel utilization in the 2.4 and 5 GHz bands. The result is displayed as a percentage. WOP-2L(root):/# monitoring spectrum-analyzer Channel| CCA 132| 136| 140| 144| 149| 153|...
