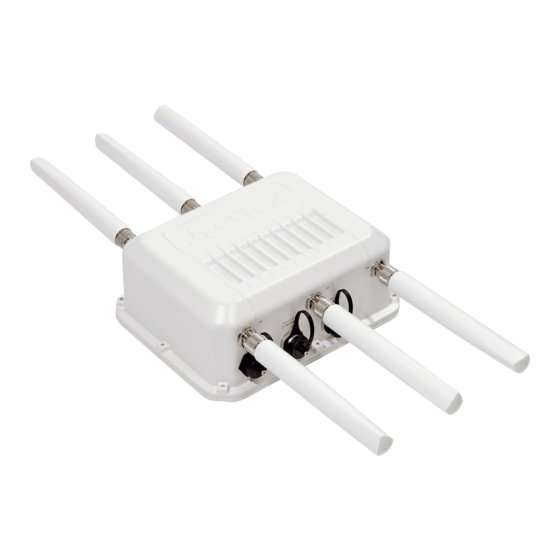

        Wireless access point
    WOP-12ac-LR
        Quick guide for FBWA configuration via web interface
        Firmware version 1.19.3
IP address: 192.168.1.10
Username: admin
Password: password

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOP-12ac-LR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELTEX WOP-12ac-LR

Summary of Contents for ELTEX WOP-12ac-LR

  • Page 1                      Wireless access point     WOP-12ac-LR         Quick guide for FBWA configuration via web interface         Firmware version 1.19.3 IP address: 192.168.1.10 Username: admin Password: password...

  • Page 2: Table Of Contents

    WOP-12ac-LR. Quick guide for FBWA configuration via web interface Contents Annotation ..............................4 WOP-12ac-LR configuration .......................... 6 Connecting an access point to PC......................6 Configuring computer network interface settings..................6 Connection to the WOP-12ac-LR web interface..................6 Firmware update: ............................6 Network settings: ............................
  • Page 3 WOP-12ac-LR. Quick guide for FBWA configuration via web interface   3...

  • Page 4: Annotation

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 1 Annotation This manual specifies the following: • WOP-12ac-LR configuration via web interface; • WB-1P-LR configuration via web interface; • RG-4402G configuration via web interface. The manual gives an example of device configuration without using a soft controller.
  • Page 5   WOP-12ac-LR. Quick guide for FBWA configuration via web interface On the subscriber side of the client Wi-Fi equipment, traffic is received and terminated on a router (RG-4402G). In his turn, the subscriber can connect his equipment to the LAN port of the router to receive the «Internet» service, he can connect the telephone to the FXS port of the router to receive the «VoIP»...

  • Page 6: Wop-12Ac-Lr Configuration

    2 WOP-12ac-LR configuration 2.1 Connecting an access point to PC PoE technology is used to power the WOP-12ac-LR, allowing it to transfer power through a UTP cable. A PoE injector is used to connect. Connect the access point to the «Data & Power» connector of the injector, and the computer to the «Data»...

  • Page 7: Network Settings

    In our case, a static IP address is used on the control interface. To assign an IP address to access points manually, select «Static IP». Specify the IP address of WOP-12ac-LR (in the example, it is 192.168.1.10) in the...

  • Page 8: Radio Interface Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface «Static IP Address» field. Enter the address of the default gateway in the «Default Gateway» field. Changing the network mask is optional. Click «Update».  Before changing the settings, make sure that the managing computer has the access to the access point.
  • Page 9   WOP-12ac-LR. Quick guide for FBWA configuration via web interface Click «Update». In the «Manage» menu, open the «Radio» tab and perform the following: To go to the advanced settings, click «+» opposite «Advanced settings»:...
  • Page 10   WOP-12ac-LR. Quick guide for FBWA configuration via web interface • Radio – selects wireless Wi-Fi interface; • Status – configurable Wi-Fi interface status: • On – when checked, the Wi-Fi interface is enabled; • Off – when checked, the Wi-Fi interface is disabled.

  • Page 11: Vap Settings

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface Click «Update». 2.7 VAP settings On each wireless interface, you may configure up to 8 virtual access points. Each access point may have individual name of wireless network (SSID) and type of authentication/authorization. To configure VAP, go to the «Manage»...

  • Page 12: Enable Wmf

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface • VAP – sequence number of the virtual access point; • Enabled – when checked, the virtual access point will be enabled, otherwise it is disabled; • VLAN ID – VLAN number to which the virtual access point is associated;...

  • Page 13: Monitoring Main Parameters Of Wireless Network

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface • VAP – number of the virtual access point; • Enabled – when checked, the virtual access point will be enabled, otherwise it is disabled; • WMF-Enable – when checked, the function of broadcasting multicast packets to unicast packets on a virtual access point will be enabled, otherwise it will be turned off.
  • Page 14   WOP-12ac-LR. Quick guide for FBWA configuration via web interface...
  • Page 15   WOP-12ac-LR. Quick guide for FBWA configuration via web interface The list of third-party access points in WOP-12ac-LR area with data on wireless channel used and transmitted signal level is presented in «Status» menu, «Rogue AP Detection» tab:...
  • Page 16   WOP-12ac-LR. Quick guide for FBWA configuration via web interface The list of events is given in the «Status» menu, «Events» tab:...
  • Page 17   WOP-12ac-LR. Quick guide for FBWA configuration via web interface To obtain more detailed information, read the full user manual.

  • Page 18: Wb-1P-Lr Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 3 WB-1P-LR configuration 3.1 Connecting the device to PC PoE technology is used to power the device, allowing it to transfer power through a UTP cable. A PoE injector is used to connect.
  • Page 19   WOP-12ac-LR. Quick guide for FBWA configuration via web interface Go to the «Update firmware» tab. Preliminary download the firmware file from http://eltex-co.com/support/ downloads/ and save it on your computer. Firmware update for WB-1P-LR rev. M1: Firmware update for WB-1P-LR rev.B: To do this, click the «Select file»...

  • Page 20: Configure Wi-Fi Connection To The Base Station

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface • Make active – a button that allows you to make a backup version of the firmware active, this will require a reboot of the device. The active firmware version will not be set as a backup.
  • Page 21   WOP-12ac-LR. Quick guide for FBWA configuration via web interface 3. In the «Operation mode» field, select the operating mode of the «Bridge» device. in the «Protocol» field select protocol for connection of the device via Wi-Fi interface to service provider network: Static or DHCP.

  • Page 22: Access The Device From An External Network

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface • In the «WPA Key» field, enter the key value «Eltex123»; • Select the «Bridge» operation mode; • In the «Protocol» field, select «Static»; • In the «IP address» field specify the IP address: 192.168.100.4;...

  • Page 23: Rg-4402-G Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 4 RG-4402-G configuration 4.1 Connection to RG-4402-G web interface Turn on the computer to obtain network settings via DHCP and connect with a patch cord to one of the RG-4402G LAN ports.

  • Page 24: Internet" Service Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 3. To start the update process, you must click the «Upload file» button. The process may take several minutes (its current status will be shown on the page). The device will be automatically rebooted when the update is completed.

  • Page 25: Voip Service Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface • PPPoE – operation mode when PPP session is established on WAN interface; • PPTP – operation mode when the Internet access is established via a tunnel, using PPTP. 5. Set the flag «Use VLAN in external network». In the «VLAN ID» field specify the VLAN number used for the Internet service.

  • Page 26: For Voip, The Separate Vlan Is Used

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 4. To apply the new configuration, click the «Apply» button. 4.4.2 For VoIP, the separate VLAN is used Go to the «VoIP» menu, to the «Network settings» tab. Remove the flag in the «Use Internet settings» field.

  • Page 27: Line Parameters Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 4.5 Line parameters configuration Go to the «Line configuration» tab. Select the first line. Set the flag in the «Enable» field. Then, fill in the following parameters: • Profile – select SIP profile from the list of available profiles. To configure profiles, use the «VoIP» ->...

  • Page 28: Profile Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 4.6 Profile configuration Go to the «Profiles» tab. Select the profile that was used in the line settings. Specify the SIP server network address in the field «SIP proxy server». Set the flag in the «Registration»...

  • Page 29: Stb Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 7. To apply the new configuration, click the «Apply» button.  To configure the «IPTV» service in accordance with the example above, the following settings must be performed: Set the flag in the «Use VLAN» field;...

  • Page 30: Local Interfaces Configuration

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface Set the flag in the «Use VLAN» field; In the «VLAN ID» field set the value 13. 4.8 Local interfaces configuration To bind local interfaces to the STB service, go to the «Local Interfaces» menu on the «Functional Assignment»...

  • Page 31: Connection Monitoring

      WOP-12ac-LR. Quick guide for FBWA configuration via web interface 5. To apply the new configuration, click the «Apply» button. To configure the management VLAN in accordance with the example described in point 1, the following settings must be performed: •...
  • Page 32 29 Okruzhnaya Str., Novosibirsk, Russian Federation, 630020 E-mail: techsupp@eltex-co.ru   You are welcome to visit ELTEX official website to get the relevant technical documentation and software for ELTEX products or consult a Service Center Specialist on our technical forum.   https://eltex-co.com/ https://eltex-co.com/support/downloads/...
