- Page 1 Wireless access point WEP-12ac User manual Firmware version 1.16.0 IP address: 192.168.1.10 Username: admin Password: password...
-
Page 2: Table Of Contents
Order for wall-mounting brackets ....................14 3.4.2 Installing to false ceiling....................... 15 3.4.3 Removing the device from the bracket..................15 Application A. WEP-12ac antennas patterns ..................16 Application B. Pin array of the device connectors................17 The list of changes ..........................18 2... - Page 3 WEP-12ac user manual...
-
Page 4: Introduction

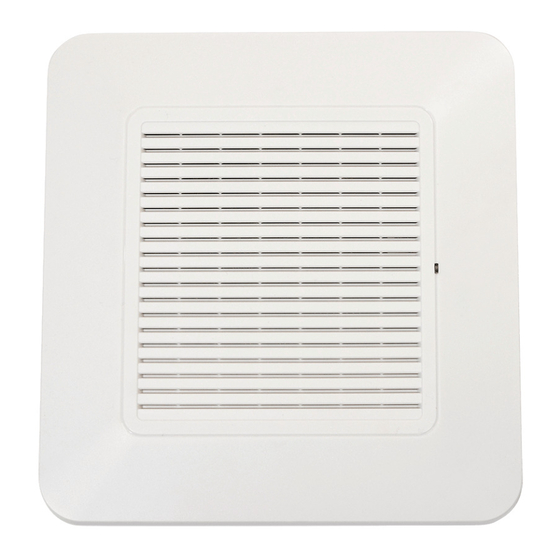

WEP-12ac device is a Wi-Fi access point of Enterprise class. The device is dedicated to be installed inside buildings as an access point and to create a seamless wireless network using several identical access points on a large area. -
Page 5: Device Description
WEP-12ac wireless access point (hereinafter the device) is designed for provision of users' access to high-speed safe network. The device is dedicated to create L2 wireless networks interfacing with a wired network. WEP-12ac is connected to a wired network via 10/100/1000M Ethernet interface and arrange high-speed access to the Internet for devices supporting Wi-Fi technology at 2.4 and 5 GHz. - Page 6 • changing WMM parameters for each radio interface. Safety • e-mail notifying on system events; • centralized authorization via RADIUS server (WPA Enterprise); • WPA/WPA2; • Captive Portal; • IPsec. The figure below shows WEP-12ac application scheme. WEP-12ac application scheme...
-
Page 7: The Device Technical Parameters
WEP-12ac user manual 2.3 The device technical parameters Table 1 – The device main technical parameters WAN Ethernet interface parameters Number of ports electrical connectors RJ-45 Data rate, Mbps 10/100/1000, auto-negotiation Standards BASE-T Wireless interface parameters Standards 802.11a/b/g/n/ac Frequency range, MHz 2412–2472 MHz, 5150–5850 MHz... -
Page 8: Design
0.3 kg 2.4 Design WEP-12ac enclosed in plastic case. 2.4.1 Device main panel The layout of WEP-12ac is shown in the figure below. WEP-12ac main panel layout Connectors and controls located on the device main panel are listed in Table 2. ... -
Page 9: Light Indication
WEP-12ac user manual Table 2 – Description of ports and controls Front panel elements Description Wi-Fi Operation indicators of corresponding Wi-Fi modules 12 V Connector for power supply Console Connector for console cable connection (RJ-45 connector) 2 ports of 10/100/1000Base-T (RJ-45 connector) GE1 port for power supply connection via... -
Page 10: Delivery Package
WEP-12ac user manual 2.7 Delivery package The delivery package includes: • WEP-12ac wireless access point; • Mounting kit; • Operating manual (supplied on a CD); • Conformity certificate; • Technical passport. -
Page 11: Installation Order
Approximate radius of coverage area of WEP-12ac with a good-quality signal in case of mounting on a ceiling in typical office: 2.4 GHz — 40–50 m, 5 GHz — 20–30 m. In case of no obstacles, the radius of the coverage area is up to 2.4 GHz — up to 100 m, 5 GHz... - Page 12 WEP-12ac user manual Table 4 – Attenuation values Material Change of signal level, dB 2.4 GHz 5 GHz Organic glass -0.3 -0.9 Brick -4.5 -14.6 Glass -0.5 -1.7 Plaster slab -0.5 -0.8 Wood laminated plastic -1.6 -1.9 Plywood -1.9...
- Page 13 WEP-12ac user manual Similarly, the procedure of channel allocation is recommended to save for access point allocation between floors, see figure below. Scheme of channel allocation between neighboring access points that are located between floors When width of used channel is 40 MHz there is no non-overlapping channels in frequency range of 2.4 GHz. In such cases, you should select channels maximally separated from each other.
-
Page 14: Installing Wep-12Ac
WEP-12ac user manual 3.4 Installing WEP-12ac The device should be attached to plain surface (wall or ceiling) in accordance with the safety instruction and recommendations listed above. The device delivery package includes required mounting kit to attach the device to plain surface. -
Page 15: Installing To False Ceiling
WEP-12ac user manual 2.1 Connect cables to corresponding connector of the device. Description of the connectors is given in sector Design. 2.2 Align channels on the device case with the bracket and shift the device downward till fixation of the latch on the top. -
Page 16: Application A. Wep-12Ac Antennas Patterns
WEP-12ac user manual 4 Application A. WEP-12ac antennas patterns 2.4 GHz 5 GHz ... -
Page 17: Application B. Pin Array Of The Device Connectors
WEP-12ac user manual 5 Application B. Pin array of the device connectors RJ-45 connector pin array The next scheme is used for twisted-pair wiring. Side А: • white orange; • orange; • white green; • blue; • white blue;... -
Page 18: The List Of Changes
WEP-12ac user manual 6 The list of changes Document version Issue Date Revisions Version 1.15 12/02/2019 Synchronization with firmware version 1.16.0 Version 1.14 30/11/2018 Synchronization with firmware version 1.15.0 Version 1.13 10/08/2018 Synchronization with firmware version 1.14.0 Version 1.12 08/05/2018 Synchronization with firmware version 1.12.2... -
Page 19: Technical Support
+7(383) 274-47-87 +7(383) 272-83-31 E-mail: techsupp@eltex-co.ru You are welcome to visit Eltex official website to get the relevant technical documentation and software, to use our knowledge base or consult a Service Centre Specialist in our technical forum. http://www.eltex-co.ru/en/ http://www.eltex-co.ru/en/support/downloads/...
