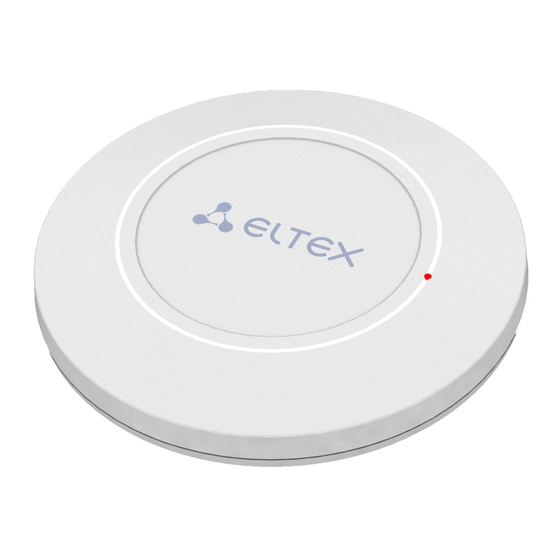

        Wireless access point
    WEP-2L
        User manual
        Firmware version 1.1.0
IP address: 192.168.1.10
Username: admin
Password: password
