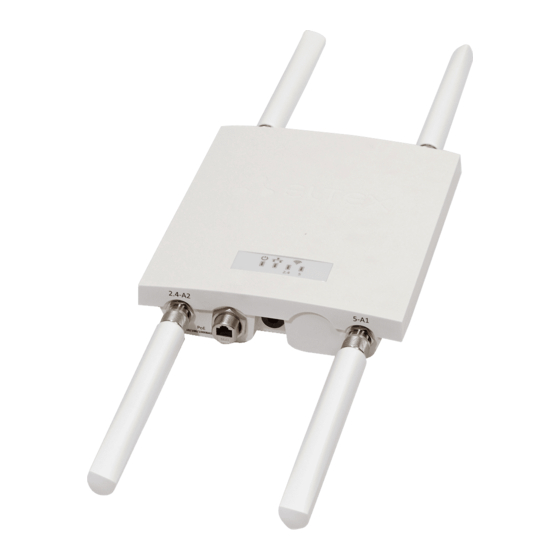

        Wireless access point
    WOP-2ac
        Quick manual
        Firmware version 1.16.0
IP address: 192.168.1.10
Username: admin
Password: password

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOP-2ac and is the answer not in the manual?

Questions and answers

Summary of Contents for ELTEX WOP-2ac

  • Page 1                      Wireless access point     WOP-2ac         Quick manual         Firmware version 1.16.0 IP address: 192.168.1.10 Username: admin Password: password...
  • Page 2: Table Of Contents

    WOP-2ac quick manual Contents Annotation ............................... 3 Connecting the web interface ........................ 4 Configuration of WOP-2ac network parameters................... 5 WOP-2ac firmware update ........................6 SNMP service configuration ........................7 Wireless interfaces configuration......................8 Virtual access points configuration..................... 10 Monitoring main parameters of wireless network................12 Cluster operation mode ........................
  • Page 3: Annotation

      WOP-2ac quick manual 1 Annotation This manual specifies the following: • connection to WOP-2ac web interface; • configuration of WOP-2ac network parameters; • WOP-2ac firmware update; • SNMP configuration; • wireless interfaces configuration (operation mode, band); • virtual access points configuration;...
  • Page 4: Connecting The Web Interface

    2 Connecting the web interface Connection of a PC to the device might be executed as follows: • Connect network cable to PoE interface of WOP-2ac and to PoE injector (or switch). Then connect a PC to the PoE injector (or switch).
  • Page 5: Configuration Of Wop-2Ac Network Parameters

    • Connection Type – select «Static IP» to set IP addresses for access points manually. Specify the IP address of WOP-2ac (in the example, it is 192.168.15.250) in «Static IP Address» field. Enter the address of the default gateway in «Default Gateway» field. 192.168.15.1. Changing the network mask is optional. If you want the access points to obtain IP addresses via DHCP, «Connection type»...
  • Page 6: Wop-2Ac Firmware Update

      WOP-2ac quick manual 4 WOP-2ac firmware update For proper operation of WOP-2ac, it is recommended to update the firmware. You may consult the vendor on the relevance of the firmware version: Phone number: +7(383) 272-83-31                  ...
  • Page 7: Snmp Service Configuration

    • Community name for traps – set «public» . • Enabled / Host Type / Host name or IP orIPv6 Address – check one of the fields for specifying traps receiver address and enter an IP address of the device to which WOP-2ac will send traps. Click «Update».
  • Page 8: Wireless Interfaces Configuration

      WOP-2ac quick manual 6 Wireless interfaces configuration WOP-2ac has 2 radio interfaces which are capable to operate simultaneously – Radio 1 and Radio 2. Each interface is capable to operate on its frequency band in different wireless network modes. The example of...
  • Page 9   WOP-2ac quick manual Configuring Radio 1: • Radio – select value «1»; • Channel Bandwidth – set value «80MHz». • Click «Update». Configuring Radio 2: • Radio – select value «2»; • Channel Bandwidth – set value «40MHz». • Click «Update».
  • Page 10: Virtual Access Points Configuration

      WOP-2ac quick manual 7 Virtual access points configuration On each wireless interface, you may configure up to 16 virtual access points. Each access point may have individual name of wireless network (SSID) and type of authentication/authorization. According to the network scheme given in the figure 1, it is necessary to configure 2 virtual access points on Radio 1 and Radio 2.
  • Page 11   WOP-2ac quick manual When using WPA Enterprise mode, the authorization is implemented through a RADIUS server. The request on user connection to SSID is sent to a RADIUS server. The table Global RADIUS server settings specifies the followings: • RADIUS IP Address – an IP address of a RADIUS server;...
  • Page 12: Monitoring Main Parameters Of Wireless Network

    You may view the list of connected users in «Status» menu, «Client Association» tab. The list of third-party access points in WOP-2ac area with data on wireless channel used and transmitted signal level is presented in «Status» menu, «Rogue AP Detection» tab.
  • Page 13: Cluster Operation Mode

    The default name of a cluster is «default». After loading, WOP-2ac defines if there are devices located on the network with the same name as in its configuration. If the devices with these parameters are not found, WOP-2ac becomes a master of the cluster. If the devices belonging to the cluster are found, WOP-2ac starts copying the configuration of a master.
  • Page 14 • Clustering IP Version – select used IP version for management data exchange among access points in the cluster. «IPv4» is used in the example. • Cluster-Priority – set the priority of the device in the cluster. «Eltex» is used in the example; Click «Update» to save changes.
  • Page 15   WOP-2ac quick manual To enable automatic channel selection according to the data on channels used by neighbouring access points and spectral analysis of environment on third-party access points noise, switch to «Radio Resource Management» tab and click «Start» in «Channel Planner» section.
  • Page 16: Monitoring

      WOP-2ac quick manual In «Advanced» menu, perform the following configuration: • Change channels if interference is reduced by at least – select a percentage that the interference must be reduced by for the access point to change channels. «75%» is used in the example.
  • Page 17   WOP-2ac quick manual To view the statistics, select necessary value and click «Go» in «Display» section. The following parameters might be viewed: • AP Location – access point's location. The value is obtained from location description on «Basic Settings»...
  • Page 18   WOP-2ac quick manual According to this table, spectral analysis of the whole network might be carried out and there is an opportunity to estimate interference influence to each access point. It will help you to estimate better location of access points among coverage area and to define locations with exceeding level of noise.
  • Page 19: Firmware Update

      WOP-2ac quick manual The table «Proposed Channel Assignments» contains data on available channel values, which the radio interface will switch to if optimal channel selection has been launched: • IP Address – IP address of the access point in the cluster;...
  • Page 20: Firmware Update Via Web Interface

    "wop2.manifest" file on TFTP server, the file should contain the following string: VERSION= "1.16.0.X" WOP-2ac-1.16.0.X.tar.gz,  where WOP-2ac-1.16.0.X.tar.gz – name of the archive containing firmware for WOP-2ac; 1.16.0.X – a firmware version included to the archive. The firmware version might be viewed in «version» file in firmware archive.
  • Page 21   WOP-2ac quick manual c) Correct DHCP server settings (dhcpd.conf) as follows: option tftp-server-name "192.168.10.1"; option bootfile-name "wop2.manifest";  where 192.168.10.1 – an address of TFTP server; wop2.manifest – manifest-name of the file.
  • Page 22 +7(383) 274-47-87 +7(383) 272-83-31 E-mail: techsupp@eltex-co.ru   You are welcome to visit Eltex official website to get the relevant technical documentation and software, to use our knowledge base or consult a Service Centre Specialist in our technical forum.   http://www.eltex-co.ru/en/ http://www.eltex-co.ru/en/support/downloads/...
