  • Page 1 Industrial L3 Multi-Port Full Gigabit Managed Ethernet Switch IGS-5225-8T2S2X/IGS-5225-8P2S2X Quick Installation Guide...
  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..............3 2. Requirements ................4 3. Wiring the Power Inputs ............5 4. Terminal Setup ................7 4.1 Logon to the Console ............8 4.2 Configuring IP Address ............8 4.3 Store the Current Switch Configuration ........10 5. Starting Web Management ............11 5.1 Logging in to the Industrial Managed Switch ......11 5.2 Saving Configuration via Web ..........13 6.
  • Page 3: Package Contents

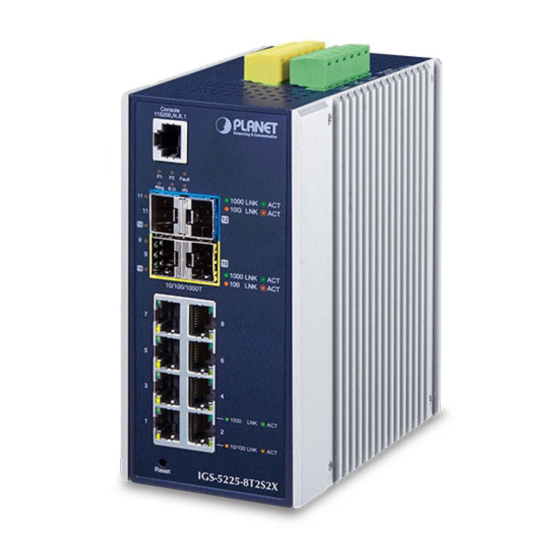

    1. Package Contents Thank you for purchasing PLANET L3 Industrial Managed Switch, IGS-5225-8T2S2X and IGS-5225-8P2S2X. The descriptions of these models are as follows: Industrial L3 8-Port 10/100/1000T + 2-Port IGS-5225-8T2S2X: 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C) Industrial L3 8-Port 10/100/1000T 802.3at PoE IGS-5225-8P2S2X: + 2-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C) “Industrial Managed Switch” mentioned in this Quick Installation Guide refers to the above two models. Open the box of the Industrial Managed Switch and carefully unpack it. The box should contain the following items:...
  • Page 4: Requirements

    2. Requirements The Industrial Managed Switch provides remote login interface for management purposes. The following equipment is necessary for further management: z Workstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal)  The above Workstations come with COM Port (DB9) or USB-to-...
  • Page 5: Wiring The Power Inputs

     IGS-5225-8T2S2X: 12~48V DC, 24V AC DI1 DO0 DO1 1 2 3 4 5 6 1A@24V 1 2 3 4 5 6 Figure 3-1: IGS-5225-8T2S2X Upper Panel  IGS-5225-8P2S2X: 48~56V DC DI0 DI1 DO0 DO1 GND GND 1 2 3 4 5 6 1A@24V 1 2 3 4 5 6...
  • Page 6 2. Tighten the wire-clamp screws for preventing the wires from loos- ening. Power 1 Power 2 Model Positive (+) Pin Negative (-) Pin IGS-5225-8T2S2X Pin 1/5 Pin 2/6 IGS-5225-8P2S2X The wire gauge for the terminal block should be in the range from 12 to 24 AWG. Please check with wire AWG Ampere spec, before Note connecting PLANET Industrial Switch.
  • Page 7: Terminal Setup

    RJ45 to DB9 RS232 Cable IP Address: Serial Port 192.168.0.100 A terminal program is required to make the software connected to the IGS-5225-8T2S2X and IGS-5225-8P2S2X Industrial Managed Switch. 1. Run terminal program on the OS. 2. When the following screen appears, make sure that the COM port should be configured as: z Baud: 115200...
  • Page 8: Logon To The Console

    4.1 Logon to the Console Once the terminal has been connected to the device, power on the Industrial Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 5-1 appears User Name: admin Password: admin...
  • Page 9 2. The screen displays the current IP address shown in Figure 4-2 Figure 4-2: IP Information Screen  Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 4-3. IGS-5225-8T2S2X# configure terminal IGS-5225-8T2S2X (config)# interface vlan 1 IGS5225-8T2S2X (config-if-vlan)# ip address 192.168.1.100 255.255.255.0 The previous command would apply the following settings for the Industrial Managed Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Figure 4-3: Configuring IP Address Screen 4. Repeat step 1 to check if the IP address has changed.
  • Page 10: Store The Current Switch Configuration

    4.3 Store the Current Switch Configuration At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed Switch through the new IP address. If you are not familiar with the console command or the related parameter, enter “help”...
  • Page 11: Starting Web Management

    5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed Switch. Note the Industrial Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the Industrial Managed Switch is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100), and the...
  • Page 12 Default IP Address: 192.168.0.100 Default User Name: admin Default Password: admin Figure 5-2: Login Screen 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Web Main Screen of Industrial Managed Switch...
  • Page 13: Saving Configuration Via Web

    4. The Switch Main Menu is shown on top of the Web page, and the functions are shown on the left to configure the Industrial Managed Switch. Now, you can use the Web management interface to continue the Switch management. Please refer to the user manual for more. If you are not familiar with Switch functions or the related parameter, press “Help icon”...
  • Page 14 1. Click Maintenance > Open Switch Maintenance on the left page > Press Save Startup Config. 2. Or you can press the “Save Configuration” button. 3. Press the “Save Configuration” button to save.
  • Page 15: Resetting The Switch To Default

    Web interface within the same subnet of 192.168.0.xx and default password. Be noted that all the previous setups will be disappeared after the factory default reset is made. Console 115200,N,8,1 P2 FAULT 1000 LNK 10G LNK 1000 LNK 100 LNK 1000 LNK 100 LNK Reset Button IGS-5225-8T2S2X RESET Figure 6-1: IGS-5225-8T2S2X/IGS-5225-8P2S2X Reset Button...
  • Page 16: Customer Support

    7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
