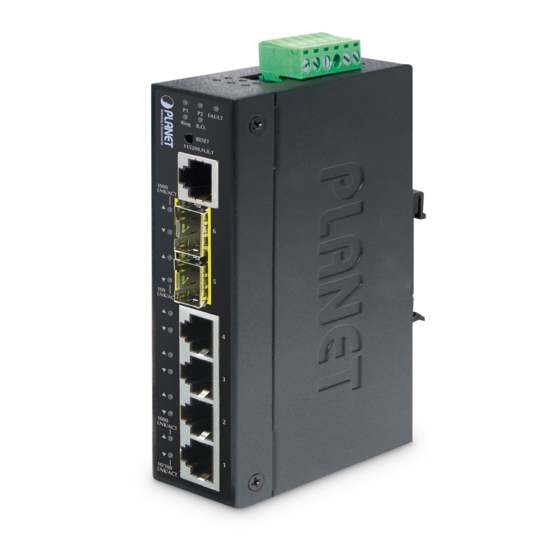

  • Page 1 Industrial L2+ Managed Gigabit/ 10 Gigabit Ethernet Switch IGS-5225 Series Quick Installation Guide...
  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..................3 2. Requirements ..................... 4 3. Wiring DC Power Inputs ................5 4. Terminal Setup ................... 7 5. Logon to Console ..................8 6. Configuring IP Address via Console .............. 9 7. Starting Web Management .................11 8. Saving Configuration via Web ..............14 9. Recovering Back to Default Configuration .............15 10.
  • Page 3: Package Contents

    1. Package Contents Thank you for purchasing PLANET Industrial L2+ Managed Gigabit/10 Gigabit Ethernet Switch. The description of this model is shown below: Industrial L2+ 16-port 10/100/1000T + 4-port 100/1000X IGS-5225-16T4S SFP Managed Ethernet Switch (-40~75 degrees C) Industrial L2+ 20-port 10/100/1000T + 4-port TP/SFP IGS-5225-20T4C2X Combo + 2-port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C) Industrial L2+ 16-port 10/100/1000T 802.3at PoE + 4-port IGS-5225-16P4S 100/1000X SFP Managed Switch (-40~75 degrees C) Industrial L2+ 24-port 10/100/1000T 802.3at PoE + 4-port IGS-5225-24P4S shared 100/1000X SFP Managed Switch (-40~75 degrees C) “Industrial Managed Switch” is used as an alternative name in this Quick Installation Guide.
  • Page 4: Requirements

    2. Requirements z Workstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP Protocols. z Workstations are installed with Ethernet NIC (Network Interface Card) z Serial Port Connection (Terminal)  The above Workstations come with COM Port (DB9) or USB-to-RS232 converter.  The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003, putty or tera term.
  • Page 5: Wiring Dc Power Inputs

    3. Wiring DC Power Inputs The 6-contact terminal block connector on the rear panel of Industrial Managed Switch is used for two DC redundant power input. Please follow the steps below to insert the power wires. 1. Insert positive/negative DC power wires into contacts 1 and 2 for DC POWER 1, or 5 and 6 for DC POWER 2.
  • Page 6 2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Power 2 Positive (+) Pin Negative (-) Pin IGS-5225-16T4S Pin 1/5 Pin 2/6 IGS-5225-20T4C2X Pin 1/5 Pin 2/6 IGS-5225-16P4S Pin 1/5 Pin 2/6 IGS-5225-24P4S Pin 1/5 Pin 2/6 The wire gauge for the terminal block should be in the range between 12 and 24 AWG. Note...
  • Page 7: Terminal Setup

    4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type of serial port of the Industrial Managed Switch. PC / Workstation with Terminal Emulation Software Managed Switch RS232 to RJ45 Cable Serial Port...
  • Page 8: Logon To Console

    5. Logon to Console Once the terminal is connected to the device, power on the Industrial Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. The factory default user name and password are shown as follows and the login screen in Figure 5-1 appears.
  • Page 9: Configuring Ip Address Via Console

    6. Configuring IP Address via Console The Industrial Managed Switch is shipped with default IP address shown below. IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedure as follows:  Show the current IP Address 1. At the “#” prompt, enter “show ip interface brief”. 2. The screen displays the current IP address as shown in Figure 6-1. Figure 6-1: IP Information Screen  Configuring IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 6-2.
  • Page 10 4. Repeat step 1 to check if the IP address has changed.  Store the current switch configuration 5. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 6-3: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed Switch through the new IP address.
  • Page 11: Starting Web Management

    7. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed Switch. Note the Industrial Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address.
  • Page 12 Figure 7-2: Login Screen 3. After entering the password, the main screen appears as Figure 7-3 shows. Figure 7-3: Web Main Screen of Industrial Managed Switch...
  • Page 13 The Switch Menu on the left of the Web page lets you access all the commands and statistics the Industrial Managed Switch provides. Figure 7-4: Switch Menu If you are not familiar with Switch functions or the related parameter, press “Help icon” anytime on the Web page to get the help description. Note Now, you can use the Web management interface to continue the Switch management or manage the Switch by console interface.
  • Page 14: Saving Configuration Via Web

    8. Saving Configuration via Web In the Industrial Managed Switch, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by executing save startup config command, so that the running configuration sequence becomes the startup configuration file, which is called configuration save.
  • Page 15: Recovering Back To Default Configuration

    9. Recovering Back to Default Configuration  IP address has been changed or admin password has been forgotten – To reset the IP address to the default IP address “192.168.0.100” or reset the login password to default value, press the hardware reset button on the rear panel for about 10 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx.
  • Page 16: Customer Support

    (Please select your switch model name from the drop-down menu of Product Models.) Copyright © PLANET Technology Corp. 2016. Contents are subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
