Industrial L2+ Multi-Port Full Gigabit
Managed Ethernet Switch
IGS-5225-4T2S/IGS-5225-4P2S
IGS-5225-4UP1T2S/IGS-5225-8P4S
IGS-5225-8P2T2S/IGS-5225-8P2T4S
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-5225-4T2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet IGS-5225-4T2S

Summary of Contents for Planet IGS-5225-4T2S

  • Page 1 Industrial L2+ Multi-Port Full Gigabit Managed Ethernet Switch IGS-5225-4T2S/IGS-5225-4P2S IGS-5225-4UP1T2S/IGS-5225-8P4S IGS-5225-8P2T2S/IGS-5225-8P2T4S Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ..............3 2. Requirements ................5 3. Wiring the Power Inputs ............6 3.1 Grounding the Device ............8 4. Terminal Setup ................9 4.1. Logging on to the Console ..........10 4.2 Configuring IP address ............11 5.

  • Page 3: Package Contents

    1. Package Contents Thank you for purchasing PLANET L2+ Industrial Managed Switch, IGS-5225 Series. The number of the ports of these models is as follows: GbE Copper GbE SFP PoE Ports Ports Ports IGS-5225-4T2S IGS-5225-4P2S at/af: 4 IGS-5225-4UP1T2S bt: 4...
  • Page 4 Open the box of the Industrial Managed Switch and carefully unpack it. The box should contain the following items for each model of the Industrial Managed Switch: IGS-5225- IGS-5225- IGS-5225- IGS-5225- IGS-5225- IGS-5225- 4T2S 4P2S 4UP1T2S 8P4S 8P2T2S 8P2T4S Quick Installation ...

  • Page 5: Requirements

    2. Requirements The Industrial Managed Switch provides remote login interface for management purposes. The following equipment is necessary for further management: z Workstations running Windows XP/2003/Vista/7/8/2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/ IP Protocols.

  • Page 6: Wiring The Power Inputs

    3. Wiring the Power Inputs The Upper Panel of the Industrial Managed Switch comes with a DC inlet power socket and one 6-contact terminal block. Please follow the steps below to insert the power wire. 1. Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1, or Contacts 5 and 6 for Power 2.
  • Page 7  IGS-5225-4T2S: DC 12~48V, AC 24V Max. fault loading: 24V, 1A 1 2 3 4 5 6 DC Input: 12-48V , 1.2A max. PWR1 Fault PWR2 AC Input: 24V , 1.1A max. Figure 3-3: IGS-5225-4T2S Upper Panel  IGS-5225-4P2S: DC 48~56V Max.

  • Page 8: Grounding The Device

    12 to 24 AWG. 2. Please check the wire AWG Ampere specification Note before connecting PLANET Industrial Managed Switch. PWR1 and PWR2 must provide the same DC voltage for power load balance while operating with dual power input.

  • Page 9: Terminal Setup

    4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type serial (console) port of the Industrial Managed Switch. The console port of the Industrial Managed Switch is DCE already, so that you can connect the console port directly through PC without the need of null modem.

  • Page 10: Logging On To The Console

    4.1. Logging on to the Console Once the terminal has been connected to the device, power on the Industrial Managed Switch and the terminal will display “running testing procedures”. following terminal configuration IGS- 5225-4UP1T2S is taken for an example. Note Then, the following message asks to log in user name and password.

  • Page 11: Configuring Ip Address

    4.2 Configuring IP address The Industrial Managed Switch is shipped with default IP address shown below: IP Address: 192.168.0.100 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedure as follows: ...
  • Page 12 Figure 4-3: Configuring IP Address Screen 4. Repeat step 1 to check if the IP address has changed.  Store the current switch configuration 5. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed Switch will apply the new IP address setting immediately.

  • Page 13: Starting Web Management

    5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed Switch. Note the Industrial Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the Industrial Managed Switch is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100), and the...
  • Page 14 Default IP Address: 192.168.0.100 Default User Name: admin Default Password: admin Figure 5-2: Login Screen 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Web Main Screen of Industrial Managed Switch...
  • Page 15 The Industrial Managed Switch Menu on the top and left of the Web page lets you access all the functions and status the Industrial Managed Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “QoS”, “Security”, “PoE”, “Ring”, “ONVIF”...

  • Page 16: Saving Configuration Via Web

    5.2 Saving Configuration via Web To save all applied changes and set the current configuration as a startup configuration, the startup-configuration file will be loaded automatically across a system reboot. 1. Click the Save icon on the top Switch Menu bar. Figure 5-5: Save Config -- Hot Key 2.

  • Page 17: Recovering Back To Default Configuration

    Web interface within the same subnet of 192.168.0.xx and default password. Be noted that all the previous setups will be disappeared after the factory default reset is made. Fault Ring R.O. Reset Reset 115200,N,8,1 1000 LNK/ACT LNK/ACT Figure 6-1: IGS-5225-4T2S Reset Button...
  • Page 18 1000 10/100 PoE-in-Use af/at IGS-5225-4UP1T2S Reset Reset Figure 6-2: IGS-5225-4UP1T2S Reset Button LNK/ACT 10/100 LNK/ACT 1G/2.5G LNK/ACT LNK/ACT Reset IGS-5225-8P2T4S Reset Figure 6-3: IGS-5225-8P4S/IGS-5225-8P2T2S/IGS-5225-8P2T4S Reset Button...

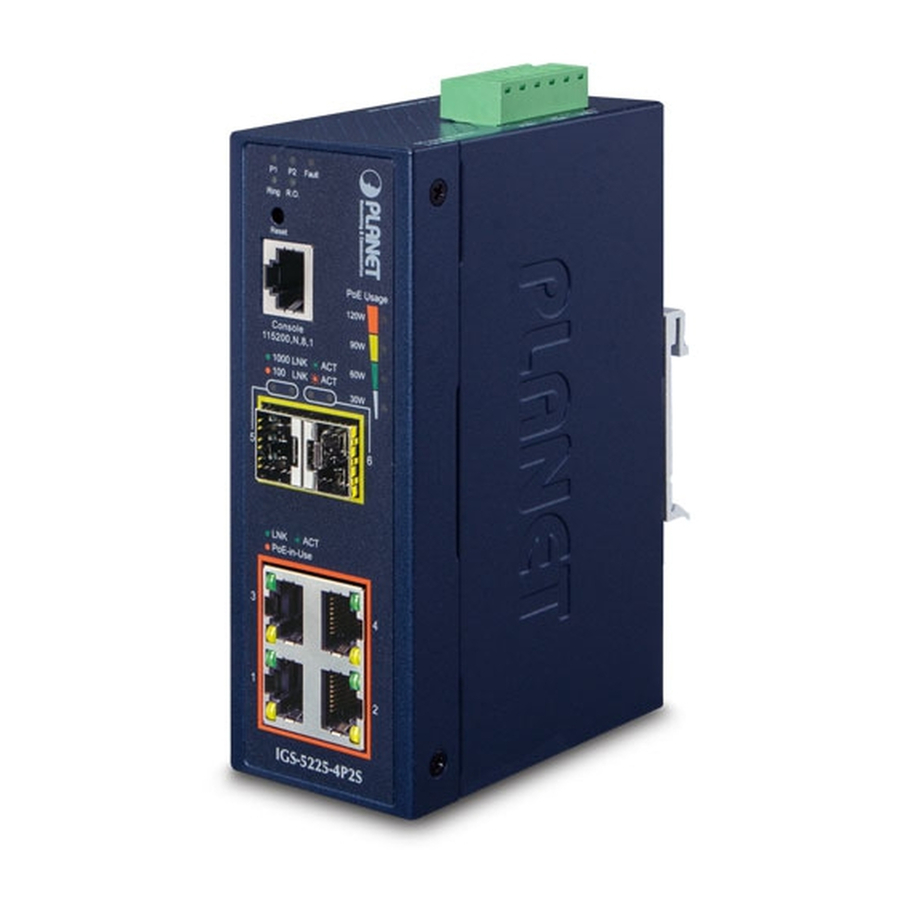

  • Page 19 Fault Ring R.O. Reset Reset PoE Usage 120W Console 115200,N,8,1 1000 LNK 100 LNK Figure 6-4: IGS-5225-4P2S Reset Button...

  • Page 20: Customer Support

    7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.

This manual is also suitable for:

Igs-5225-4p2sIgs-5225-4up1t2sIgs-5225-8p4sIgs-5225-8p2t2sIgs-5225-8p2t4s
