Axxess AXAC-MZ2 Installation Instructions Manual

Mazda camera interface with pre-wired harness 2014-up
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

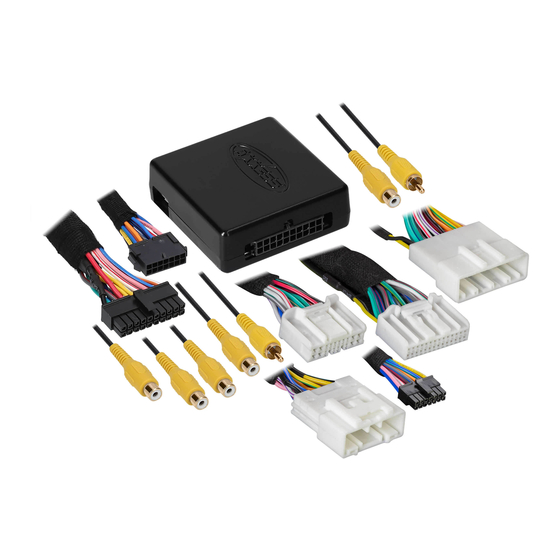

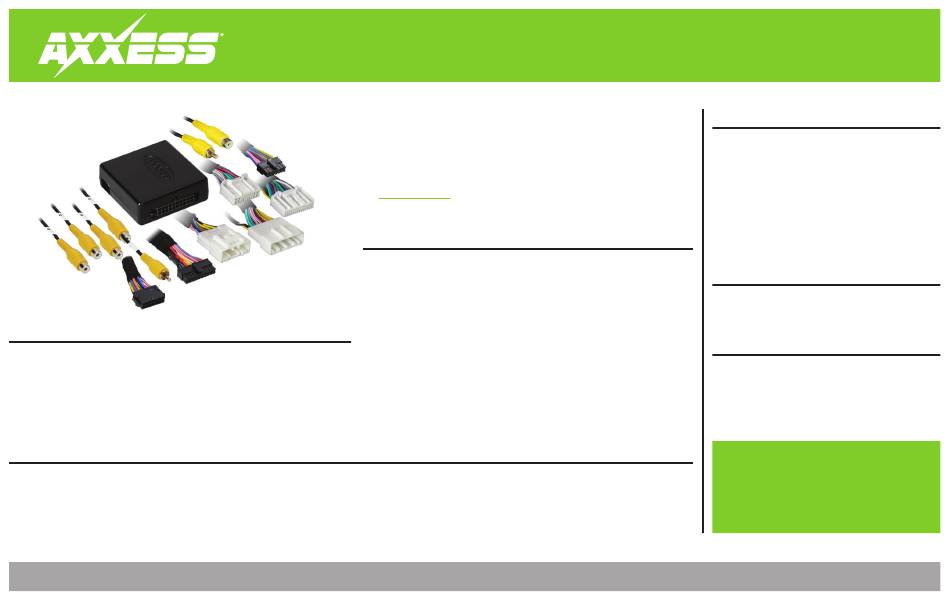

INTERFACE COMPONENTS
• AXAC-MZ2 interface
• AXAC-MZ2 interface harness
• AXAC-MZ2 vehicle harness (qty. 2)
• 18-pin T-harness
• 28-pin T-harness (cam harness)
APPLICATIONS
Mazda
CX-3
2016-Up
CX-9
2016-Up
Mazda3
2014-Up
AxxessInterfaces.com
Mazda† Camera Interface With Pre-Wired Harness
2014-Up
†
With full color LCD screen
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• (4) Camera inputs
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AXAC-MZ2
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Introduction............................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
REQUIRED ITEMS (sold separately)
Update Cable: AXUSB-MCBL
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 3/12/20 INSTAXAC-MZ2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXAC-MZ2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axxess AXAC-MZ2

Summary of Contents for Axxess AXAC-MZ2

  • Page 1: Table Of Contents

    • AXAC-MZ2 interface • Crimping tool and connectors, or solder gun, • AXAC-MZ2 interface harness solder, and heat shrink • AXAC-MZ2 vehicle harness (qty. 2) • Tape • Wire cutter • Zip ties • 18-pin T-harness • 28-pin T-harness (cam harness)

  • Page 2: Introduction

    • Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer. The cable will connect into the micro-B USB port in the interface. • Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen. • Select Add-Cam Configuration.
  • Page 3 CONFIGURATION (CONT.) • Select the vehicle in the drop down list. A tab labeled Configuration will appear after the † • Under Configuration, configure the (4) video trigger inputs to the desired settings. vehicle has been selected. • Once all selections have been configured, press Write Configuration to save the settings. •...
  • Page 4 CONFIGURATION (CONT.) Video trigger legend Video trigger description • Disable (will turn off the input) • Control 2 (negative trigger activation) • Reverse camera: Dedicated by default to Video Trigger 1. Will activate the backup camera while the vehicle is in reverse. •...

  • Page 5: Connections

    The (optional) analog control wires can be used with either a negative or positive trigger, depending • Disregard the following (3) wires: Blue/Green, Green/Blue, Red on how they are configured in the Axxess Updater. These wires will only be used for manual control of the camera(s). Otherwise disregard them.

  • Page 6: Installation

    For models with a factory backup camera: 1. Cycle the ignition on and wait until the LED in the interface comes on. 1. Remove the harnesses from the factory radio display, then install the AXAC-MZ2 vehicle harness in between. Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the off position, disconnect the interface, check all connections, reconnect the interface, and then try again.
  • Page 7 REV. 3/12/2020 INSTAXAC-MZ2...
  • Page 8 AXAC-MZ2 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com...
