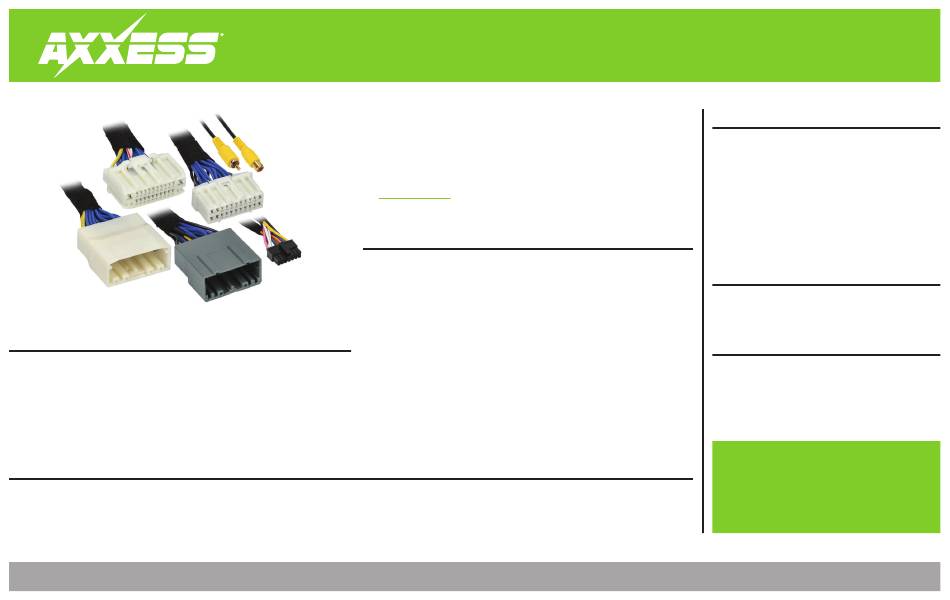

Axxess AXAC-CH3 Installation Instructions Manual

Axxess AXAC-CH3 Installation Instructions Manual

Chrysler/dodge camera interface with pre-wired harness 2011-2018

Advertisement

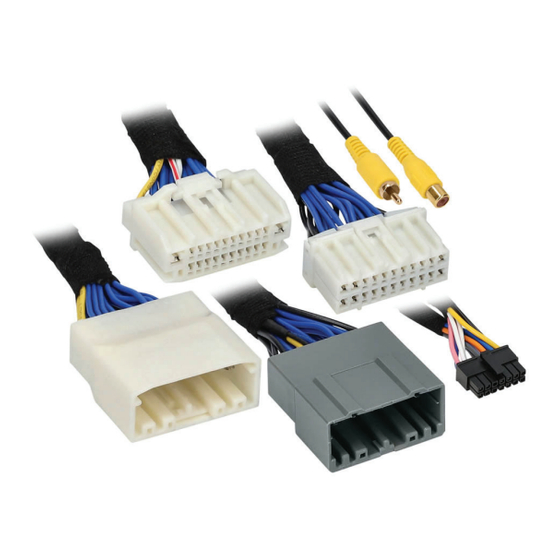

INTERFACE COMPONENTS
• AXAC-CH3 interface
• AXAC-CH3 interface harness
• AXAC-CH3 vehicle harness (qty. 2)
• 22-pin T-harness
• 22-pin T-harness (cam harness)
APPLICATIONS
Chrysler
Dodge
300
2011-2014
Charger
Journey
AxxessInterfaces.com
Chrysler/Dodge† Camera Interface With
Pre-Wired
Harness
With 8.4-inch U-Connect RB5 or RE2 radio
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• (4) Camera inputs
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
2011-2014
2011-2018
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
2011-2018
AXAC-CH3
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Introduction............................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
REQUIRED ITEMS (sold separately)
Update Cable: AXUSB-MCBL
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 2/18/20 INSTAXAC-CH3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXAC-CH3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axxess AXAC-CH3

  • Page 1 • AXAC-CH3 interface • Crimping tool and connectors, or solder gun, • AXAC-CH3 interface harness solder, and heat shrink • AXAC-CH3 vehicle harness (qty. 2) • Tape • Wire cutter • Zip ties • 22-pin T-harness • 22-pin T-harness (cam harness)
  • Page 2 • Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer. The cable will connect into the micro-B USB port in the interface. • Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen. • Select Add-Cam Configuration.
  • Page 3 CONFIGURATION (CONT.) • Select the vehicle in the drop down list. A tab labeled Configuration will appear after the † • Under Configuration, configure the (4) video trigger inputs to the desired settings. vehicle has been selected. • Once all selections have been configured, press Write Configuration to save the settings. •...
  • Page 4 CONFIGURATION (CONT.) Video trigger legend Video trigger description • Disable (will turn off the input) • Control 2 (negative trigger activation) • Reverse camera: Dedicated by default to Video Trigger 1. Will activate the backup camera while the vehicle is in reverse. •...
  • Page 5 The (optional) analog control wires can be used with either a negative or positive trigger, depending • Disregard the following (3) wires: Blue/Green, Green/Blue, Red on how they are configured in the Axxess Updater. These wires will only be used for manual control of the camera(s). Otherwise disregard them.
  • Page 6 For models with a factory backup camera: 1. Cycle the ignition on and wait until the LED in the interface comes on. 1. Remove the harnesses from the factory radio, then install the AXAC-CH3 vehicle harness in between. Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the off position, disconnect the interface, check all connections, reconnect the interface, and then try again.
  • Page 7 REV. 2/18/2020 INSTAXAC-CH3...
  • Page 8 AXAC-CH3 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 386-257-1187. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
