Axxess AX-AB-HN1 Installation Instructions

Axxess AX-AB-HN1 Installation Instructions

Honda amplifier bypass harness 2016-up

Advertisement

Quick Links

APPLICATIONS
Honda
Accord
2018-up
Insight
Civic
2016-2018
Pilot
CR-V
2017-2018
AxxessInterfaces.com

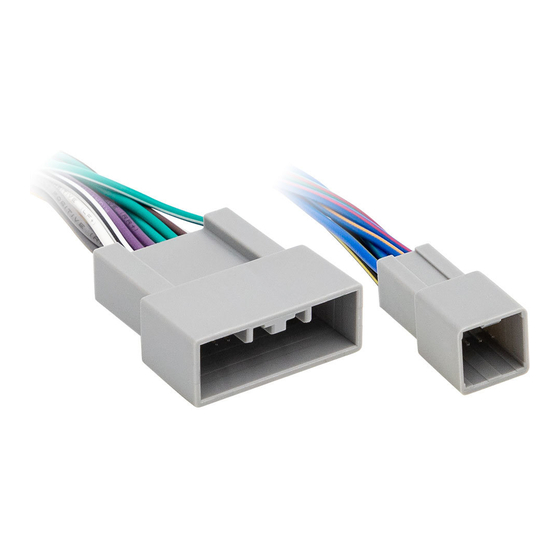

Honda Amplifier Bypass Harness 2016-up
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
FEATURES
• Amplifier bypass harness
• Vehicle-specific harness to bypass the factory amplifier
• Allows loose wires to wire to an aftermarket amplifier
• Saves the installer unnecessary labor and wire
2019-up
2016-2018
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AX-AB-HN1
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Amplifier locations ................................................2
Connections ............................................................3
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 1/23/19 INSTAX-AB-HN1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AX-AB-HN1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axxess AX-AB-HN1

  • Page 1 AX-AB-HN1 I N S TA L L AT I O N I N S T R U C T I O N S Honda Amplifier Bypass Harness 2016-up TABLE OF CONTENTS Amplifier locations ..........2 Visit AxxessInterfaces.com for more detailed information about the product and up-to-date Connections ............3...
  • Page 2 AMPLIFIER LOCATIONS Vehicle Amp Location Accord Center console, close to firewall Civic Passenger kick panel, up high CR-V Under gear selector in center console Insight Passenger kick panel, up high Pilot Passenger kick panel, up high...
  • Page 3 CONNECTIONS 18-Pin Harness: 8-Pin Harness: Wire Color Speaker Wire Color Speaker Blue/Orange Left Satellite Speaker + White Front Left Woofer + Blue/Red Left Satellite Speaker - White/Black Front Left Woofer - Blue/Yellow Right Satellite Speaker + Gray Front Right Woofer + Blue/Green Right Satellite Speaker - Gray/Black Front Right Woofer - Green/Orange...
  • Page 4 Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support. ® NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
