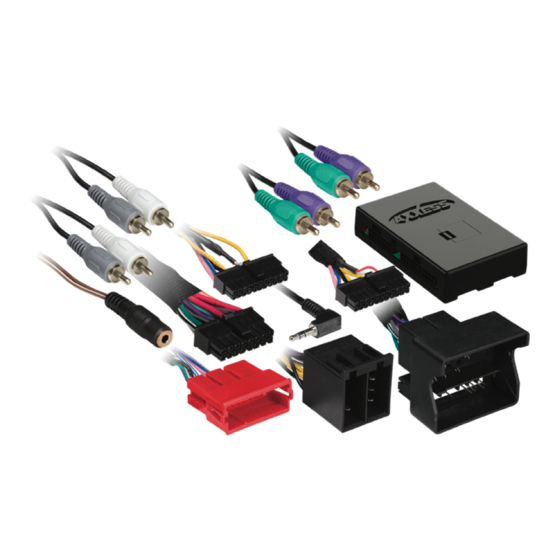

INTERFACE COMPONENTS
• AX-AU12-SWC interface
• LD-BX-AU2 harness
• LD-BX-AU1 harness
• 16-pin harness with stripped leads
APPLICATIONS
AUDI
Applications below use
LD-BX-AU1:
A3 *
2006-2013
A4/RS 4/S4 w/ NAV
2005-2008
A4/RS 4/S4
2007-2008
A4/RS 4/S4*
2006
A4/S4 Convertible
2009
TT/TTS
2008-2015
AxxessInterfaces.com
Audi Data Interface with SWC
INTERFACE FEATURES
• Provides accessory power
(12-volt 10-amp)
• Retains R.A.P. (retained
accessory power)
• Provides NAV outputs (parking
brake, reverse, speed sense)
Applications below use
LD-BX-AU2:
A3 †
2006-2007
A4/S4 ‡
2006
A4/S4
2002-2005
A6/RS 6/S6
2002-2004
allroad
2004-2005
TT
2002-2006
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
the steering wheel
• Designed for both Bose,
and non-Bose models
• Retains balance and fade
• Micro "B" USB updatable
• Female 3.5mm connector with stripped leads
* Only for models with either a
Symphony Plus or a NAV radio.
† Non-navigation Concert or
Symphony radio only
‡ Non-navigation Symphony
radio only

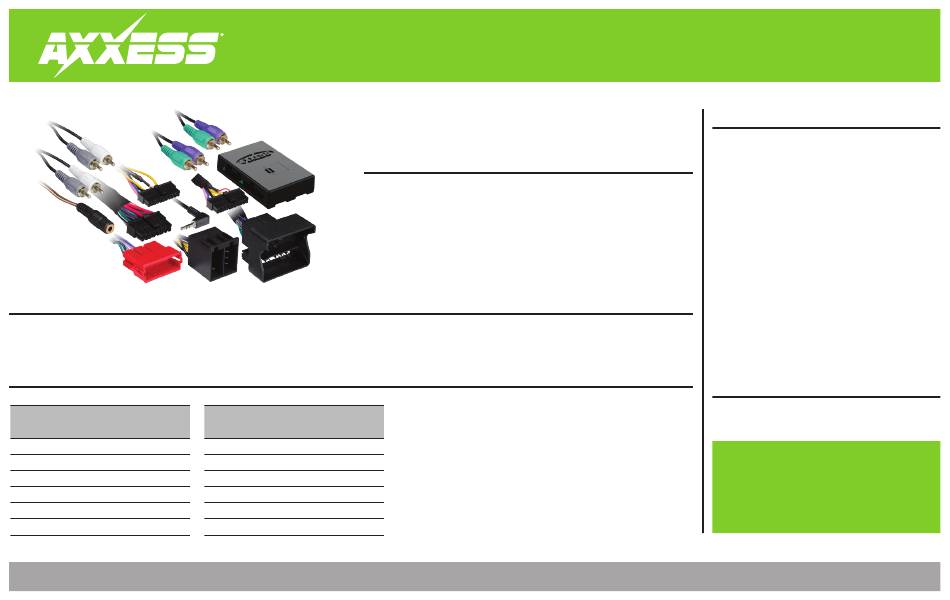

AX-AU12-SWC
I N S TA L L AT I O N I N S T R U C T I O N S
2002-2015

TABLE OF CONTENTS

Connections to be made .......................................................2-6
- For LD-BX-AU1 applications equipped without a Bose amp ..3
- For LD-BX-AU2 applications equipped without a Bose amp ..5
Installing the AX-AU12-SWC ..................................................... 6
Initializing the AX-AU12-SWC ................................................... 6
Troubleshooting the AX-AU12-SWC ......................................... 6
Steering wheel control settings ...........................................7-9
L.E.D. feedback .....................................................................7
Changing radio type ............................................................7
Resetting the AX-AU12-SWC ..............................................10
TOOLS REQUIRED
• Wire cutter • Crimp tool• Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
CAUTION!
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 7/19/18 INSTAX-AU12-SWC
