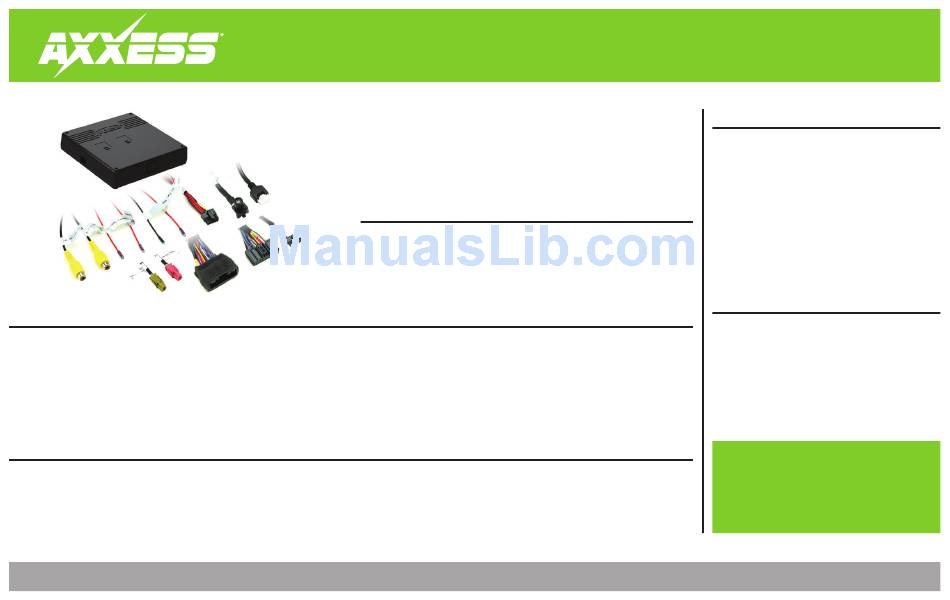

INTERFACE COMPONENTS
• AX-AM-FD91 interface
• AX-AM-FD91 harness
• LVDS (video) extension cable
• 6-pin to 4-pin LVDS (video) cable
APPLICATIONS
FORD
Edge
2018-up
Escape
2018-up
Expedition
2018-up
AxxessInterfaces.com
Ford
(with Sync 3)
HDMI and Camera Interface
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides front and rear camera inputs to the factory display screen
• Provides an HDMI input to the factory display screen
• Micro "B" USB updatable
• 10-pin harness with RCA jacks
• 3.5mm extension cable
• USB dongle
Explorer
F-150
F-250/350/450 Super Duty
Flex
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
2015-up*
2018-up
Fusion
2015-up
Mustang
2015-up
Taurus
2018-up
AX-AM-FD91
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
Configuring the AX-AM-FD91 ................................3
Installing the AX-AM-FD91 .....................................4
User guide ..............................................................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
2015-up
lights must be connected before cycling the
2015-up
ignition. Also, do not remove the factory radio
2017-up
with the key in the on position, or while the
vehicle is running.
REV. 4/17/18 INSTAX-AM-FD91
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess AX-AM-FD91
Summary of Contents for Axxess AX-AM-FD91
- Page 1 TABLE OF CONTENTS (with Sync 3) Connections to be made ........2 HDMI and Camera Interface 2015-up* Configuring the AX-AM-FD91 ........3 *Visit AxxessInterfaces.com for up-to-date vehicle specific applications. Installing the AX-AM-FD91 ........4 User guide ..............5 INTERFACE FEATURES • Provides front and rear camera inputs to the factory display screen •...
-
Page 2: Connections To Be Made
• If installing a front camera, connect the RCA jack labeled “Front Camera Video Input” (Connections Diagram) to the camera. • If adding an HDMI input to the factory display screen, connect an HDMI cable (Axxess part number AX-HDCABLE, sold separately), to the port on the AX-AM-FD91 labeled “HDMI IN”. -
Page 3: Configuring The Ax-Am-Fd91
CONFIGURING THE AX-AM-FD91 Dip switch settings Remove the access door located on the top of the AX-AM-FD91 interface to access the dip switches. Dip 1 Dip 2 Dip 3 Dips 4 & 5 If the vehicle is equipped with a factory... -
Page 4: Installing The Ax-Am-Fd91
AX-AM-FD91 harness. • Connect the AX-AM-FD91 harness into the AX-AM-FD91 interface. • Connect one end of the 3.5mm extension cable to the AX-AM-FD91 harness, then connect the other end to the USB dongle. The USB dongle will be discussed later. -
Page 5: User Guide
USER GUIDE Button Configuration • The factory buttons on the steering wheel, and “SOUND” button on the radio, will be used to operate the AX-AM-FD91. HDMI access Rear camera access • Connect the USB dongle to the Sync USB input. The dongle will appear as “USB AUX”. - Page 7 REV. 4/17/2018 INSTAX-AM-FD91...
- Page 8 AX-AM-FD91 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
