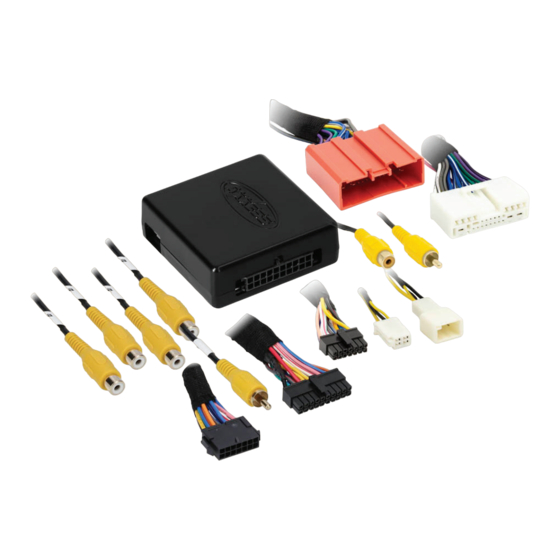

INTERFACE COMPONENTS
• AXAC-MZ1 interface
• AXAC-MZ1 interface harness
• AXAC-MZ1 vehicle harness (qty. 2)
• 24-pin T-harness
• 4-pin T-harness (cam harness)
APPLICATIONS
Mazda
CX-5
2013-2015
CX-9
2013-2015
CX-9 (with NAV)
2007-2012
AxxessInterfaces.com
Mazda† Camera Interface With Pre-Wired Harness
2007-2015
†
With full color LCD screen
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• (4) Camera inputs
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AXAC-MZ1
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Introduction............................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
REQUIRED ITEMS (sold separately)
Update Cable: AXUSB-MCBL
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 2/17/20 INSTAXAC-MZ1
