ELECTRICAL CONNECTION

•
Your washing machine is set to 220-240V and 50Hz.
•
The mains cord of your washing machine is equipped with a specific earthed plug. This
plug should always be inserted to a earthed socket of 10 amps.
•
The current value of the fuse should be 10 amps. Fuse current value of the power line
connected to this plug should also be 10 amperes.
•
If you don't have such a receptacle and fuse confirming with this, please have it done
by a qualified electrician.
•
We do not take the responsibility of the damages that occur due to ungrounded usage.
NOTE: Operating your machine under low voltage will cause the life cycle of your
machine to be reduced and its performance to be restricted.

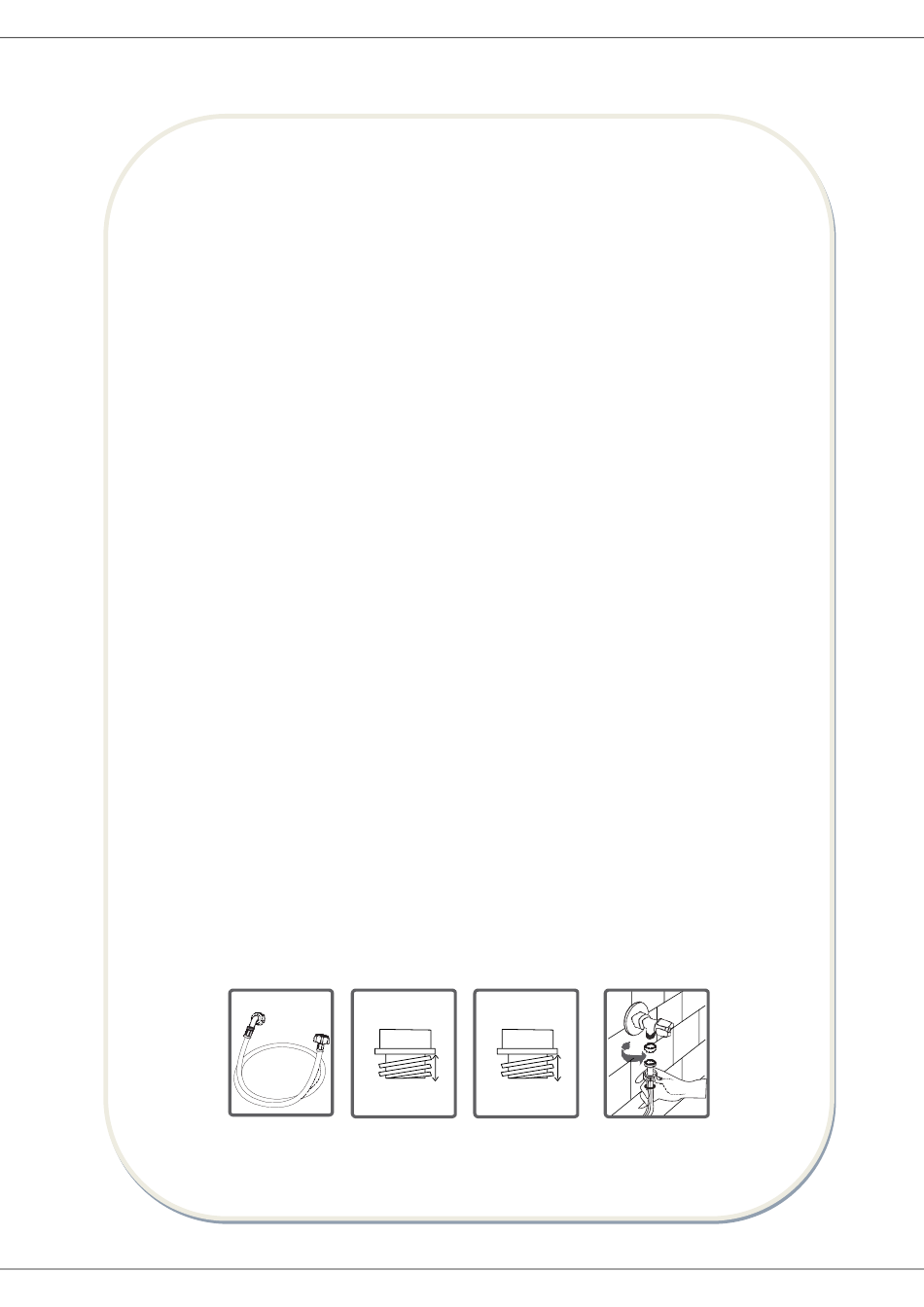

WATER INLET HOSE CONNECTION

•
Your machine may have either a single inlet (cold) or double water inlets (cold/hot)
based on its specifications. White-capped hose should be connected to cold water inlet
and red-capped hose to hot water inlet (applicable for machines with double water
inlets).
•
To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose
package (applicable for machines with double water inlets). Fit these nuts to the ends
of new water inlet hoses on the side of faucet.
•
Mount new water inlet hoses to a ¾ ˝, threaded faucet.
•
Connect the white-elbow end of the water inlet hoses to the white-filtered water inlet
valve on the rear side of the machine and the red-elbow end to red-filtered one
(applicable for machines with double water inlets). Tighten plastic parts of the
junctions using your hand. In uncertain conditions, have the connection works be done
by a qualified plumber.
•
Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more
efficiently.) (0,1 Mpa pressure means that more than 8 litres of water will flow through
a fully-tapped faucet per one minute.)
•
Ensure that points of contact do not leak by tapping the faucet completely after
carrying making the connections.
•
Ensure that the new water inlet hoses are not bent, broken, crushed and resized.
•
If your machine has double hot water inlets, the temperature of hot water inlet should
be maximum 70°C.
5Kg, 220-240V~50Hz, 800rpm
3/4" 3/4"
