Atlona HDMI Audio De-Embedder and Converter
AT-HD570
The Atlona HDMI Audio De-embedder and Interface Format Converter includes analog and digital
audio outputs, passing up to Dolby TrueHD or DTS-HD Master Audio. Along with multiple audio
outputs, the HD570 provides equalized HDMI ports to extend signal up to 15 meters (50 feet).
Package Contents
1 x AT-HD570
1 x 5V DC power supply
1 x User manual
IMPORTANT: Visit
and Installation Guide.
https://atlona.com/product/AT-HD570
1
Installation Guide
for the latest firmware updates
AT-HD570
Advertisement
Related Manuals for Panduit Atlona AT-HD570
Summary of Contents for Panduit Atlona AT-HD570
- Page 1 Installation Guide AT-HD570 Atlona HDMI Audio De-Embedder and Converter AT-HD570 The Atlona HDMI Audio De-embedder and Interface Format Converter includes analog and digital audio outputs, passing up to Dolby TrueHD or DTS-HD Master Audio. Along with multiple audio outputs, the HD570 provides equalized HDMI ports to extend signal up to 15 meters (50 feet). Package Contents 1 x AT-HD570 1 x 5V DC power supply...
-
Page 2: Panel Descriptions

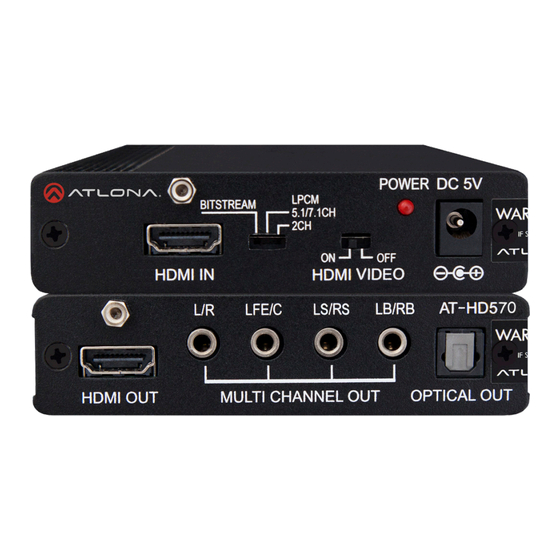

Installation Guide AT-HD570 Panel Descriptions BITSTREAM HDMI IN POWER LED Connect an HDMI source here. e.g. DVD The power LED will illuminate red when player, Set-Top-Box, etc receiving power. Audio Dip Switch DC 5V Switch audio format and EDID on the Connect the included power supply to this HDMI ports. -
Page 3: Installation
Installation Guide AT-HD570 Installation Connect a source to the HDMI IN port. *Optional when HDMI dip switch is set to off* Connect a display to the HDMI OUT port on the receiver. Set the Audio dip switch to the needed audio. Switch between bitstream (Dolby TrueHD or DTS-HD Master Audio on HDMI port), LPCM 5.1/7.1, and 2Ch PCM. - Page 4 Installation Guide AT-HD570 Notes:...
- Page 5 Installation Guide AT-HD570 Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 6 Installation Guide AT-HD570 Atlona, Inc. (“Atlona”) Limited Product Warranty Cont. Remedy Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona. com for Atlona’s contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services.
-
Page 7: Other Conditions
Installation Guide AT-HD570 Atlona, Inc. (“Atlona”) Limited Product Warranty Cont. Exclusive Remedy To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. - Page 8 Installation Guide AT-HD570 English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/AT-HD570. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
