Enwork IMPRESSION FLIP TABLE Installation Manual page 3

3 ) A S S E M B L Y
I N S T A L L A T I O N
F I G U R E 1
F I G U R E 2
F I G U R E 3
G U I D E

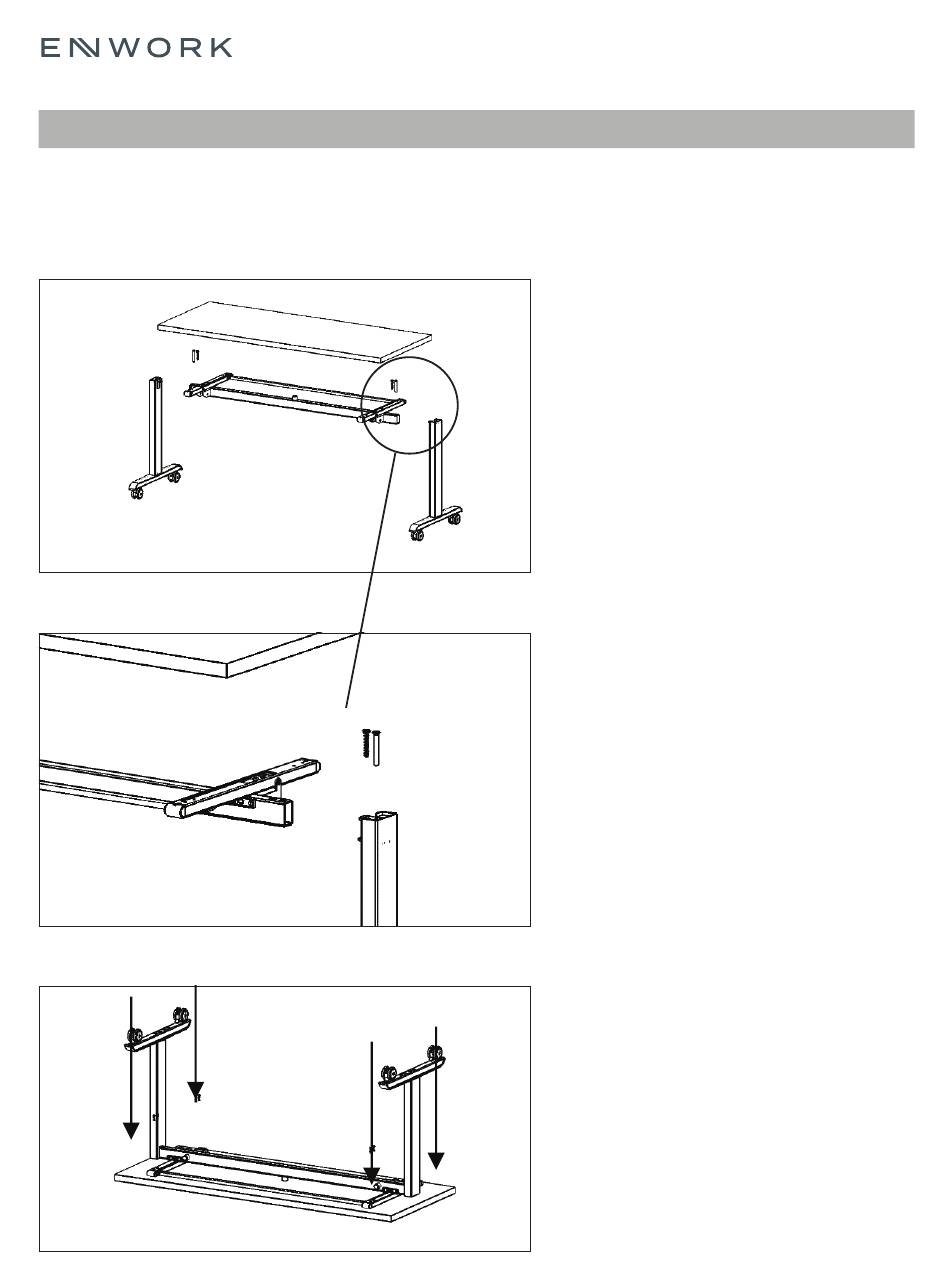

• Locate Leg Column, Frame and M8 x 70mm and M8 x
55mm Flat head bolts included in the hardware pack.
• Slide the beam of the Frame onto the Leg Column.
• Line up the clearance holes in the beam with the tapped
holes in the Leg Column.
• Connect the legs to the frame using the M8 x 70mm and
M8 x 55mm Flat head bolts. Verify that the M8 x 70mm
bolt is used on the hole closest to the end of the beam.
• Repeat for the second leg.
• Lay the Worksurface face down on a non-marring surface.
• Place the Frame and Leg Assembly on the Worksurface,
locating it evenly spaced from the all sides of the table.
• Line up the holes in the Frame Assembly with the pre-
drilled holes in the worksurface and attach using the
included wood screws.
• Insert the included Cap Covers into the holes in the Frame
Assembly to cover the screws.
