Automationdirect.com Productivity 2000 P2-16TA Manual

Output Specifications
Output Channels
Rated Voltage
Operating Voltage Range
Output Type
Maximum Output Current
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
AC Frequency
Status Indicators
Commons
Recommended External Fuse
Document Name
P2-16TA-DS
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
16
100–240 VAC
80–288 VAC
Sourcing
0.5 A / point, 4A / common @ 55°C
0.3 A / point, 2.4 A / common @ 60°C
10 mA
4 mA @ 264 VDC
1.5 VAC @ > 50 mA
4.0 VAC @ < 50 mA
10A for 10 ms
1 ms + 1/2 cycle
1 ms + 1/2 cycle
47–63 Hz
Logic Side (16 points)
2 Isolated Commons for 120V
2 Non-Isolated Commons for 240V
(external jumper required)
6.3 A Max
(Automation Direct P/N S5006-3-R)
Edition/Revision Date
2nd Ed. 9/10/2019

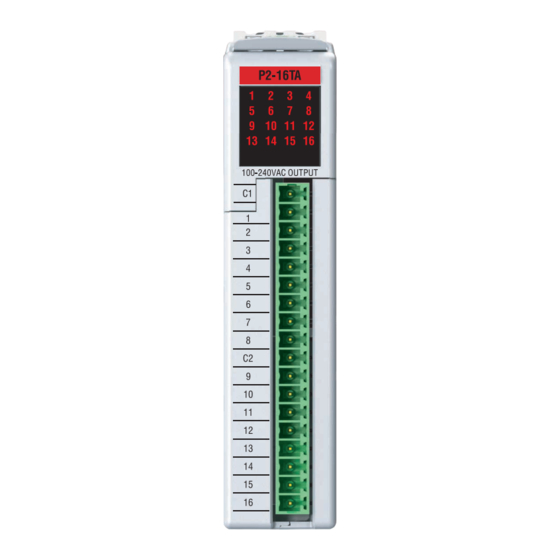

P2-16TA AC Output
The P2-16TA AC Output Module provides
sixteen 100-240 VAC outputs for use with the
Productivity2000 system.
Output Specifications ............................................... 1
Module Installation ................................................... 2
QR Code .................................................................. 2
Hot Swap Information ............................................... 2
Wiring Options .......................................................... 3
Wiring Diagram and Schematic . ...............................3
Warning .................................................................... 4
Removable Terminal Block Specifications................4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
®
1
