Automationdirect.com Productivity 2000 P2-08TD2S Manual

Output Specifications
Outputs per Module 8 sourcing
Output Type P-channel MOSFET, open source
Rated Voltage 12–24 VDC
Operating Voltage Range 10.2–30 VDC
Maximum Output Current 2A per point
Minimum Load Current 0.4 mA
Maximum Leakage Current 0.3 mA @ 30VDC
On Voltage Drop 0.2 VDC @ 2A
Maximum Inrush Current 4A for 40ms, 6A for 10ms
OFF to ON Response ≤0.5 ms
ON to OFF Response ≤0.5 ms
Status Indicators Logic Side (8 points)
Commons 2 isolated (4 points / common)
Recommended External Fuse None
External Power Supply Required 12–24 VDC (-15% / +20%) @ 12mA
Sales 800-633-0405
P2-08TD2S Sourcing
S

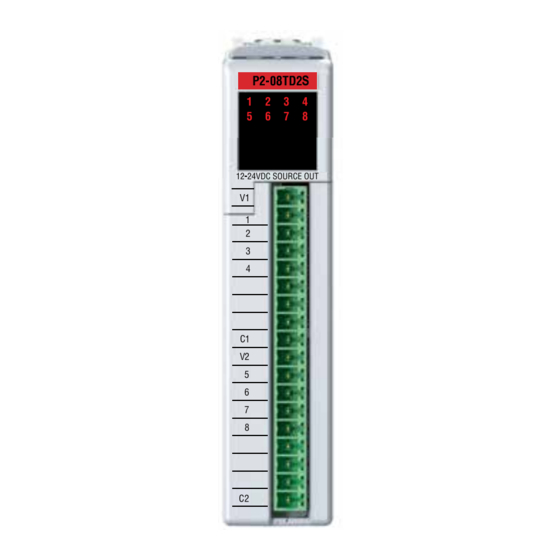

The P2-08TD2S DC Output Module
provides eight outputs, isolated four per
common, that source up to 2A per output
from 12–24 VDC supplies for use with the
Productivity2000 System.
