Output Specifications
Outputs per Module
Voltage Rating
Operating Voltage Range
Maximum Output Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Overcurrent Trip
Minimum Load Current to Avoid Open
Load Fault Detection
Maximum Leakage Current
Over Temperature Shutdown
Load Resistance to Avoid Open Load
Fault Detection
Status Indicators
External 24V Error Indicator
Fault Condition Indicator
Commons
Fuses
External DC Power Required
*Rev B2 and higher.
Document Name
P2-08TD1P-DS
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
8 sinking
12 - 24 VDC
10.2 - 26.4 VDC
0.25A continuous
0.5VDC
Self-limited
0.5ms
0.5ms
0.6A min., 1.2A max. > 50ms duration*
113µA
135µA 10.2–26.4 VDC
Independent to each output
<58kΩ
Logic Side (8 points)
Logic Side (1 points)
Logic Side (8 points)
1
None
24VDC @ 30mA
Edition/Revision
Date
3rd Ed.
2/5/2019

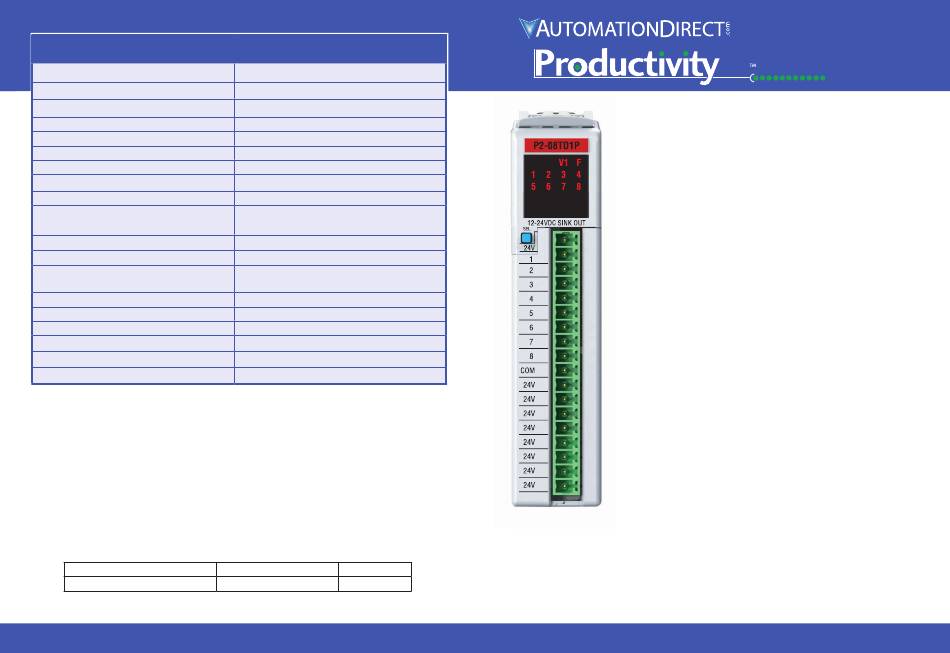

P2-08TD1P Sinking
Protected DC Output

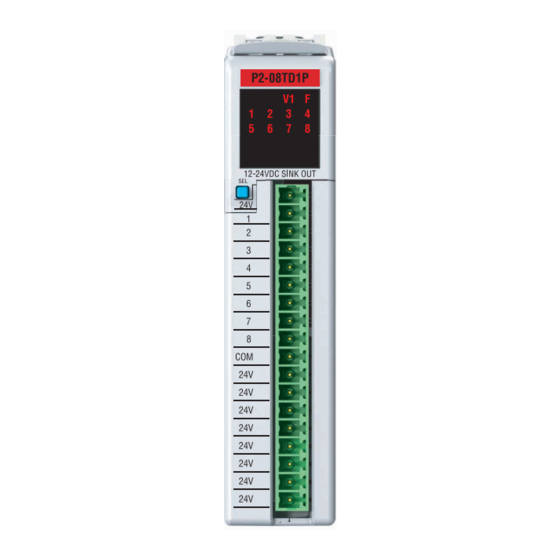

The P2-08TD1P DC Output Module
provides eight 12-24 VDC sinking
outputs with short-circuit and overload
protection for use with the Productivity2000
System.
Output Specifications ............................................... 1
Module Installation ................................................... 2
Wiring Options .......................................................... 2
Wiring Diagram and Schematic ................................ 3
QR Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
Removable Terminal Block
Specifications ........................................................... 4
General Specifications ............................................. 4
LED Status ............................................................... 4
Terminal Block sold separately, (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
2000
1
