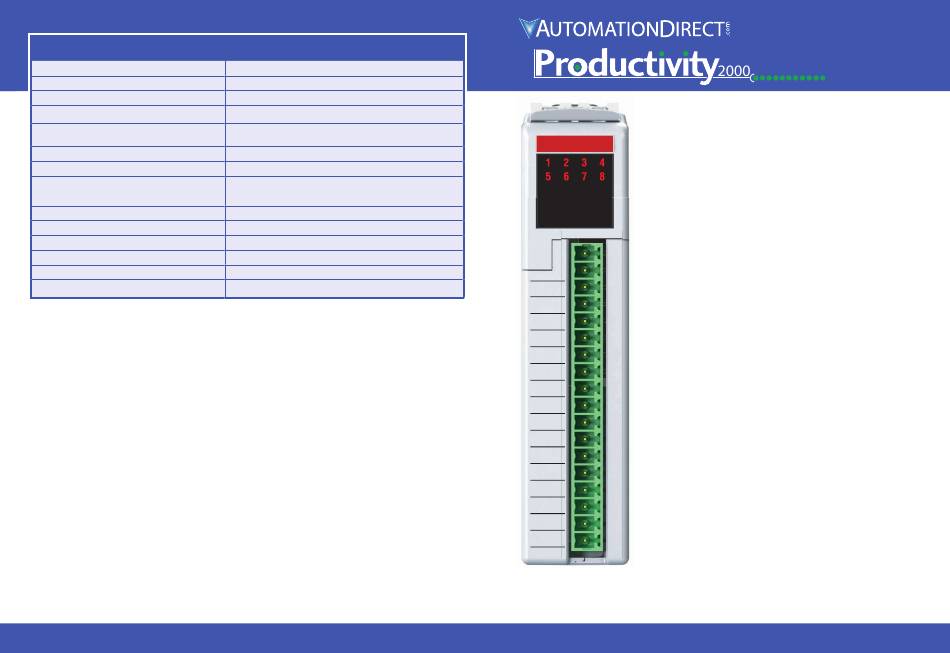

Automationdirect.com Productivity 2000 P2-08TAS Manual

Output Specifications
Outputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Maximum Output Current
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Recommended External Fuse
Sales 800-633-0405
8
100–120 VAC
85–132 VAC
47–63 Hz
1A / point @ 40°C
0.7 A / point @ 60°C
10mA
4mA @ 144VDC
1.5 VAC @ > 50mA
4.0 VAC @ < 50mA
3A for 10ms
1ms + 1/2 cycle
1ms + 1/2 cycle
Logic Side (8 points)
8 Isolated (1 point / common)
1.6 A Max. (AutomationDirect P/N S5001-6-R)

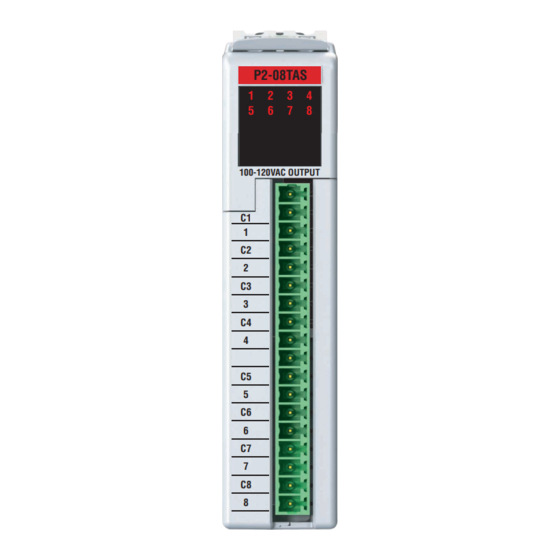

P2-08TAS AC
Isolated Output
P2-08TAS
The P2-08TAS AC Output Module provides
eight 100–120 VAC isolated outputs for use
with the Productivity2000 System.
100-120VAC OUTPUT
Output Specifications . . . . . . . . . . 1
Module Installation Procedure . . . . 2
Terminal Block Removal . . . . . . . . 2
C1
Hot Swap Information . . . . . . . . . . 2
1
Wiring Options . . . . . . . . . . . . . . . . 3
C2
Schematic and Wiring Diagram . . . 3
Warning . . . . . . . . . . . . . . . . . . . . . 4
2
Removable Terminal Block
C3
Specifications . . . . . . . . . . . . . . . . 4
3
General Specifications . . . . . . . . . 4
C4
4
C5
5
C6
6
C7
7
C8
8
Terminal Block sold separately (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
®
1
