WARNING:
To minimize the risk of potential safety problems, you
should follow all applicable local and national codes that regulate the
installation and operation of your equipment. These codes vary from
area to area and it is your responsibility to determine which codes
should be followed, and to verify that the equipment, installation, and
operation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from
the failure to follow all applicable codes and standards. We do not
guarantee the products described in this publication are suitable for
your particular application, nor do we assume any responsibility for
your product design, installation, or operation.
If you have any questions concerning the installation or operation
of this equipment, or if you need additional information, please call
Technical Support at 770-844-4200.
This publication is based on information that was available at the
time it was printed. At AutomationDirect.com
improve our products and services, so we reserve the right to make
changes to the products and/or publications at any time without
notice and without any obligation. This publication may also discuss
features that may not be available in certain revisions of the product.
Connector Specifications
Connector Type
24-Pin Molex Style 43025-2400
Number of Pins
24
Pin Spacing
3x3 mm (0.118 x 0.118 in)
Sales 800-633-0405
we constantly strive to
®
2000
P2-16DA-1 Analog Output

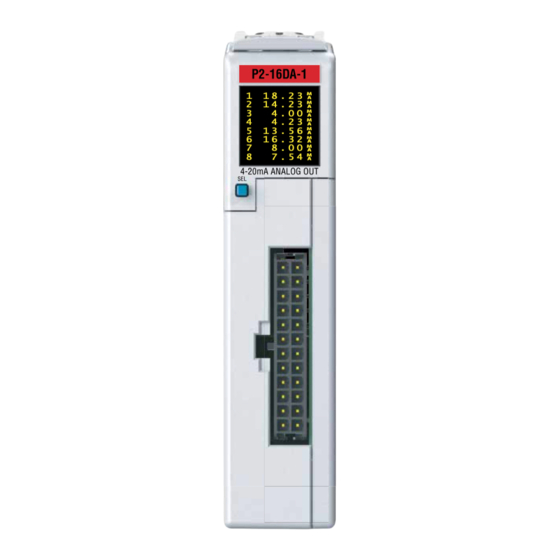

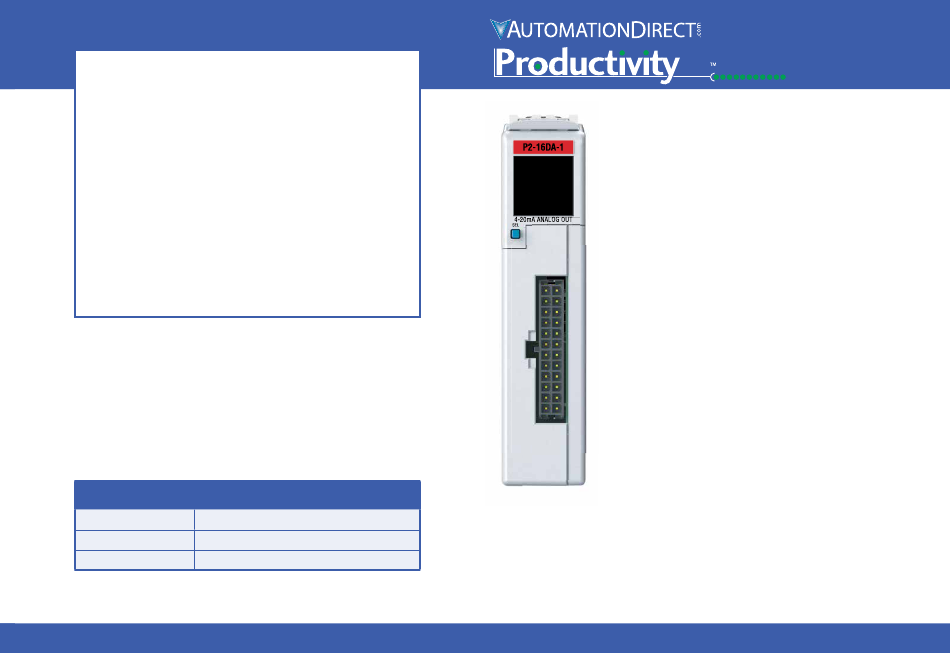

The P2-16DA-1 Current Analog Output Module
1
1 8 . 2 3
M
A
2
1 4 . 2 3
provides sixteen channels of 4-20 mA sourcing
M
A
3
4 . 0 0
M
A
4
4 . 2 3
outputs for use with the Productivity2000 System.
M
A
5
1 3 . 5 6
M
A
6
1 6 . 3 2
M
A
7
8 . 0 0
M
A
8
7 . 5 4
M
A
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connector Specifications . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
OLED Panel Display Menus . . . . . . . . . . . . . . . . . . 7
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
1
Advertisement
Table of Contents
Related Manuals for Automationdirect.com Productivity 2000 P2-16DA-1
Summary of Contents for Automationdirect.com Productivity 2000 P2-16DA-1
-
Page 1: Table Of Contents
This publication is based on information that was available at the General Specifications ..... . 2 time it was printed. At AutomationDirect.com we constantly strive to ®... -
Page 2: General Specifications
General Specifications Output Specifications Output Channels Operating Temperature 0º to 60ºC (32º to 140ºF) Module Signal Output Range 4-20 mA (Sourcing) Storage Temperature -20º to 70ºC (-4º to 158ºF) Output Signal Resolution 16-bit Humidity 5 to 95% (non-condensing) Resolution Value of LSB 4-20 mA = 0.244 μA/count (least significant bit) 1 LSB = 1 count... -
Page 3: Wiring Diagram And Schematic
Wiring Diagram Schematic Current Sourcing Output Circuit INTERNAL MODULE CIRCUITRY 4 - 20mA Load CH1 ADC CH5 ADC CH2 ADC Note: Shield is connected to common at the source device. CH6 ADC CH3 ADC CH7 ADC CH4 ADC CH8 ADC CH9 ADC ISOLATED CH13 ADC... -
Page 4: Module Installation Procedure
Before attempting to use the hot- swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online documen- tation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. www.productivity2000.com... -
Page 5: Wiring Options
Wiring Options Module Configuration ZIPLink Connection System Cable + ZIPLink Module = Complete System Using the Hardware Configuration tool in the Productivity Suite programming software, drag ZIPLink pre-wired and drop the P2-16DA-1 module into the base terminal block cables configuration. 0.5 m (1.6 ft) cable ZL-P2-CBL24 Select Automatic Module Verification or No... -
Page 6: Linear Scaling
Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: The Scale (Non-Linear) function can be used for Non-Linear applications. • Convert an application specific range to a range which is native to the analog output module. • Make other linear conversions in ranges appropriate to the application. Select the Input and Output tags appropriate Select the minimum and maximum for the application. -
Page 7: Oled Panel Display Menus
OLED Panel Display Power On Hold SEL button down to cycle through primary screens. Release button to select screen. Appears DISPLAY DISPLAY DISPLAY PASSED DISPLAY DISPLAY initially UNITS UNITS UNITS SELF SETUP STATUS TEST INFO INFO DECIMAL MILLIAMP COUNTS COUNTS 4-20mA These screens will then auto cycle... - Page 8 Document Name Edition/Revision Date P2-16DA-1-DS 1st Ed. 3/9/2015 Copyright 2015, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity2000.com Tech Support 770-844-4200...
