Output Specifications
Output Channels
Rated Voltage
Operating Voltage Range
Output Type
Maximum Output Current
Maximum Inrush Current
On Voltage Drop
OFF to ON Response
ON to OFF Response
Overcurrent Trip
Minimum Load Current to Avoid Open
Fault Detection
Maximum Leakage Current
Over Temperature Shutdown
Load Resistance to Avoid Open Load
Fault Detection
Status Indicators
External 24V Error Indicator
Fault Condition Indicator
Commons
Recommended External Fuse
External Power Supply Required
*Rev C1 and higher.
Document Name
P2-08TD2P-DS
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
8
24 VDC
21.6 - 26.4 VDC
Sourcing
0.25 A
Self-limited
0.7 VDC
0.5 ms
0.5 ms
0.6 A min., 1.2 A max. > 50ms duration*
113µA
160µA @ 21.6–26.4 VDC
Independent to each output
<58kΩ
Logic Side (8 points)
Logic Side (1 point)
Logic Side (8 points)
9 (non-isolated)
None
24VDC @ 30mA
Edition/Revision
Date
3rd Ed.
2/5/2019

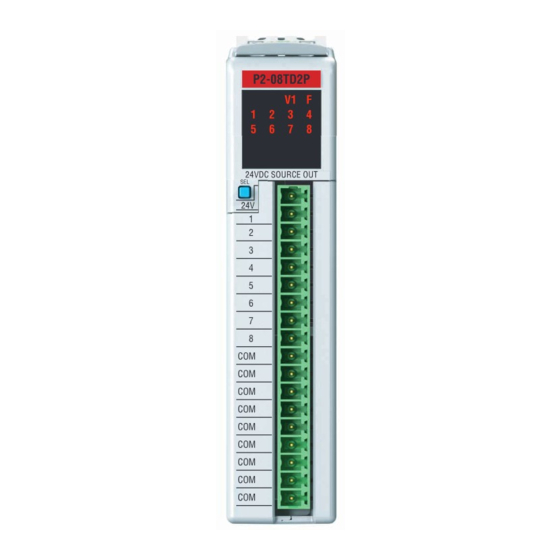

P2-08TD2P Sourcing
Protected DC Output
The P2-08TD2P DC Output Module
provides eight 24 VDC sourcing
outputs with short-circuit and overload
protection for use with the Productivity2000
System.
Output Specifications ..............................................1
Module Installation ..................................................2
Wiring Options .........................................................2
Wiring Diagram and Schematic ...............................3
QR Code .................................................................3
Hot Swap Information ..............................................3
Warning ...................................................................4
Removable Terminal Block Specifications...............4
General Specifications ............................................4
LED Status ..............................................................4
Terminal Block sold separately (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
www.productivity2000.com
2000
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 2000 P2-08TD2P
Summary of Contents for Automationdirect.com Productivity 2000 P2-08TD2P
- Page 1 *Rev C1 and higher. Document Name Edition/Revision Date P2-08TD2P-DS 3rd Ed. 2/5/2019 Terminal Block sold separately (see wiring options on page 2). Warranty: Thirty-day money-back guarantee. Two-year limited replacement. Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide (See www.productivity2000.com for details). Sales 800-633-0405 www.productivity2000.com...
- Page 2 Module Installation Wiring Options ZIPLink Feed Through Modules and Cables¹ WARNING: Do not apply field power until the following steps are completed. See rotate hot-swapping procedure for ZL-RTB20 to seated exceptions. position ZL-RTB20-1 Step One: ZL-RTB20-1 Align module 0.5 m (1.6 ft) cable ZL-RTB20 ZL-P2-CBL18 catch with base slot and...
- Page 3 Before attempting to use the hot-swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online documentation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. Sales 800-633-0405...
- Page 4 Any I/O slot in a Productivity2000 System. This publication is based on information that was available at Use ZIPLink Wiring System or removable terminal the time it was printed. At AutomationDirect.com® we constantly Field Wiring block (not included). See “Wiring Options” on strive to improve our products and services, so we reserve the right page 2.
