WARNING:
To minimize the risk of potential safety problems, you should
follow all applicable local and national codes that regulate the installation
and operation of your equipment. These codes vary from area to area and
it is your responsibility to determine which codes should be followed, and to
verify that the equipment, installation, and operation are in compliance with
the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the
failure to follow all applicable codes and standards. We do not guarantee
the products described in this publication are suitable for your particular
application, nor do we assume any responsibility for your product design,
installation, or operation.
If you have any questions concerning the installation or operation of
this equipment, or if you need additional information, please call Technical
Support at 770-844-4200.
This publication is based on information that was available at the time
it was printed. At AutomationDirect.com
our products and services, so we reserve the right to make changes to
the products and/or publications at any time without notice and without
any obligation. This publication may also discuss features that may not be
available in certain revisions of the product.
Connector Specifications
Connector Type
24-Pin Molex Style 43025-2400
Number of Pins
24
Pin Spacing
3x3mm (0.118x0.118)
Sales 800-633-0405
we constantly strive to improve
®
2000

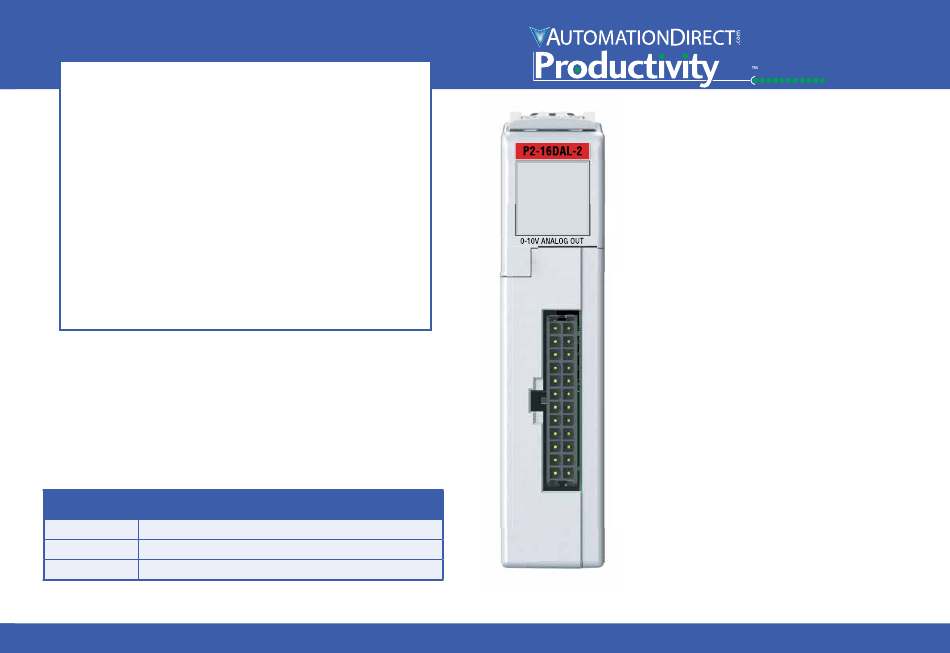

P2-16DAL-2 Analog Output
The P2-16DAL-2 Low Resolution Voltage
Analog Output Module provides sixteen
channels of 0-10VDC outputs for use with the
Productivity2000 System.
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Connector Specifications . . . . . . . . . . . . . . . . . . . . . 1
General Specifications . . . . . . . . . . . . . . . . . . . . . . 2
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring Diagram and Schematic . . . . . . . . . . . . . . . . 3
Module Installation Procedure . . . . . . . . . . . . . . . . . 4
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hot Swap Information . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 5
Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Non-Linear Scaling . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terminal Block sold separately, (see wiring options on page 5).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement. (See www.productivity2000.com for details).
www.productivity2000.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 2000 P2-16DAL-2
Summary of Contents for Automationdirect.com Productivity 2000 P2-16DAL-2
-
Page 1: Table Of Contents
Warning ........1 it was printed. At AutomationDirect.com we constantly strive to improve ®... -
Page 2: General Specifications
General Specifications Output Specifications Output Channels Surrounding Temperature 0º to 60ºC (32º to 140ºF) Module Signal Input Range 0-10 V Storage Temperature -20º to 70ºC (-4º to 158ºF) Output Signal Resolution 12-bit Humidity 5 to 95% (non-condensing) Resolution Value of LSB 0-10 V = 2.44 mV per count (least significant bit) 1 LSB = 1 count... -
Page 3: Wiring Diagram And Schematic
Wiring Diagram Schematic Voltage Output Circuits INTERNAL MODULE CIRCUITRY 0 - 10 VDC Load CH1 ADC AC or DC CH5 ADC Power Supply CH2 ADC CH6 ADC CH3 ADC CH7 ADC CH4 ADC CH8 ADC ±10 VDC Load 24VDC+/-10% CH9 ADC ISOLATED Load CH13 ADC... -
Page 4: Module Installation Procedure
Before attempting to use the hot-swap feature, be sure to read the hot-swap topic in the programming software’s help file or our online docu- mentation at AutomationDirect.com for details on how to plan your installation for use of this powerful feature. www.productivity2000.com... -
Page 5: Wiring Options
Wiring Options Module Configuration ZIPLink Connection System Using the Hardware Configuration tool in the Cable + ZIPLink Module = Complete System Productivity Suite programming software, drag ZIPLink pre-wired and drop the P2-16DAL-2 module into the base terminal block cables configuration. Select Automatic Module Verification or No 0.5m (1.6FT) cable ZL-P2-CBL24... -
Page 6: Linear Scaling
Linear Scaling Non-Linear Scaling The Scale (Linear) function can be used to: The Scale (Non-Linear) function can be used for Non-Linear applications. • Convert analog field input signals from the range which is native to the analog input module to an application specific range. •... - Page 7 Sales 800-633-0405 www.productivity2000.com...
- Page 8 Document Name Edition/Revision Date P2-16DAL-2-DS 1st Ed. 10/21/2015 Copyright 2015, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity2000.com Tech Support 770-844-4200...
