Output Specifications
Outputs per Module
Output Type
Rated Voltage
Operating Voltage Range
Maximum Output Current
Minimum Load Current
Maximium Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Recommended External Fuse
External Power Supply Required
Sales 800-633-0405
15 sinking
N-channel MOSFET, open drain
3.3–24 VDC
2.8–30 VDC
1A per point / 8A per common
1mA
0.3 mA @ 30VDC
0.18 VDC @ 1A
4A for 40ms, 6A for 10ms
≤0.5ms
≤0.5ms
Logic Side (15 points)
2 non-isolated
None
12–24 VDC (-15% / +20%) @ 22mA
P2-15TD1 Sinking DC Output

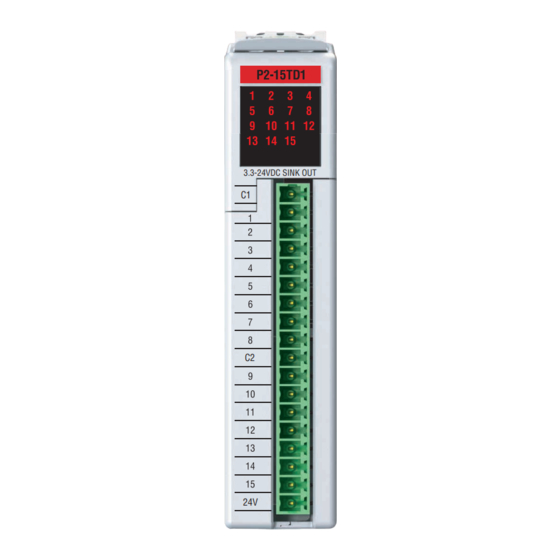

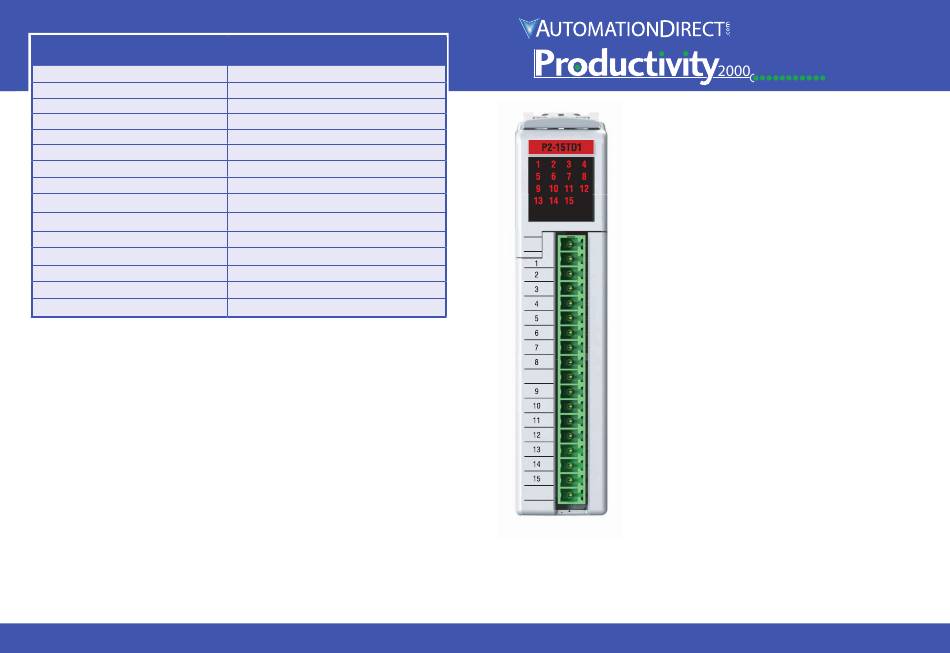

The P2-15TD1 DC Output Module
provides fifteen outputs that sink up to
1A per output from loads powered from
3.3–24 VDC supplies for use with the
3.3-24VDC SINK OUT
Productivity2000 System.
