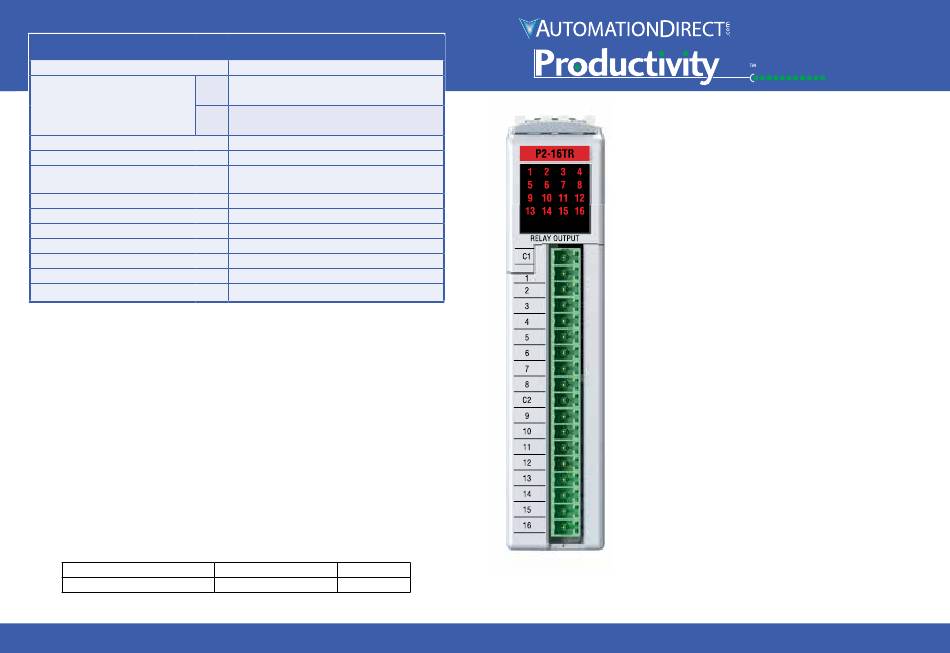

Automationdirect.com Productivity 2000 P2-16TR Manual

Output Specifications
Outputs per Module
(CE)
Operating Voltage Range
(UL)
Output Type
AC Frequency
Maximum Output Current @ Temp
Minimum Load Current
Maximum Inrush Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
External Fuses (user supplied)
Document Name
P2-16TR-DS
Copyright 2014, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
16
6.25-24 VDC (-15%/+20%)
6-240 VAC (-15%/+10%)
6-27 VDC (-15%/+10%)
6-240 VAC (-10%/+10%)
Relay, form A (SPST)
47 - 63 Hz
1A / point, 8A / common @ 60°C
for both AC and DC
5mA @ 5VDC
4A for 10ms
m 10ms
m 10ms
Logic Side (16 points)
2 Isolated (8 point / common)
8A Max
Edition/Revision Date
1st Ed. 8/15/2014
P2-16TR Relay Output

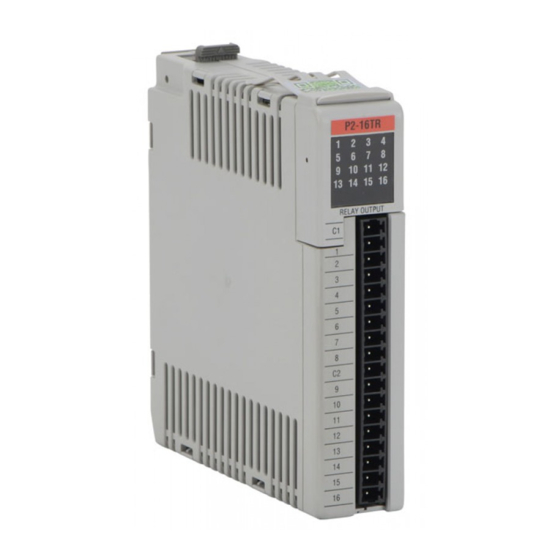

The P2-16TR Relay Output Module provides
sixteen 1A surge-protected outputs with
two isolated commons for use with the
Productivity2000 system.
Output Specifications ............................................... 1
Module Installation ................................................... 2
QR Code .................................................................. 2
Hot Swap Information ............................................... 2
Wiring Options .......................................................... 3
Wiring Diagram and Schematic . ...............................3
Warning .................................................................... 4
Typical Relay Life ..................................................... 4
Removable Terminal Block Specifications................4
General Specifications ............................................. 4
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited replace-
ment. (See www.productivity2000.com for details).
