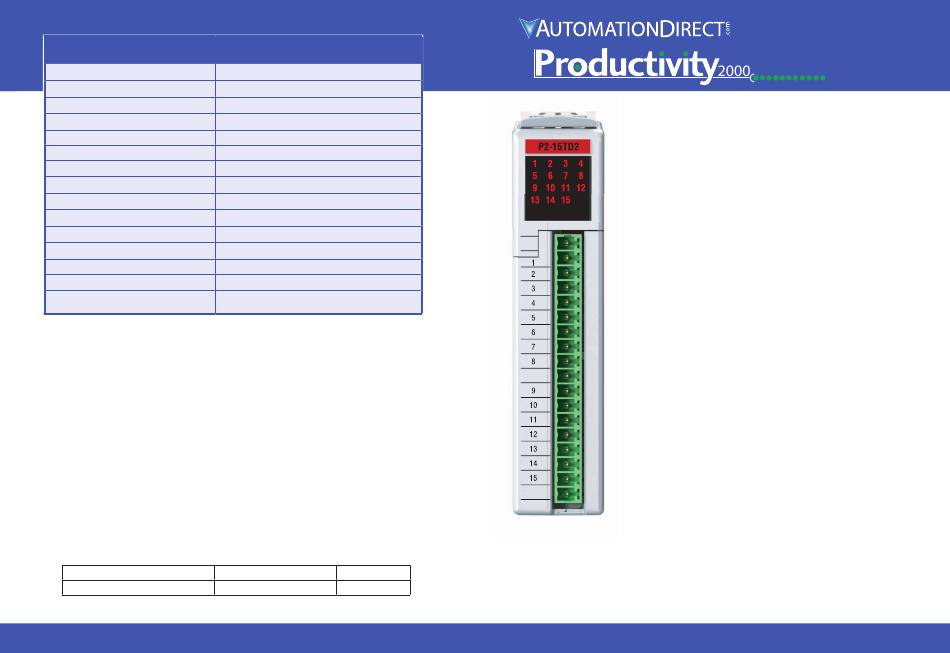

Automationdirect.com Productivity 2000 P2-15TD2 Manual

Output Specifications
Outputs per Module 15 sourcing
Output Type P-channel MOSFET, open source
Rated Voltage 12–24 VDC
Operating Voltage Range 10.2–28.8 VDC
Maximum Output Current 1A per point / 8A per common
Minimum Load Current 1mA
Maximum Leakage Current 0.3 mA @ 28.8 VDC
On Voltage Drop 0.18 VDC @ 1A
Maximum Inrush Current 4A for 40ms, 6A for 10ms
OFF to ON Response ≤0.5 ms
ON to OFF Response ≤0.5 ms
Status Indicators Logic Side (15 points)
Commons 1
Recommended External Fuse None
External Power Supply Required 12–24 VDC (-15% / +20%) @ 22mA
Document Name Edition/Revision
P2-15TD2-DS 2nd Ed.
Copyright 2016, AutomationDirect.com Incorporated/All Rights Reserved Worldwide
Sales 800-633-0405
Date
Terminal Block sold separately, (see wiring options on page 2).
9/5/2019
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
P2-15TD2 Sourcing

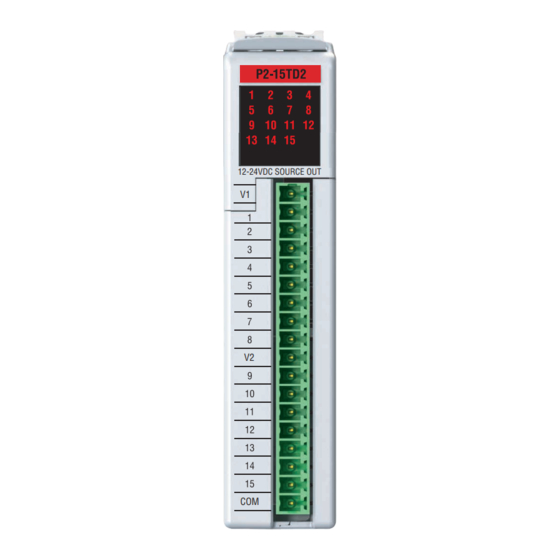

The P2-15TD2 DC Output Module
provides fifteen outputs that source up to
1A per output from 12–24 VDC supplies for
12-24VDC SOURCE OUT use with the Productivity2000 System.
V1
Output Specifications ............................................... 1
Application Notes ..................................................... 1
Module Installation ................................................... 2
Wiring Options .......................................................... 2
Wiring Diagram and Schematic ................................ 3
QR Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
V2 Removable Terminal Block
Specifications ........................................................... 4
General Specifications ............................................. 4
COM
www.productivity2000.com
®
DC Output
1
