Automationdirect.com Productivity 2000 P2-08TD1S Manual

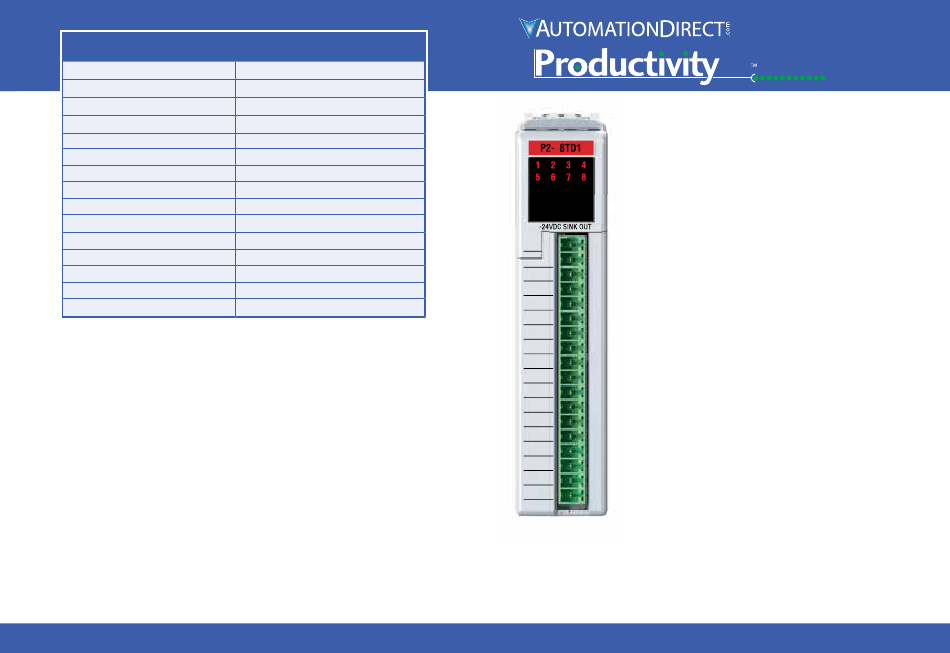

Output Specifications
Outputs per Module 8 sinking
Output Type N-channel MOSFET, open drain
Rated Voltage 3.3–24 VDC
Operating Voltage Range 2.8–30 VDC
2A per point
Maximum Output Current
Minimum Load Current 0.4 mA
Maximum Leakage Current 0.3 mA @ 30VDC
On Voltage Drop 0.2 VDC @ 2A
Maximum Inrush Current 4A for 40ms, 6A for 10ms
OFF to ON Response ≤0.5 ms
ON to OFF Response ≤0.5 ms
Status Indicators Logic Side (8 points)
Commons 2 isolated (4 points / common)
Recommended External Fuse None
External Power Supply Required 12–24 VDC (-15% / +20%) @12mA
Sales 800-633-0405

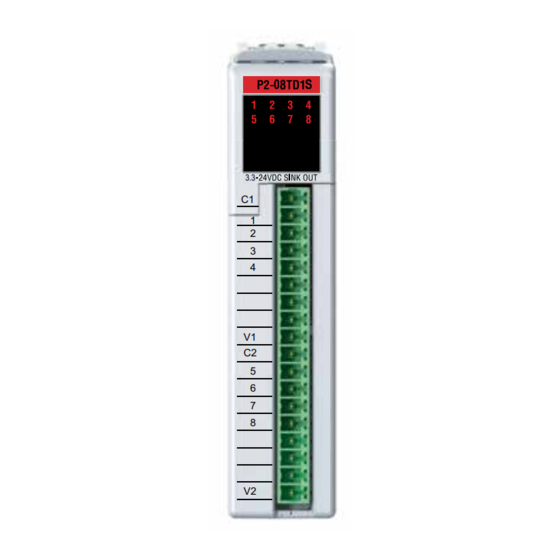

P2-08TD1S Sinking DC Output
0 S
The P2-08TD1S DC Output Module
provides eight outputs, isolated four per
common, that sink up to 2A per output from
3.3 loads powered from 3.3–24 VDC supplies
for use with the Productivity2000 system.
C1
1
Output Specifications ............................................... 1
2
Module Installation ................................................... 2
3
Wiring Options .......................................................... 2
4
Wiring Diagram and Schematic ................................ 3
QR Code .................................................................. 3
Hot Swap Information ............................................... 3
Warning .................................................................... 4
V1
Removable Terminal Block
C2
Specifications ........................................................... 4
General Specifications ............................................. 4
5
6
7
8
V2
Terminal Block sold separately, (see wiring options on page 2).
Warranty: Thirty-day money-back guarantee. Two-year limited replacement.
(See www.productivity2000.com for details).
