7

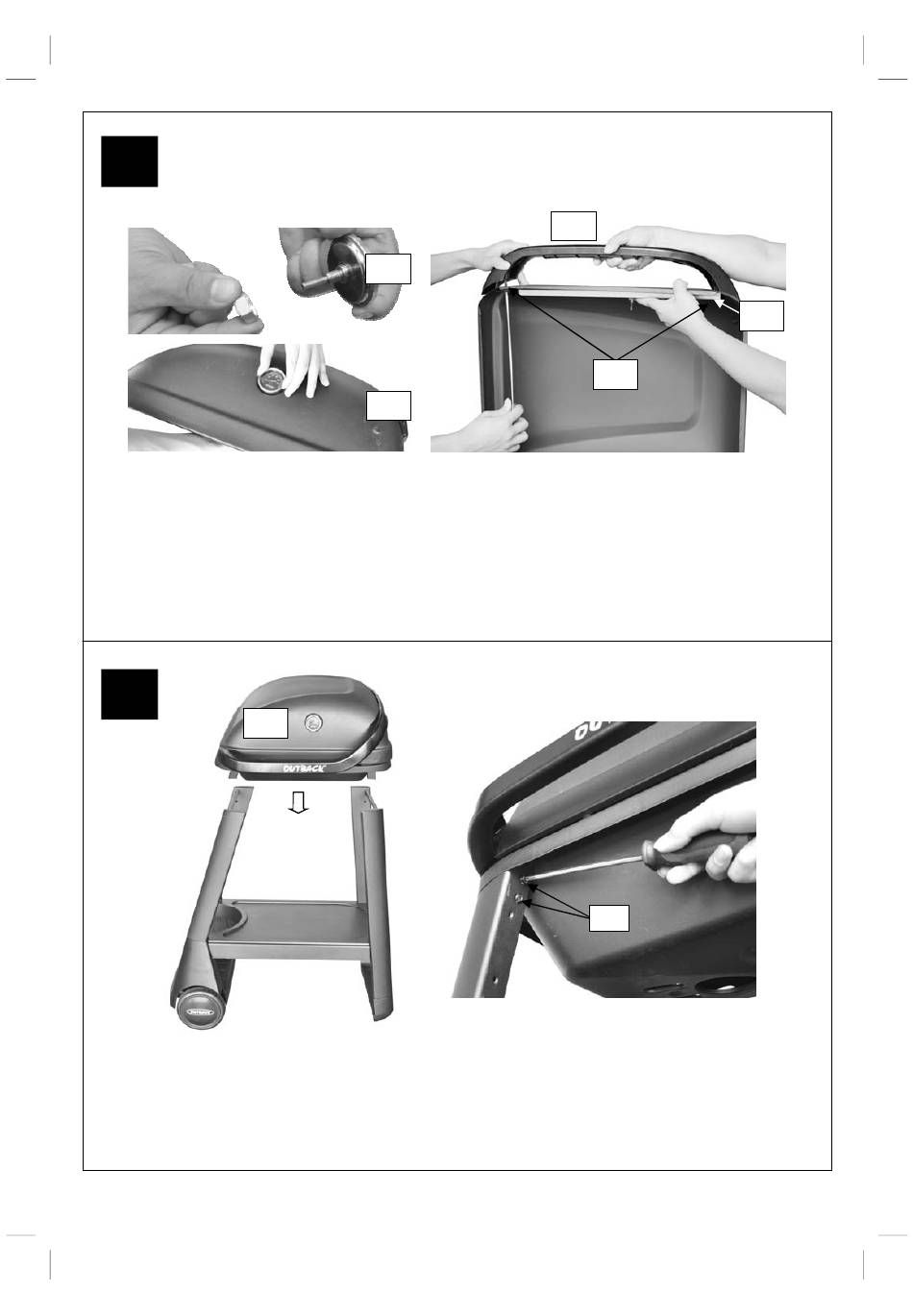

Unscrew the locknut from the Heat Indicator (A4). Insert heat indicator through the Hood
(A1) and fix it by tightening its locknut.
Attach the Hood Handle (A2) and Hood Handle Heat Shield (A3) onto the hood using the
M5x15 Bolts (D2x2pcs).
8
B1
Carefully place the Barbecue Body (B1) onto the tops of the legs.
Attach the barbecue body to the trolley assembly using the M6x15 Bolts (D1x8pcs). Ensure the tabs
on the body fit over the legs as shown in the diagram and do not go down inside of the legs.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN
PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.
A4
A1
8
A2
D2
D1
A3
