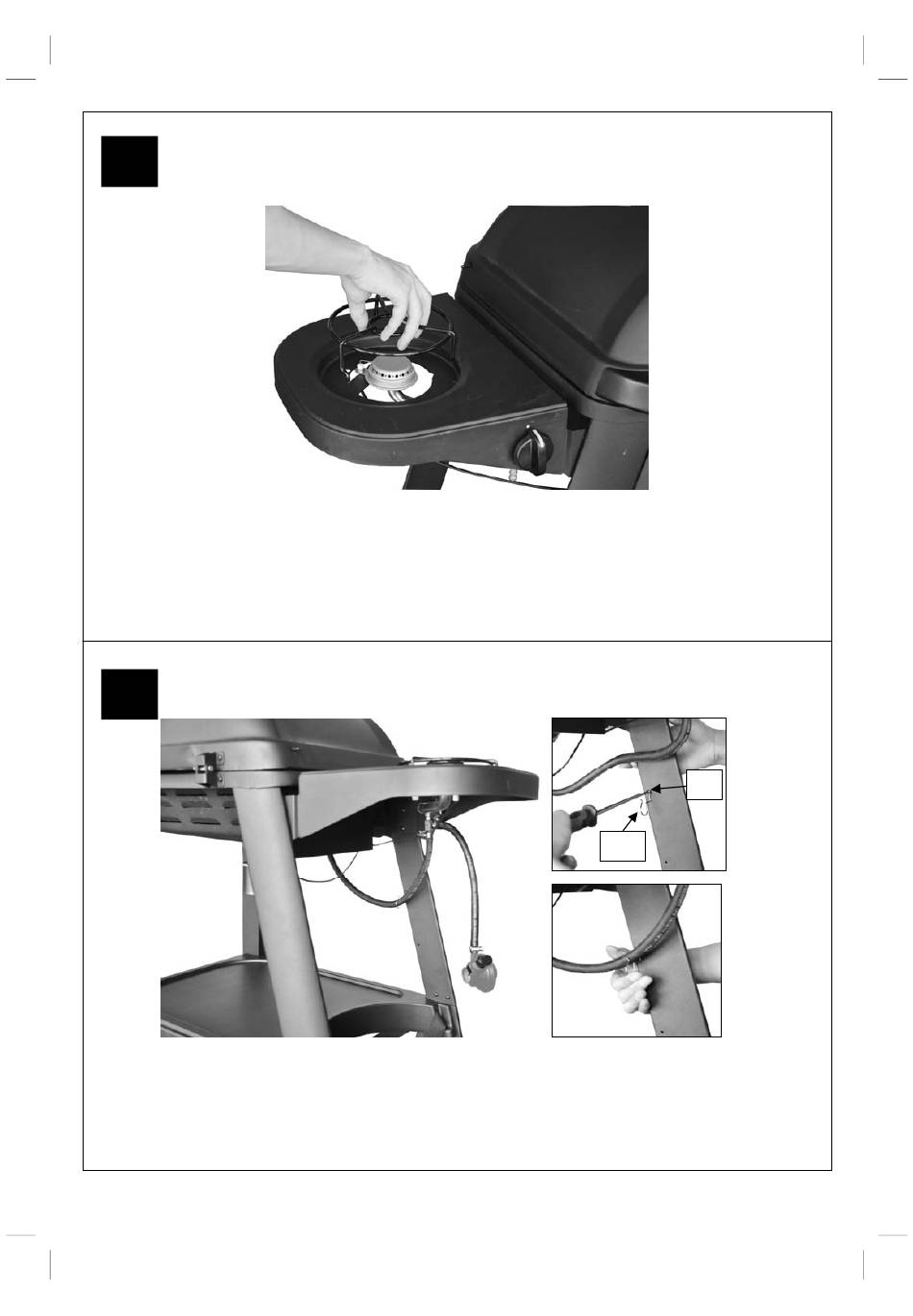

Place the Side Burner Grid (C5) onto the side burner shelf.
NOTE: Make sure the base of cooking utensil to put on the side burner is larger than 150mm
and smaller than 220mm.
24
Fix the Hose Clip (D12) into the upper hole of the front short leg using a ST4.0x10 Screw
(D5), then feed the hose through the clip as shown.
Important: Regularly check the hose positioning to ensure that it is not in contact with any
hot surfaces, such as the bottom of the body or the heat shield.
D12
16
D5
