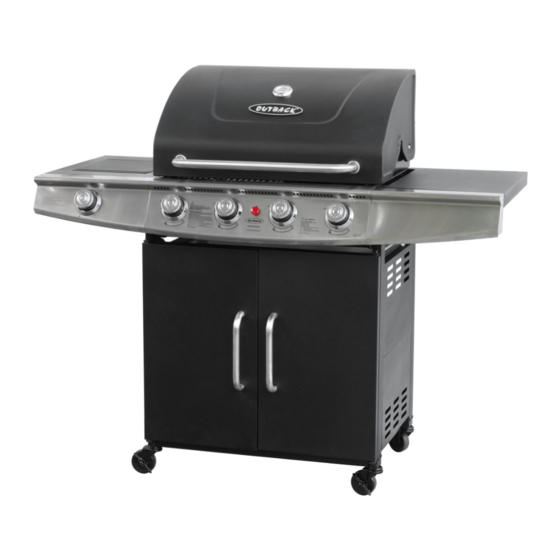

Assembly and Operating Instructions for
Phoenix 4 Burner Black and Phoenix 4
Burner SS Gas Barbecues
Photographs are not to scale.
Specifications subject to
change without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
WARNING
•
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced.Check
that the hose connections are tight and leak test each time you reconnect the gas
bottle
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outback Phoenix 4 Burner Black
Summary of Contents for Outback Phoenix 4 Burner Black
- Page 1 Assembly and Operating Instructions for Phoenix 4 Burner Black and Phoenix 4 Burner SS Gas Barbecues EN (Europe) Photographs are not to scale. Specifications subject to 0359 change without prior notice. • For outdoor use only. Not for commercial use.
-
Page 2: Table Of Contents
1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Phoenix 4 Burner Phoenix 4 Burner CODE PART Black Stainless Steel Hood (Pre-Assembled to Body) Hood Handle HOOD Heat Indicator and Nuts... - Page 3 2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
- Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice. CODE PART ILLUSTRATION CODE PART ILLUSTRATION ST4.0x10 M6x40 Screw Bolt M4x10 M6 Nut Bolt M6x15 Bolt...
-
Page 5: Warming Rack
4. Assembly IMPORTANT! • TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set • The assembly of this barbecue requires 2 people. • Carefully unpack the trolley and body boxes and remove all internal packaging before commencing assembly. - Page 6 Attach the Cabinet Back Panel (C15) to the assembled portion of the cabinet using the ST4.0x10 Screws (D1). NOTE: These screw holes have weld nuts, so no nuts are required for these screws. Attach the Upper Body Support (C8) to the Attach the Gas Bottle Support (C17) to the front legs using M6x15 Bolts (D3).
-
Page 7: Barbecue Body
Screw the Casters (C18) into the left legs and the Lockable Casters (C19) into the right legs. Carefully turn the completed cabinet over, right side up. Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D4) as shown. -
Page 8: Burner
Connect the gas hose to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner. -
Page 9: Control Panel
Insert M4x10 Bolts (D2) through the side burner shelf and side of the Control Panel (B3) and tighten. Repeat this process for the right side shelf. Fix the Electronic Ignition Assembly (C20) and Heat Shield (C21) to the front left leg by inserting two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat shield and screw into the front left leg. - Page 10 Phoenix 4 Burner Black / Stainless Steel Connect the wires to the electronic ignition Electronic Ignition Assembly Diagram assembly as shown in the diagram to the right. Black Black Insert the electronic ignition battery (not sup- plied) into the battery compartment, ensuring...
- Page 11 Attach Drip Tray Right Bracket (B9) to legs using ST4.0x10 Screws (D1) as shown. Repeat above process for Drip Tray Left Bracket (B8). Fit the Doors (C11, C12) to the cabinet by depressing the spring pins and placing into the cabinet. Attach the Basket (C14) onto the right door as shown.
- Page 12 Carefully lay the Flame Tamer (B6) into the body ensuring it lies level within the body. Lay the Grills (B7) into place. NOTE: No lava rock is required when using the flame tamer. Insert the Drip Tray (B11) by sliding it underneath the barbecue body.
-
Page 13: Knob
Step 6 - If bubbles form over any of the joints there is a leak • Turn off the gas supply at the gas bottle • Retighten all joints • Repeat test • If bubbles form again do not use the barbecue and contact your local Outback distribu- tor for assistance. -
Page 14: Important Information
5. Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully connections of the barbecue after assembly. before assembly and use of your barbecue. Leak test annually, and whenever the gas Retain these... - Page 15 THE BARBECUE TO OPERATE SAFELY AND Your barbecue is not designed to be used EFFICIENTLY. USE OF AN INCORRECT OR with more than 50% of the cooking area as a FAULTY REGULATOR IS DANGEROUS AND solid plate — this includes baking dishes. WILL INVALIDATE ANY WARRANTY.
-
Page 16: Cooking Grill
barbecue or side burner with the hood or lid OFF position and turn all other burners to a closed. LOW to MEDIUM position. • Ensure all knobs are in the off position . Close the hood to cook the food ‘indirectly’. Open the gas control valve on the gas Avoid lifting the hood unnecessarily as heat is bottle or regulator. -
Page 17: Drip Tray
• Insert the pointed end of the spit rod into Turn off the gas supply at the gas bottle • the motor. Lay the other end of the spit rod Keep everyone at a safe distance from the onto the opposite bracket. barbecue and wait until the fire has burnt Light grill... - Page 18 may result in damage to the barbecue. It may and severely damage the barbecue. This is not be necessary to dry the barbecue and the a fault in the barbecue and is therefore not inside of the cover. It is possible for mould to covered by the terms of the warranty.
-
Page 19: Technical Specifications
37 mbar LPG mixture 0.79mm 50 mbar LPG mixture Gas Consumption: Phoenix 4 Burner Black: 935g/hr Phoenix 4 Burner Stainless Steel: 935g/hr Side Burner: 201g/hr Countries of Use: BE, CY, CZ, EE, FR, GR, IE, IT, LV, LT, LU, PT, SK, ES,... -
Page 20: Ignition Button
11. Troubleshooting Problem Possible Cause Solution Burners will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas Clean jets and gas hose hose Electrode or ignition button wire is...
