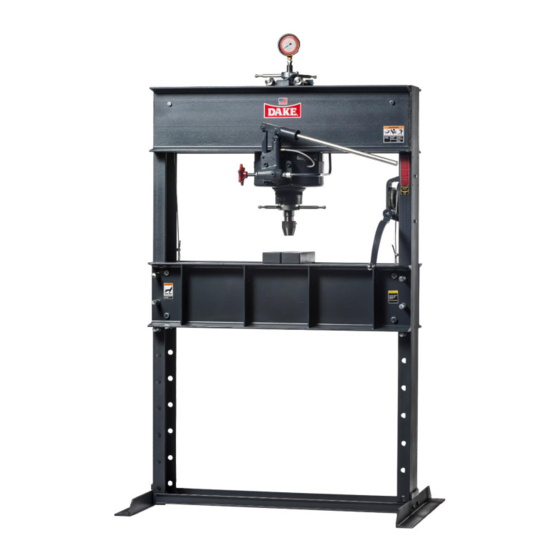

DAKE HAND-OPERATED HYDRAULIC PRESS
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
724 Robbins Road
Grand Haven, MI 49417
Model 75H
INSTRUCTIONAL MANUAL
Phone: 800.937.3253
Fax: 800.846.3253
www.dakecorp.com
customerservice@dakecorp.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Dake 75H
Summary of Contents for Dake 75H
- Page 1 DAKE HAND-OPERATED HYDRAULIC PRESS Model 75H INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation www.dakecorp.com 724 Robbins Road Phone: 800.937.3253 customerservice@dakecorp.com Fax: 800.846.3253...
-
Page 2: Table Of Contents
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ..........5 SPECIFICATIONS ....................6 SAFETY ........................ 6 SET UP ......................... 8 FILLING PRESS WITH OIL ................ -
Page 3: Dake Standard Limited Warranty
Purchasers who notify Dake within the warranty period will be issued a Case number and/or a Return Material Authorization (RMA) number. If the item is to be returned per Dake’s request, the RMA number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA will not be processed. - Page 4 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Safeguarding The Point Of Operation
ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. Dake strongly recommends that Dake press users obtain a copy of the current American National Standard Institute (ANSI) B11.2 standard, for a more complete understanding of their responsibilities. -
Page 7: Specifications
In the space provided record the serial number and model number of the machine. This information is only found on the black and gold Dake tag shown below. If contacting Dake this information must be provided to assist in identifying the specific machine. - Page 8 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com • This machine is intended to be operated by one person. This person should be conscious of the press ram movement not only for themselves but also for persons in the immediate area of the machine.
-
Page 9: Set Up
FAILURE TO DO SO WILL CAUSE DAMAGE TO THE HOIST. b. If a tracking problem exists, contact the Dake factory for instructions. 6. Fasten nosepiece to the end of the screw using the thumbscrew included. -
Page 10: Operation
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com OPERATION CONTROLS Hand Crank: (item 62 & 63) on the side of the press is to assist in lowering and raising the table of the press once the table pins are removed. Do not forget to replace the pins once you have the table at the desired height. -
Page 11: Troubleshooting
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com TROUBLESHOOTING PUMP PACKING LEAKAGE If oil leaks past the pump packing, tighten the pump packing nut (item 9) until the pump handle moves with resistance, then slack off just enough to cause the handle to stay in position by itself. -
Page 12: Other Troubleshooting
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com OTHER TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1) Reservoir is over filled.* Oil leaking from 1) Drain excess oil. 2) Piston Packing is worn or piston oil seal. 2) Replace Piston Packing. -
Page 13: Exploded Views & Parts Lists
Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEWS & PARTS LISTS HAND PUMP ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Retaining Ring (3/8”) Pump Body 43972 Ball Valve (Ø1/2”) Pump Plunger... - Page 14 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com WORKHEAD ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Pump Gasket Piston Leather (Serial No. < 192522) Reservoir Screw Nose – Flat Packing Ring 17942 Screw Nose –...
- Page 15 Dake Corporation 724 Robbins Road Grand Haven, MI 49417 www.dakecorp.com GENERAL ASSEMBLY 907003 REV112019...
- Page 16 Vent Tube 67761 1/8” NPT Fitting Roller 71413 17’ Roller Shaft Cable 45953 Retaining Ring 43975 Cable Clamps Dake Name Plate 81002 Table Spacer 86488 Handwheel 10631 Hex Head Bolt 79983 (5/8”-11 x 10-1/2”) V-Block Hex Nut (5/8”-11) Table Plate 43917 Lock Washer (5/8”)
-
Page 17: Ordering Information
Please contact factory for current prices. ORDERING INFORMATION Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
