RUGGEDCOM RSG2100PF
Installation Guide
Communication Ports
The RUGGEDCOM RSG2100PF can be equipped with various types of communication ports to enhance its abilities
and performance.
Module Assignment
1
2

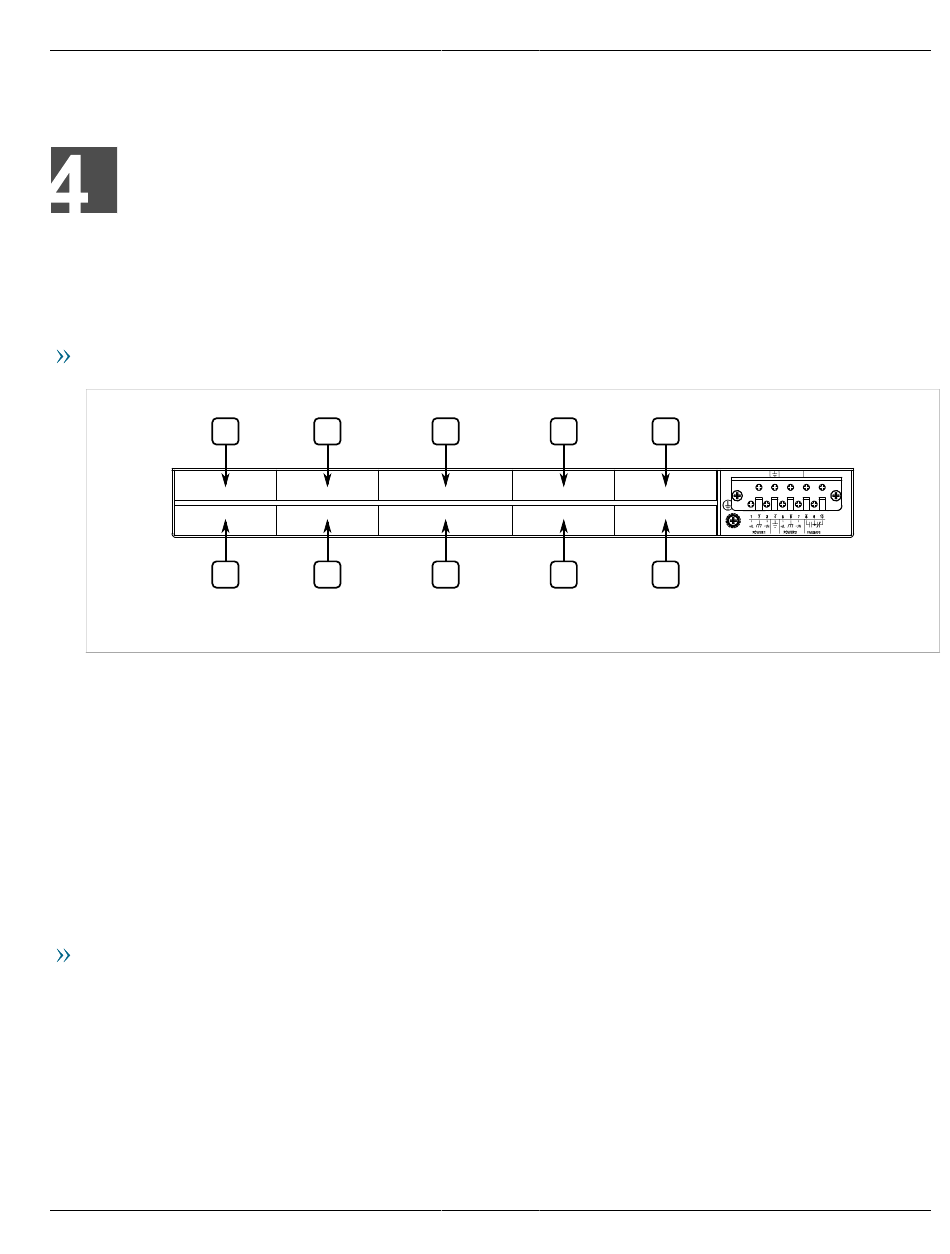

Figure 12: Module Assignment
Each type of module has a specific location in the RUGGEDCOM RSG2100PF chassis:
• Slot 5 supports a pair of Gigabit Ethernet (1 Gbps) ports
• Slot 6 supports a single Gigabit Ethernet (1 Gbps) port
• Slot 9 houses a standard two-port 10/100Base-TX 802.3af (PoE) module
• Slot 10 supports an additional two-port 10/100Base-TX 802.3af (PoE) module for extra PoE ports
• All other ports support any combination of fiber or copper Ethernet connectors up to 100 Mbps
The exact configuration of the device can be determined by reading the factory data file through the ROS-F user
interface. For more information about how to read the factory data file, refer to the ROS-F User Guide for the
RUGGEDCOM RSG2100PF.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity state of the port.
3
5
4
6
7
9
8
10
Chapter 4
Communication Ports
21
