RUGGEDCOM RSG2100PF
Installation Guide
Section 4.3
Fiber Optic Ethernet Ports
Fiber optic Ethernet ports are available with either MTRJ (Mechanical Transfer Registered Jack), LC (Lucent
Connector), SC (Standard or Subscriber Connector) or ST (Straight Tip) connectors. Make sure the Transmit (Tx)
and Receive (Rx) connections of each port are properly connected and matched to establish a proper link.
1

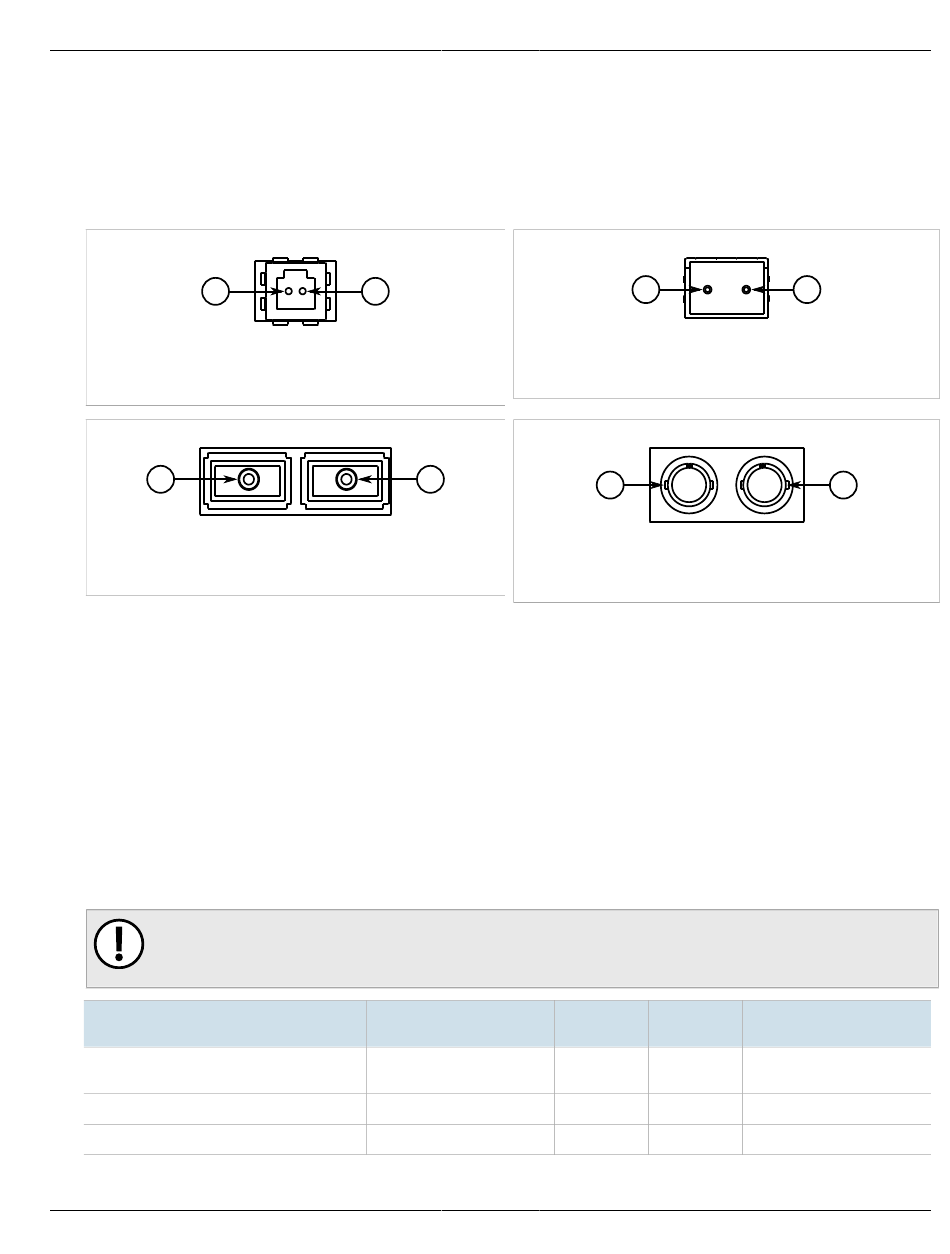

Figure 17: MTRJ Port
1. Tx Connector 2. Rx Connector
1
Figure 19: SC Port
1. Tx Connector 2. Rx Connector
For specifications on the available fiber optic Ethernet ports, refer to
Specifications".
Section 4.4
SFP Transceivers
The RUGGEDCOM RSG2100PF features two Small Form-Factor Pluggable (SFP) transceiver sockets, which are
compatible with a wide array of SFP transceivers available from Siemens.
The following SFP transceivers are compatible with the RUGGEDCOM RSG2100PF. For more information, including
installation/removal instructions and ordering information, refer to the
[https://support.industry.siemens.com/cs/ww/en/view/109482309].
IMPORTANT!
Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability
as a result of performance issues related in whole or in part to third-party components.
SFP Transceiver
RUGGEDCOM SFP1112-1
RUGGEDCOM SFP1122-1SX
RUGGEDCOM SFP1122-1SX2
Fiber Optic Ethernet Ports
2
Figure 18: LC Port
1. Tx Connector 2. Rx Connector
2
Figure 20: ST Port
1. Tx Connector 2. Rx Connector
Order Code
6GK6000-8CG01-0AA0
6GK6000-8FG51-0AA0
6GK6000-8FE58-0AA0
1
1
Section 5.6, "Fiber Optic Ethernet Port
RUGGEDCOM SFP Transceiver Catalog
Speed
a
Mode
(Mbit/s)
b
10/100/1000
CAT-5e
Copper
1000
MM
1000
MM
Chapter 4
Communication Ports
2
2
Nominal Distance (km)
0.1
0.5
2
25
