Uplift Desk UPL021 Instructions

Package Contents:

Dual arm
Clamp
adapter
fig. 1 fig. 2
min thickness
1.25''
UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
Vesa mount
(qty 2)
Horizontal arm
Gas arm
(qty 2)
(qty 2)

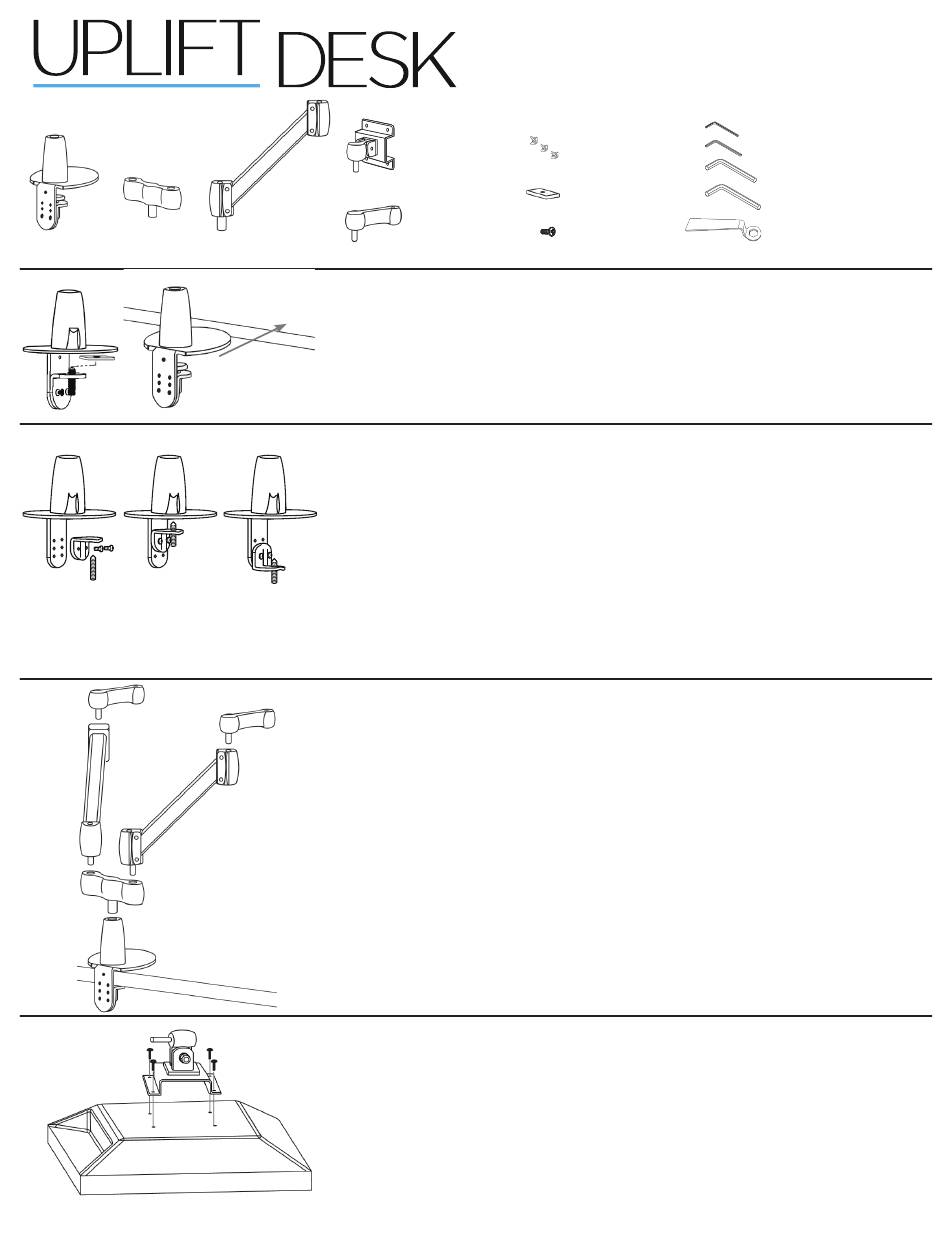

Step 1

Attach the Clamp to your desktop by placing the washer at the top of the
Clamp's bolt, and sliding it onto your desktop. Using the 6.5mm Allen wrench,
tighten the bolt until it is secure.

Step 2 (optional)

fig. 3
If the Clamp does not fit on your desk, you can adjust the clamp.
Unscrew the two bolts and remove the lower clamp from the main Clamp
assembly, and unscrew the bolt (see figure 1).
For the minimum size, reassemble the clamp as shown in Figure 2. This will fit
desks 1.25'' thick. For the maximum size, reassemble the clamp as shown in Fig-
max thickness
ure 3. This will fit desks up to 3.5'' thick.
3.5''
Once the Clamp has been set up to fit your thicker desktop, perform the actions
in Step 1 above.

Step 3

Insert the Dual arm adapter into the Clamp.
Insert the two Gas arms into the Dual arm adapter.
Insert both Horizontal arms into each Gas arm.

Step 4

Place monitors face down on a flat surface, making sure not to scratch your
monitor screens.
Attach the Vesa mounts to the back of each monitor using a Phillips screwdriver
and the eight (8) Screws provided. The mount is designed to fit the industry
standard VESA 75mm & 100mm hole patterns.
®

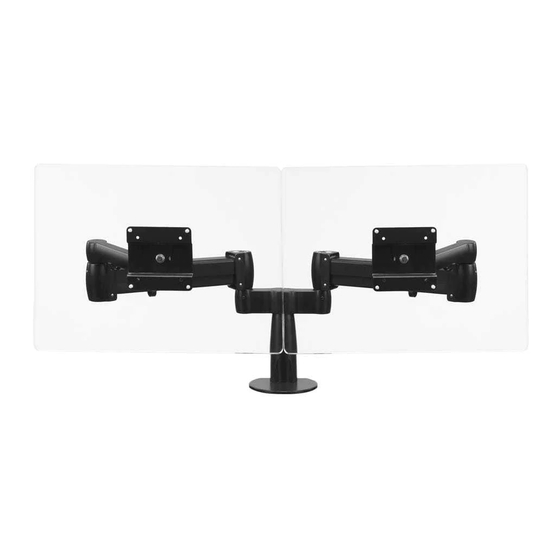

Dual Monitor Arm
UPL021
Wire clips
(qty 6)
Washer
Screws
(qty 8)
3mm Allen wrench
4mm Allen wrench
6mm Allen wrench
6.5mm Allen wrench
13mm Flat wrench
UPL121/R02
