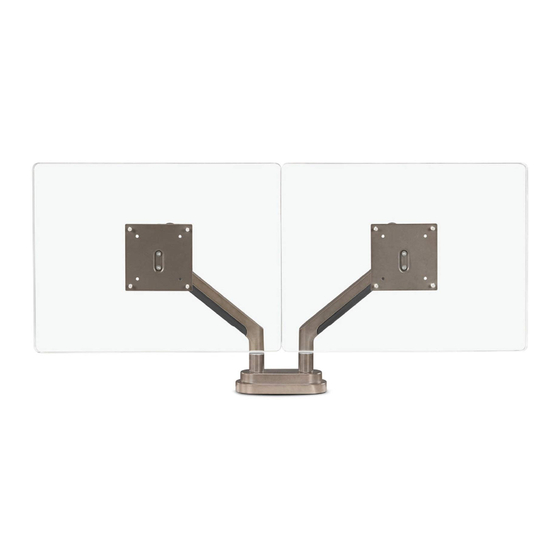

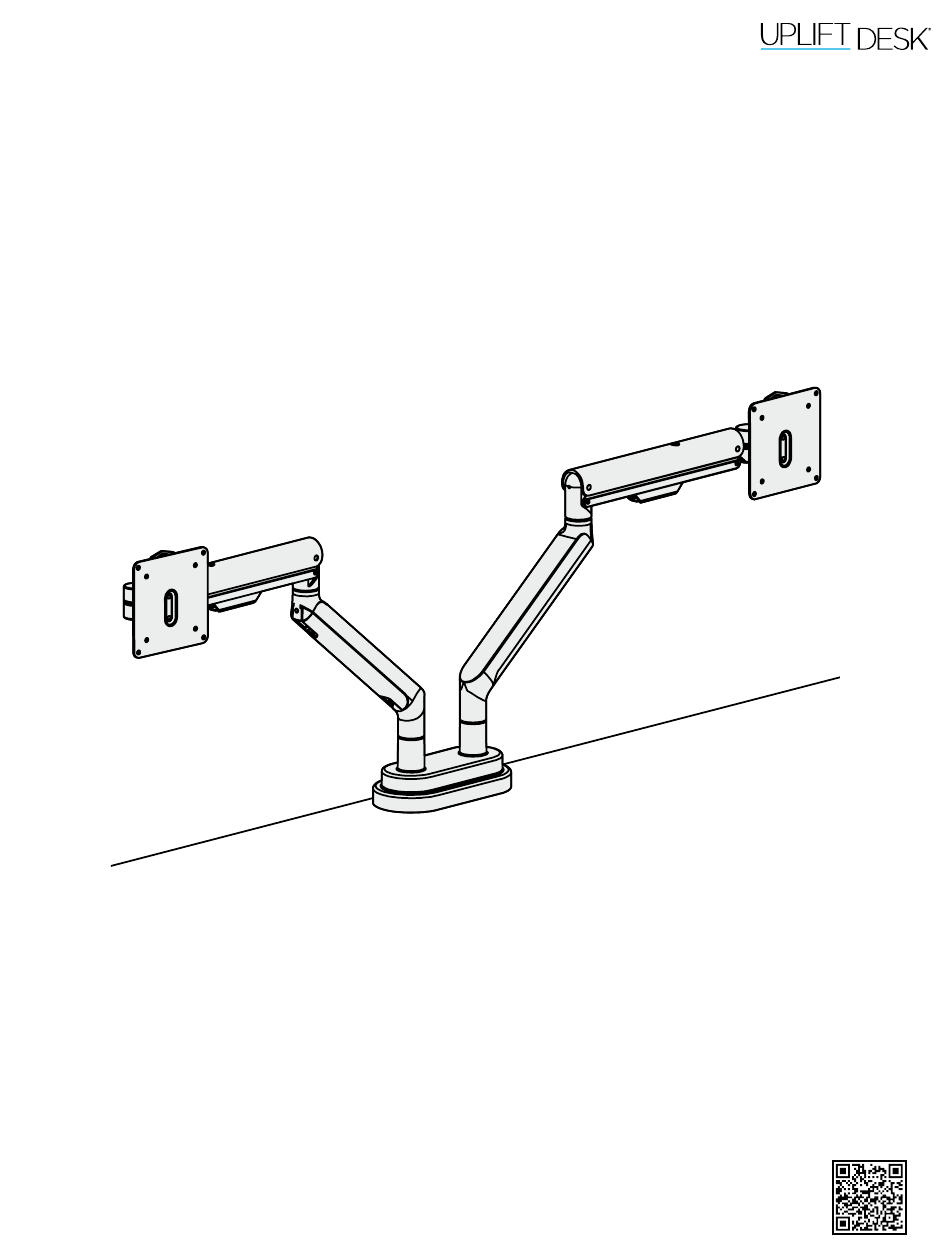

- Page 1 Zilker Dual Monitor Arm MON002 Scan QR code for product webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved...
- Page 2 Safety and Warnings CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. Warning: This product contains a spring mechanism that can cause injury. Be careful when removing monitors as the arm can spring up when the weight of the monitor is removed.
- Page 3 3. 0.75’’ 3.75’’ Clamp Note: If you’re mounting this to an UPLIFT V2 4-Leg Bolt Desk, 2.5’’ will be the maximum thickness that will work with the clamp. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 Step 2.2 - Bolt-through Method A. To mount your monitor arm through a hole in your desktop, first measure the hole. It must be between a minimum of 0.4’’ and a maximum of 3.15’’ in diameter. B. Prepare the Base for the Bolt-through mount by first loosening the screw under the clamp with the 6 mm Allen Wrench.
- Page 5 Spring Arm toward the “+”. C. Keep adjusting the tension until the monitor arm holds its position when you let it go. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 fig. 5 fig. 6 fig. 7 Step 7 A. Under the Spring Arm, there is a clip through which your monitor’s wires can run. (see fig. 5). B. Inside the Extension Arm is a channel accessible by a removable cover. Slide the cover up & out to place your wires, then replace the cover in the reverse motion, in &...
- Page 7 Notes © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
