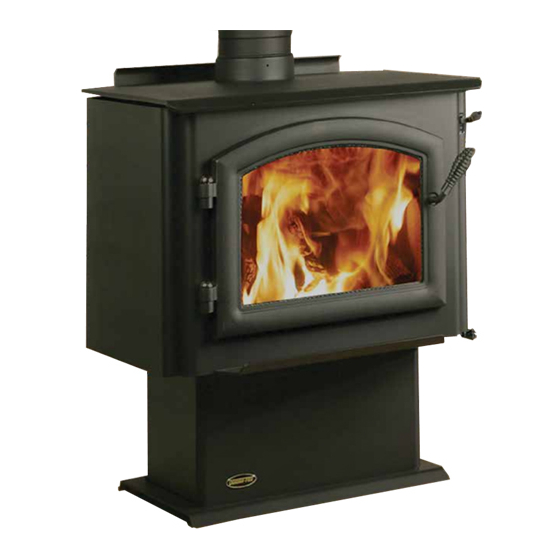

Quadra-Fire 43M-ACC-MBK Owner's Manual
4300 wood stove series automatic combustion control (acc)
Hide thumbs
Also See for 43M-ACC-MBK:
- Installation manual (28 pages) ,
- Owner's manual (48 pages) ,
- Owner's manual (48 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Installation Manual
Step Top Uni-Body Model
(Pedestal Model Shown)
•
If the information in these instruc-
tions is not followed exactly, a fire
may result causing property dam-
age, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies recommends NFI certified
professionals, or technicians supervised by an
NFI certified professional.
www.quadrafire.com
4300 WOOD STOVE SERIES
Automatic Combustion Control (ACC)
Owner's Manual
Installation and Operation
43M-ACC-MBK
Tested and
Listed by
DO NOT DISCARD THIS MANUAL
• Read, understand and
Important operating
and maintenance in-
structions included.
WARNING
Models:
43ST-ACC
O-T L
Portland
Oregon USA
C
US
OMNI-Test Laboratories, Inc.
CAUTION
follow these instructions
for safe installation and
operation.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as fireplace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other
flammable materials away.
To obtain a French translation of this manual, please
contact your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel,
s'il vous plaît contacter votre revendeur ou visitez
www.quadrafire.com
7037-135H
R
Millennium Model
• Leave this manual with
party responsible for
use and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
NOTE
December 16, 2011
Advertisement
Table of Contents
Related Manuals for Quadra-Fire 43M-ACC-MBK
Summary of Contents for Quadra-Fire 43M-ACC-MBK
- Page 1 4300 WOOD STOVE SERIES Automatic Combustion Control (ACC) Owner’s Manual Installation and Operation Models: 43M-ACC-MBK 43ST-ACC Millennium Model Step Top Uni-Body Model O-T L Tested and Portland (Pedestal Model Shown) Listed by Oregon USA OMNI-Test Laboratories, Inc. CAUTION DO NOT DISCARD THIS MANUAL •...
- Page 2 4300 Wood Stove Series (ACC) and Welcome to the Quadra-Fire Family our stoves, inserts and fireplaces. And yet we are old-fash- Hearth & Home Technologies welcomes you to our tradi- ioned when it comes to craftsmanship. Each unit is meticu- tion of excellence! In choosing a Quadra-Fire appliance, lously fabricated and surfaces are hand-finished for lasting you have our assurance of commitment to quality, durabil- beauty and enjoyment. Our pledge to quality is completed ity, and performance. as each model undergoes a quality control inspection. This commitment begins with our research of the market, We wish you and your family many years of enjoyment in including ‘Voice of the Customer’ contacts, ensuring we the warmth and comfort of your hearth appliance. Thank make products that will satisfy your needs. Our Research...
-
Page 3: Table Of Contents
4300 Wood Stove Series (ACC) Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. • NOTICE: Indicates practices which may cause damage to the fireplace or to property. TABLE OF CONTENTS Section 1: Listing and Code Approvals Section 8: Operating Instructions A. Appliance Certifications ......4 A. Over-Firing Your Appliance ....25 B. Mobile Home Approved ......4 B. Wood Selection & Storage ....25 C. Glass Specifications . -
Page 4: Section 1: Listing And Code Approvals
UL1482 and ULC S627-00 and Heating Capacity: 1,500-2,400 sq ft (UM) 84-HUD, Mobile Home depending on climate zone Approved. Vent Size: 6 inches Firebox Size: 2.4 cubic feet The Quadra-Fire 4300 Series Wood Stove (ACC) meets the Max Wood Length: 20 inches U.S. Environmental Protection Agency’s 1990 particulate emission standards. Fuel: Cord Wood Shipping Weight: 355 lbs B. Mobile Home Approved This appliance is approved for mobile home installations... -
Page 5: Section 2: Getting Started
4300 Wood Stove Series (ACC) Getting Started B. Fire Safety A. Design, Installation & Location Consider ations Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: • Safety • Convenience 1. Install at least one smoke detector on each floor of • Traffic flow your home to ensure your safety. They should be • Chimney and chimney connector required... -
Page 6: Negative Pressure
4300 Wood Stove Series (ACC) C. Negative Pressure To minimize the affects of negative air pressure the following Draft is the pressure difference needed to vent appliances must be considered: successfully. Considerations for successful draft include: • Install the outside air kit. Install the intake on the • Preventing negative pressure side of the house towards prevailing winds during the • Location of appliance and chimney heating season. • Ensure adequate outdoor air is supplied for combus- Negative pressure results from the imbalance of air avail- tion appliances and exhaust equipment. able for the stove to operate properly. Causes for this imbal- ance include: • Ensure furnace and air conditioning return vents are not located in the immediate vicinity of the appli- • Exhaust fans (kitchen, bath) etc.) ance,... -
Page 7: Flue Draft Considerations
4300 Wood Stove Series (ACC) F. Tools And Supplies Needed D. Flue Draft Considerations Location of the appliance and chimney will affect perfor- Before beginning the installation be sure that the following mance. As shown in Figure 6.1 on page 6 the chimney tools and building supplies are available. should: • Be installed through the warm space enclosed by the Framing Material Reciprocating saw building envelope. This helps to produce more draft, Hi-Temp Caulking Material... -
Page 8: Typical Stove System
4300 Wood Stove Series (ACC) Spark Arrestor Cap H. Typical Stove Systems Fireclay Flue Liner Concrete Cap With Air Space Stove system with masonry chimney consists of: Rafter • Stove Flashing • Chimney Connector (stove pipe) 1" (25mm) Clearance • Thimble With Firestop Ceiling Joist • Masonry Chimney Eave • Hearth Pad Floor Protection Combustible Wall Thimble,... -
Page 9: Appliance Dimensions
4300 Wood Stove Series (ACC) Dimensions and Clearances A. Appliance Dimensions 26 in. (660mm) 9-3/4 in. 13 in. (247mm) (330mm) NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 10-15/16 in. (271mm) 15-1/16 in. 14-15/16 in. (383mm) (373mm) Millennium Model 19-1/16 in. - Page 10 4300 Wood Stove Series (ACC) Appliance Dimensions (Cont’d) 4300 Step Top Pedestal Model 4300 Step Top Leg Model 26 in. (660mm) 13 in. 9-3/4 in. (330mm (248mm) 14-15/16 in. 19-1/16 in. (379mm) (484mm) 32-7/8 in. 10-15/16 in. 15-1/16 in. (835mm) (278mm) (383mm) 34-3/4 in.
-
Page 11: Clearances To Combustibles
4300 Wood Stove Series (ACC) B. Clearances to Combustibles (UL and ULC) BACKWALL / SIDEWALL ALCOVE SIDE VIEW NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction 90° OFF TOP UP & OUT CEILING CLEARANCE CORNER INSTALLATION STOVE TO CEILING... -
Page 12: Hearth Requirements
4300 Wood Stove Series (ACC) Installation In Canada, similar floor protection must be provided 18 A. Hearth Protection Requirements inches (457mm) in front and 8 inches (203mm) from the FLOOR PROTECTION: Floor protector must be non-com- sides and rear of the stove. *See exception. bustible material, extending beneath heater and to the front, *EXCEPTION: Non-combustible floor protections must sides and rear as indicated. The floor must be non-com- extend beneath the flue pipe when installed with horizontal bustible or otherwise adequately protected from radiant heat... - Page 13 4300 Wood Stove Series (ACC) A. Hearth Protection Requirements (Cont’d) Step-Top Uni-Body Model 48-5/16 in. 29 in. 41-3/8 in. minimum Fuel loading door 135° 8 in. 16 in. from glass 31-5/8 in. minimum Figure 13.3 Figure 13.1 USA required Canada recommended 203mm (8 in.) 203mm 203mm (8 in.)
-
Page 14: Outside Air Kit Installation
4300 Wood Stove Series (ACC) B. Outside Air Kit Installation WARNING A source of air (oxygen) is necessary in order for combus- Fire Risk. tion to take place. Whatever combustion air is consumed Asphyxiation Risk. by the fire must be replaced. Air is replaced via air leak- Do not draw outside combustion air from: age around windows and under doors. In homes that have • Wall, floor or ceiling cavity tightly sealed doors and windows, an outside air source is • Enclosed space such as an attic or garage needed. An optional Outside Air Kit is available. • Close proximity to exhaust vents or chimneys Included in OAK-ACC: Termination cap, (2) wire ties, flex Fumes or odor may result adapter, and fasteners Included in SRV7033-041: C over plate and sealing rope (see Floor Installation Alternative below,... -
Page 15: Blower Installation
4300 Wood Stove Series (ACC) C. Blower (Optional) CAUTION 1. Remove the 3 bolts (1/4”-20 Phillips head) on the outer skin at the bottom rear of appliance. Shock Risk. 2. Align holes in mounting flange of blower with bolt holes in • Do NOT remove grounding prong from plug. appliance. Blower should be positioned at bottom of rear • Plug directly into properly grounded 3 prong outer skin as shown in Figure 15.1. receptacle. • Route cord away from appliance. 3. Re-insert and tighten bolts, securing blower onto outer • Do NOT route cord under or in front of appliance.. wall of appliance. 4. Place the bracket containing the snap disc and magnet NOTE: The blower cord is equipped with a 3 pronged under the bottom left rear corner as shown in Figure 15.1. -
Page 16: Section 5: Chimney Requirements
4300 Wood Stove Series (ACC) Chimney Requirements A. Venting Components B. Chimney Systems Chimney Connector: Prefabricated Metal Chimney It is also known as flue pipe or stove pipe. The chimney • Must be minimum 6 inch (152mm) diameter (ID) high connector joins the stove to the chimney. It must be a 6 inch temperature chimney listed to UL 103 HT (2100 F) or (152mm) minimum diameter 24 gauge mild steel black or ULC S629M. 26 gauge blued steel, or an approved air-insulated double • Must use components required by the manufacturer for wall venting pipe. installation. Thimble: • Must maintain clearances required by the manufacturer A manufactured or site-constructed device installed in for installation. - Page 17 4300 Wood Stove Series (ACC) Thimble Site constructed for masonry chimney installation: ceiling Components 13.5” below ceiling to top • A minimum length of 12 inches [305mm] (longer for of opening Wall or top of opening is a min.of thicker walls) of solid insulated factory-built chimney 4.5”...
-
Page 18: Installing Chimney Components
4300 Wood Stove Series (ACC) Solid Pack Chimney with Metal Supports as a C. Installing Chimney Components Thimble (Cont’d) Chimney Connector Single wall connector or stove pipe. Min. Chimney Clearance to This must be at least 24 gauge mild steel or 26 gauge blue Wall Spacer and Min. Clearance steel. The sections must be attached to the appliance and to Combustibles - 2 inch (51mm) 2 inch (51mm) each other with the crimped (male) end pointing toward the 1 inch (25mm) Air stove. All joints, including the connection at the flue collar, Chimney Flue Space to Chimney should be secured with 3 sheet metal screws. Make sure Liner Section to follow the minimum clearances to combustibles. Where Fireclay passage through the wall, or partition of combustible con- Chimney Liner or... -
Page 19: Chimney Termination Requirements
4300 Wood Stove Series (ACC) D. Chimney Termination Requirements NOTE: Follow manufacturers instructions for clearance, securing, • Chimney performance may vary. flashing and terminating the chimney. • Trees, buildings, roof lines and wind conditions affect • performance. Must have an approved and listed cap • Chimney height may need adjustment if smoking or • Must not be located where it will become plugged by overdraft occurs. snow or other material • Must terminate at least 3 feet (91cm) above the roof and at least 2 feet (61cm) above any portion of the roof within 10 feet (305cm) • Must be located away from trees or other struc- tures E. -
Page 20: Section 6: Mobile Home
4300 Wood Stove Series (ACC) Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part OAK-ACC and (depending on floor installation) SparkArestor Cap Part SRV7033-041 for installation in a mobile home. 1. An outside air inlet must be provided for combustion See page 14 for installation information. Storm Collar 2. Appliance must be secured to the mobile home structure Roof Flashing by bolting the pedestal through hearth pad and into floor. -
Page 21: Section 7: Appliance Set-Up
4300 Wood Stove Series (ACC) Appliance Set Up A. Pedestal Assembly and Ash Removal System (ARS) Installation for Step Top Uni-body NOTE: The Ash Removal System, must be installed first before installing the pedestal. ARS Cover Included in Kit: Door assembly, door handle & magnet, ash drawer, fastener package. A cover plate that is required for a floor outside air installation on a pedestal model is also included, If not needed, discard. -
Page 22: Pedestal & Ash Removal System
4300 Wood Stove Series (ACC) Pedestal and Ash Removal System (Cont’d) Installing Pedestal Assembly 1. Remove screws on adapter and slide pedestal over adapter on bottom of stove. Figure 22.1. 2. Line up holes in sides of pedestal with holes in adapter. Cover 3. Securely tighten pedestal into place. 4. Carefully stand stove up and place in desired location. Channel 5. Slip wooden decorative strips onto pedestal edges. Finishing the ARS Installation 1. Re-install the ARS channel that was removed in Step 3 on page one and secure with 2 bolts previously removed. -
Page 23: Leg Kit & Ash Removal System (Ars) Installation
4300 Wood Stove Series (ACC) B. Leg Kit and Ash Removal Installation (ARS) for Step Top Uni-Body NOTE: The Ash Removal System, must be installed first before installing the legs. Begin installing the ARS System. 1. Follow steps 1 through 6 on page 21. See also Figures Lay stove flat on its 21.2 and 21.3. -
Page 24: Door Handle Assembly
4300 Wood Stove Series (ACC) D. Adjusting The Blower Speed Control C. Door Handle Assembly The blower speed control for this unit is adjusted at the factory, 1. Install washer on door handle shaft. and normally does not require further adjustment. 2. Slide door handle through door. NOTE: When the speed control is turned clockwise, 3. Install second washer(s) as shown. it will click on to high speed. Continue to turn the 4. Install key in groove. speed control clockwise to decrease the speed. At full clockwise, the blower should blow gently, but 5. Align groove in latch cam with key; slide latch cam should not stop. over shaft 1. With the appliance plugged in, turn the speed 6. Install locknut but do not overtighten, it must move control knob to slow (full clockwise). -
Page 25: Section 8: Operating Instructions
• Roaring, rumbling noises In recent years there has been an increasing concern about • Loud cracking or banging sounds air quality. Much of the blame for poor air quality has been • Metal warping placed on the burning of wood for home heating. In order to improve the situation, we at Quadra-Fire have developed • Chimney fire cleaner-burning woodstoves that surpass the requirements 2. What To Do if Your Stove is Over-Firing for emissions established by our governing agencies. These woodstoves, like any other appliances, must be properly • Immediately close the door and air controls to reduce operated in order to insure that they perform the way they are air supply to the fire. -
Page 26: Automatic Combustion Control (Acc)
4300 Wood Stove Series (ACC) 2. Second Stage The second function of the Start-Up Air Control is operation The next stage of burning, the secondary stage, is the period of the rear air system. The rear air is used primarily during when the wood gives off flammable gases which burn above a High Burn Rate. However, in some instances rear air is the fuel with bright flames. During this stage of burning it is desired during normal operation to help with combustion of very important that the flames be maintained and not allowed fuel towards the back of the firebox particularly when burning to go out. This will ensure the cleanest possible fire. If the hardwoods. The rear air is controlled independently from the flames tend to go out, it is set too low for your burning condi- ACC system. Slide the Start-Up Air Control between the first tions. The air control located at the upper right hand corner and third marker as indicated on the label to allow rear air to is used to adjust for burn rates. This is called the Burn Rate enter the firebox. Figure 26.1. Air Control. Figure 26.1. 2. Manual Timer Over-Ride 3. Final Stage If you need to shut the ACC system off before it shuts itself he final stage of burning is the charcoal stage. This occurs off after 25 minutes (i.e. overfire situation), reach down to when the flammable gases have been mostly burned and only the bottom right rear corner and pull the lever toward you. -
Page 27: E. Air Controls
4300 Wood Stove Series (ACC) 2. Burn Rate Air Control 4. Medium-Low Burn Rate - 10,000 to 15,000 BTU/hr This air supply enters at the upper front of the firebox, near the Raise the Burn Rate Air Control up to the bottom of top of the glass door. This preheated air supplies the neces- the middle marker and stop. Slide the Start-Up Air sary fresh oxygen to mix with the unburned gases, helping Control all the way back until it stops (HI marker) and to create second, third and fourth combustions. This air is then pull forward until it stops. This activates the timer regulated by the Burn Rate Air Control. There are four settings system (ACC). High, Medium-High, Medium-Low and Low. When the control 5. Low Burn Rate - Below 10,000 BTU/hr is raised all the way up it is on the High setting and when Leave the Burn Rate Air Control at the bottom marker. pushed all the down it is on the Low setting. Figure 27.1. -
Page 28: Building A Fire
4300 Wood Stove Series (ACC) G. Building A Fire Baffle Board even with front Before lighting your first fire in the stove: tube & resting on all tubes 1. Confirm the baffle is correctly positioned. It should be even with the front tube and resting on all tubes. Figure 28.1. 2. Follow instructions on page 32 for cleaning plated sur- Burn Rate faces, if applicable. Air Control 3. Remove all labels from glass. Start-Up There are many ways to build a fire. The basic principle is to light easily-ignitable tinder or paper, which ignites the Control fast burning kindling, which in turn ignites the slow-burning firewood. Here is one method that works well: 1. Open the Burn Rate Air and Start-Up Air Controls fully. -
Page 29: Correct Baffle & Blanket Placement
4300 Wood Stove Series (ACC) INCORRECT POSITIONS H. Correct Baffle & Ceramic Blanket Placement WARNING Fire Risk Firebox damage due to improper baffle place- ment is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only. Not doing so could result in: • Reduced efficiency • Overheating the chimney Ceramic Blanket and Baffle Board are NOT in • Overheating the rear of the firebox • Poor performance contact with the back of the firebox. Ensure correct baffle placement and replace baffle components if damaged or missing. -
Page 30: Blower Operating Instructions
4300 Wood Stove Series (ACC) J. Opacity (Smoke) I. Blower Operating Instructions NOTE: If your Quadra-Fire wood stove is equipped with an This is the measure of how cleanly your appliance is burn- ing. Opacity is measured in percent; 100% opacity is when optional blower, you should follow these guidelines: an object is totally obscured by the smoke column from a 1. Initial (cold) start-up and all Burn Settings chimney, and 0% opacity means that no smoke column can The blower can be plugged in and turned on right away. be seen. As you become familiar with your appliance, you The blower fan is turned on and off by a snap disc. -
Page 31: Maintaining & Servicing Appliance
4300 Wood Stove Series (ACC) Maintaining & Servicing Your Appliance A. Quick Reference Maintenance Guide BAFFLE & BLANKET PLACEMENT INSPECT FIREBRICKS & ASH COVER (AFTER EACH CLEANING) Step Top Models Only Baffle and blanket placement is critical to heat out- Firebrick is designed to protect your firebox. Replace put, efficiency and overall life of the unit. Make sure firebricks that are crumbling, cracked or broken. If the baffle is pushed all of the way to the back of the you have an optional ash door, check to make sure firebox and the blanket is laying flat. the door is closing properly. CHIMNEY & CAP INSPECTION DOOR &... -
Page 32: General Maintenance & Cleaning
4300 Wood Stove Series (ACC) A. General Maintenance 3. Ash Removal System (ARS) Operating and Cleaning • Frequency: As necessary 1. Creosote (Chimney) Cleaning • By: Homeowner • Frequency: Every 2 months during heating season or as recommended by a certified chimney sweep; more CAUTION frequently if chimney exceeds or is under 14-16 ft. (measured from bottom of appliance) Injury Risk. - Page 33 4300 Wood Stove Series (ACC) 3. Disposal of Ashes 5. Glass Cleaning • Frequency: When ash is within 1-3/4 in. (44mm) of firebox • Frequency: As desired • By: Homeowner • By: Homeowner Clean glass with a non-abrasive glass cleaner. Abrasive Ashes should be placed in a metal container with a cleaners may scratch and cause glass to crack. If the tight fitting lid. The closed container of ashes should deposits on the glass are not very heavy, normal glass be placed on a non-combustible floor or on the ground, cleaners work well. Heavier deposits may be removed...
-
Page 34: Glass Replacement
Glass breakage will occur. 8. Tighten each retainer just a few turns until each is secured. Check again for centering of glass in door frame. Continue to tighten each retainer alternately, a few turns at a time, until the glass is secure. DO NOT OVERTIGHTEN. 9. Replace the door on the appliance. Quadra-Fire stoves are equipped with ceramic super heat-resistant glass, which can only be broken by impact or misuse. Do not slam stove door or impact the glass. When closing door, make sure that logs do not protrude against the glass. Inspect glass regularly. If you find a crack or break, immediately put the fire out and return the door to your dealer for replacement of glass before further use. -
Page 35: Firebrick Replacement
4300 Wood Stove Series (ACC) C. Firebrick Replacement Replace the firebrick if they become crumbly and/or if there is a 1/4 inch (6.35mm) gap between the bricks. Inspect the firebrick after each ash removal. The firebox is lined with high quality firebrick, which has exceptional insulating properties. There is no need to use a grate; simply build a fire on the firebox floor. Do not operate No Brick, ARS Grate Location appliance without firebrick. 1. After the coals have completely cooled, remove all old brick and ash from unit and vacuum firebox. 2. Remove new brick set from box and lay out to diagram shown. 3. Lay bottom bricks in unit. 4. Install rear bricks on the top of the bottom bricks. Slide 9 in. 7-1/4 in. top of bricks under clip on back of firebox wall and push bottom of brick back. -
Page 36: Baffle Removal
4300 Wood Stove Series (ACC) E. Snap Disc Replacement D. Baffle Removal 1. Locate the snap disc bracket assembly at the bottom left 1. Remove all ash from the firebox, and extinguish all hot rear corner of the stove. Figure 36.3. embers before disposal into a metal container. 2. A magnet holds the bracket to the stove. Pull the bracket 2. The baffle board has 2 pieces. With the ceramic blanket down away from the stove to expose the snap disc. still in place, slide one baffle piece over the top of other one and pull out top piece through the door opening and then 3. Pull the snap disc and spade connectors up and out of remove bottom baffle piece. Figure 36.1. -
Page 37: Tube Channel Replacement
4300 Wood Stove Series (ACC) F. Tube Channel Assembly Replacement NOTE: Service Space In order to replace the tube channel assembly a clearance Removing Tube Channel Assembly of 19 inches (483mm) is required on the right side of stove in order to remove the tubes with the stove in place. 1. Remove the right side shield by removing 2 screws in the back using a Phillips head screw driver. If space is not available, the stove will have to be discon- nected from the chimney to proceed with the tube replace- 2. Remove 4 screws from channel access cover and remove ment. cover. 3. Locate 2 channel nuts inside of chamber and remove using a 7/16 socket wrench. Slide out tube channel assembly. -
Page 38: Section 10: Troubleshooting
4300 Wood Stove Series (ACC) With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do experience a prob- lem, this troubleshooting guide will assist a qualified service person in Troubleshooting the diagnosis of a problem and the corrective action to be taken. Start Fire Problems Possible Cause Solution Can’t get fire started Not enough kindling/paper or no Use dry kindling, more paper. Arrange kindling & Excessive smoke or spillage kindling/paper wood for air movement. Burns too slowly Not enough air for fire to ignite Check for restricted cap/shroud Smolders, sizzles Open outside air kit (if installed). Check for flue blockage. Pre-warm flue before starting fire (refer to starting fire section). Check for adequate vent height (refer to chimney assembly section). Open window below the appliance towards the wind. Wood condition is too wet, too Use dry, seasoned wood (refer to wood fuel sec- large tion). Bed of coals not established Start with paper & kindling to establish bed of before adding wood coals (refer to starting fire section). -
Page 39: Section 11: Reference Material
Service Parts Reference Materials Wood Stove Beginning Manufacturing Date: Oct. 2006 Ending Manufacturing Date: Active 43M-ACC-MBK 43M-ACC-GT Oct. 2006 - Jan. 2007, 43M-ACC-NT Oct. 2006 - Jan. 2007 A. Exploded Drawing (Millennium) Figure 39.1 Part number list on following page. - Page 40 4300 ACC Millenium Service Parts Beginning Manufacturing Date: Oct. 2006 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Air Channel, SRV7033-144 Convection w/Bracket - Retain original serial # label Air Supply Back SRV7033-134 Flue Collar SRV7000-302 Panel Assembly, Side, Left 7037-007 Rear Air Channel Assembly 7033-002 Ceramic Fiber Blanket, 1/2 “ Thick 15 1/2” x 19 1/2”...
- Page 41 4300 ACC Millenium Service Parts Beginning Manufacturing Date: Oct. 2006 Ending Manufacturing Date: Active #16 Brick Set Assembly #17 Pedestal Assembly 16.1 16.1 16.1 16.1 17.1 16.5 16.1 16.1 16.1 16.1 16.1 16.1 16.1 17.2 16.1 16.4 16.5 16.2 16.2 16.2 16.2 16.3...
- Page 42 Nickel Trim 430-5340 18.6 Door Glass Assembly - 15-1/2” W x 13-3/8” H 7000-012 18.7 Glass Frame Set Qty: 4 Pc 832-0350 18.8 Cam Latch 430-1141 18.9 Key, Cam Latch 430-1151 18.10 Nut, Locking Door Handle Pkg of 24 226-0100/24 Gasket, Glass Tape - Field cut to Size Qty. 5 Ft. Req. 832-0460 Rope, Door, 3/4” x 84” - Field cut to Size Qty. 7 Ft. Req. 832-1680 436-5350 Black & Gold Doors Component Pack (Spring Handles (1) 1/2” & (2) 1/4”, (2) Gold Hinge Pins, Quadra-Fire Logo 436-5360 Nickel doors Upgrade, Door, Nickel - Nickel Handles, Hinge Pins & Logo UK-DRNL Additional service part numbers appear on following page. Page 42 7037-135H 12/11 December 16, 2011...
- Page 43 Snap Disc Bracket Assembly 7033-036 Snap Disc, # 1, Convection Blower SRV230-0470 Wire Harness (Blower) 7033-262 Component Pack (Includes Touch-Up Paint, Spring Handles Black & gold 7037-014 (1) 1/2 Inch & (2) 1/4 Inch, Trimount Plug, Owners Manual, Warranty Card) Nickel 7037-015 Blower, Convection - Replacement Blower 812-4900 Pkg of 4 7038-168/4 Gasket, Manifold Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 Paint Touch-Up Black 812-0910 Outside Air Kit, Floor & Rear OAK-ACC Outside Air Collar Assembly 7033-039 Outside Air Shield 33271 FASTENERS Avk Rivnut Repair Kit - 1/4-20 & 3/8-16 Rivnut Tools RIVNUT-REPAIR Bolt, Hex Head, 1/4-20 X 1 Pkg of 10 25221A/10 Button Head 1/4-20 X .5 Pkg of 20...
-
Page 44: Exploded Drawing (Step Top)
43ST-ACC Service Parts 4300 Wood Stove Series (ACC) Beginning Manufacturing Date: Feb 2007 Step Top Model - Wood Stove Ending Manufacturing Date: Active C. Exploded Drawing (Step Top) Part number list on following page. 12/11 Figure 44.1 Page 44 7037-135H December 16, 2011... - Page 45 43ST-ACC Service Parts Beginning Manufacturing Date: Feb 2007 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Air Supply Back SRV7033-134 Air Channel, SRV7033-144 Convection w/Bracket - Retain original serial # label Panel Assembly, Side, Left 7037-011 Grate (Ash Pan Removal System) SRV7038-196 Tube Support Rack 7033-148 Brick Retainer 7033-149 Ceramic Fiber Blanket, 1/2 “ Thick 832-3390 Baffl e Board - 9-1/2” W x 15-3/4” H...
-
Page 46: Door Assembly
43ST-ACC Service Parts Beginning Manufacturing Date: Feb 2007 Ending Manufacturing Date: Active #16 Brick Assembly Set #17 Door Assembly (Ash Pan Removal System) 17.1 16.1 16.1 17.2 16.1 16.1 16.1 16.1 16.6 16.1 16.1 No Brick, ARS 16.3 16.3 Grate Location 17.3 16.5 16.6 16.1... - Page 47 43ST-ACC Service Parts Beginning Manufacturing Date: Feb 2007 Ending Manufacturing Date: Active #18 Leg, Ash Pan and Pedestal Assembly 18.1 18.5 18.4 18.3 18.6 18.2 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement Stocked parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Black LEG-3143-BK Leg Kit & Ash Removal System Gold LEG-3143-GD Nickel LEG-3143-NL...
- Page 48 19.5 Trim Ring, For Door (Trim door assembly only) Nickel Trim 430-5340 19.6 Door Glass Assembly - 15-1/2” W x 13-3/8” H 7000-012 19.7 Glass Frame Set Qty: 4 Pc 832-0350 19.8 Cam Latch 430-1141 19.9 Key, Cam Latch 430-1151 19.10 Nut, Locking Door Handle Pkg of 24 226-0100/24 Gasket, Glass Tape - Field cut to Size 5 Ft Length 832-0460 Rope, Door, 3/4” x 84” - Field cut to Size 7 Ft Length 832-1680 436-5350 Black & Gold Doors Component Pack (Spring Handles (1) 1/2” & (2) 1/4”, (2) Gold Hinge Pins, Quadra-Fire Logo 436-5360 Nickel Door Additional service part numbers appear on following page. Page 48 7037-135H 12/11 December 16, 2011...
- Page 49 Blower, Convection - Replacement Blower 812-4900 Component Pack (Touch-Up paint, owners manual, warranty 7037-017 card) Spring handles in door assembly. Blower Assembly BK-ACC Blower Control Box W/Switch SRV7000-194 Channel, Ash Removal 7033-172 Component Pack 7033-051 Door Handle Assembly 832-0540 Gasket, Manifold Pkg of 4 7038-168/4 Gold 200-3180 Logo, Quadra-Fire Nickel 200-3240 Outside Air Collar Assembly 7033-039 Outside Air Kit, Floor & Rear OAK-ACC Outside Air Shield 33271 Paint Touch-Up 812-0910 Snap Disc Bracket Assembly 7033-036 Snap Disc, # 1, Convection Blower SRV230-0470 Upgrade, Door, Nickel - UK-DRNL Nickel Handles, Hinge Pins & Logo Wire Harness (Blower) 7033-262 FASTENERS Avk Rivnut Repair Kit - 1/4-20 & 3/8-16 Rivnut Tools...
-
Page 50: Warranty Policy
4300 Wood Stove Series (ACC) C. Warranty Policy Page 50 7037-135H December 16, 2011... - Page 51 4300 Wood Stove Series (ACC) Page 51 December 16, 2011 7037-135H...
-
Page 52: Contact Information
Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer, log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL • Read, understand and...
