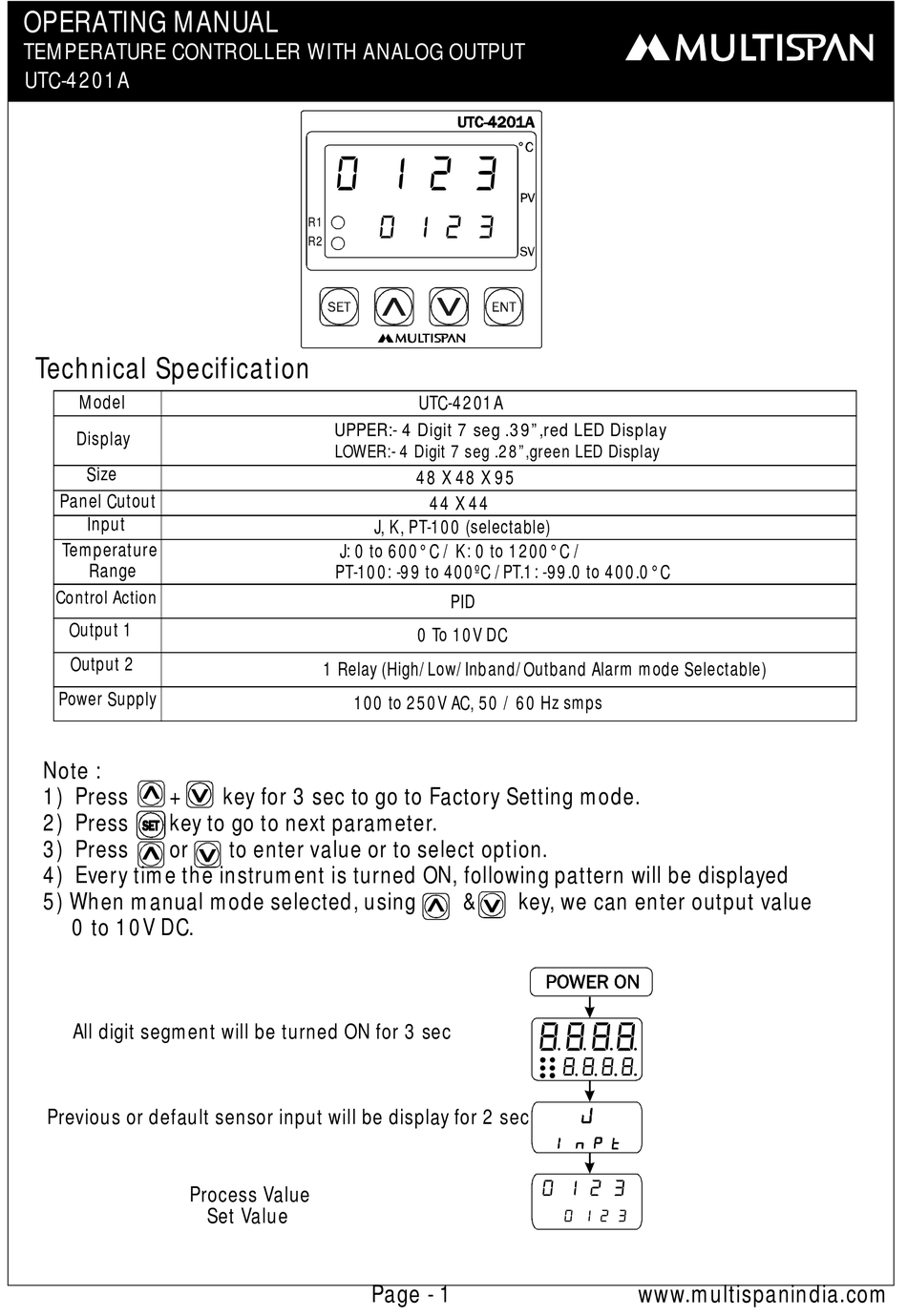

MULTISPAN UTC-4201A Operating Manual

OPERATING MANUAL
TEMPERATURE CONTROLLER WITH ANALOG OUTPUT
UTC-4201A

Technical Specification

Model
Display
Size
Panel Cutout
Input
Temperature
Range
Control Action
Output 1
Output 2
Power Supply
Note :
1) Press +
2) Press key to go to next parameter.
3) Press or
4) Every time the instrument is turned ON, following pattern will be displayed
5) When manual mode selected, using
0 to 10V DC.
All digit segment will be turned ON for 3 sec
Previous or default sensor input will be display for 2 sec
Process Value

R1
R2
UPPER:- 4 Digit 7 seg .39",red LED Display
LOWER:- 4 Digit 7 seg .28",green LED Display
J, K, PT-100 (selectable)
J: 0 to 600°C / K: 0 to 1200°C /
PT-100: -99 to 400ºC /PT.1: -99.0 to 400.0°C
1 Relay (High/Low/Inband/Outband Alarm mode Selectable)
100 to 250V AC, 50 / 60 Hz smps
key for 3 sec to go to Factory Setting mode.
to enter value or to select option.
Set Value
Page - 1

UTC-4201A
48 X 48 X 95
44 X 44
PID
0 To 10V DC
& key, we can enter output value
  

   

www.multispanindia.com
