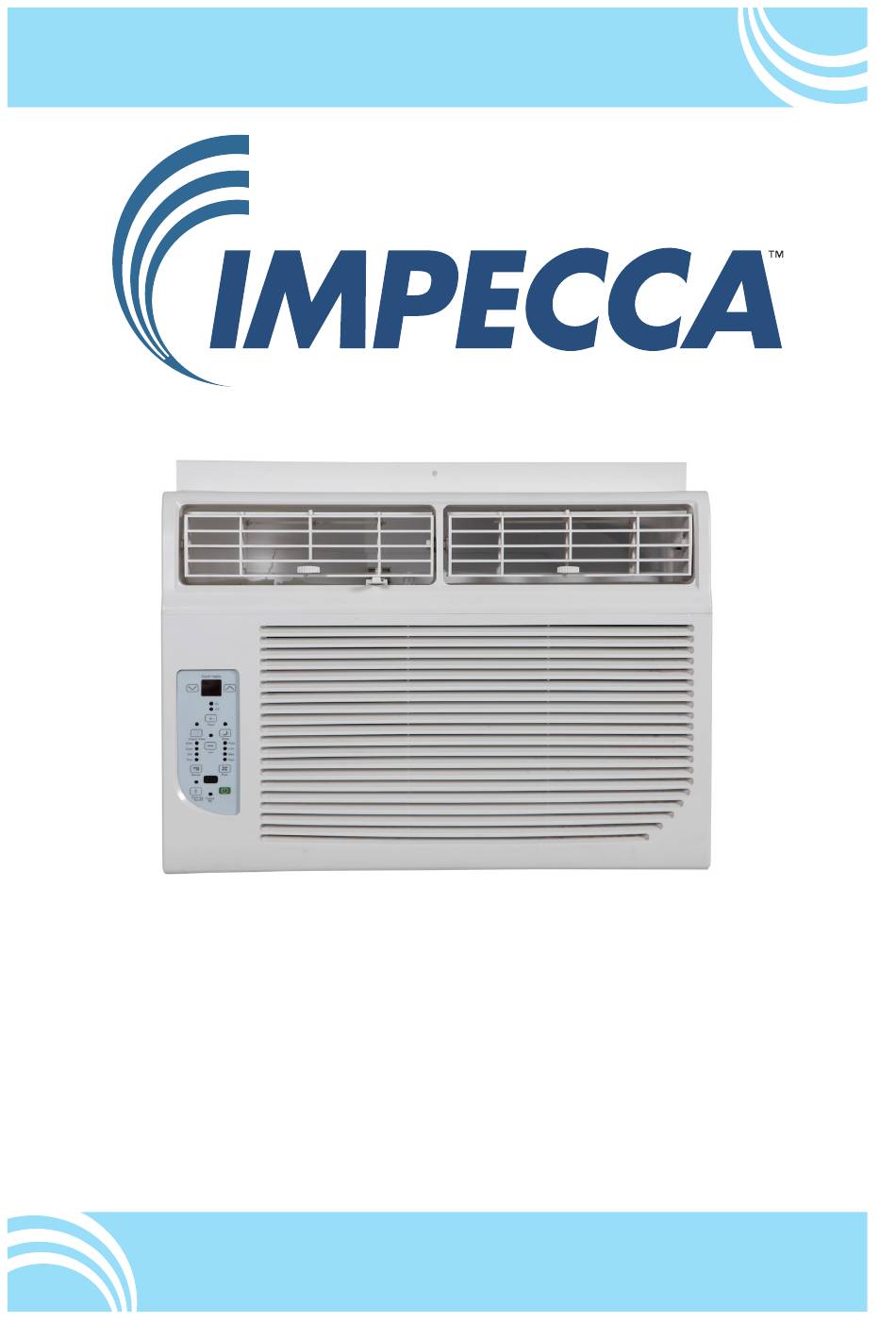

- Page 1 Electronic Window Air Conditioner with Remote—User's Guide Models: IWA06-KR15, IWA08-KR15, IWA10-KR15, IWA12-KR15 IWA06-KS30, IWA08-KS30, IWA10_KS30, IWA12-KS30 [Energy Star] www.impecca.com v1.3...
- Page 2 6 horas y un tiempo recomendado de 24 horas antes de encender la primera vez. Spanish version of this manual available for download on www.impecca.com Read the following notices and information carefully to ensure proper operation of your air conditioner unit.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ..........................6 Getting To Know Your Air Conditioner ..................7 Using Your Air Conditioner .....................7 Delay Start/Stop (Timer) ...................... 11 Installation Instructions ....................... 14 R1 Insulation Installation (for some models)..............16 Cleaning & Maintenance ...................... 18 Troubleshooting ........................19 Electrical Information ...................... - Page 4 READ THESE NOTICES CAREFULLY—THEY ARE IMPORTANT! WARNING Do not start or stop the unit by inserting or Do not damage power cord or replace Plug in power plug completely. pulling out the power plug. with a non-original power cord. •...
- Page 5 CAUTION Stop operation and remove unit from Hold the plug by the head of the power Unplug the power cord when not using window in severe storm or hurricane. plug when unplugging unit. the unit for extended periods of time. •...
-
Page 6: Introduction
INTRODUCTION Thank you for purchasing this quality Impecca window air conditioner unit. To ensure the longest life and highest energy efficiency of your unit, please carefully follow these operating instructions. Keep these instructions in a safe place and consult them as needed. -
Page 7: Getting To Know Your Air Conditioner
OPERATING CONDITIONS • The air conditioner must be operated within the temperature range of 62°F to 95°F (16°C to 35°C). • A perimeter of 12′′(30cm) around the air conditioner should be free of all objects. • Keep air inlet and air outlet clean and free of obstructing objects. •... - Page 8 OVERVIEW OF CONTROLS FUNCTIONS Before you begin, thoroughly familiarize yourself with the control panels as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel located on the front of the device or with the remote controller.
- Page 9 TEMPERATURE ADJUSTMENT Press or hold either Down or Up button until the de- sired temperature is seen on the display. This tempera- ture will be automatically maintained anywhere between 62° F (17° C) and 86° F (30° C). If you want the display to read the actual room tempera- ture, refer to the note: “To Operate on Fan Only”.
- Page 10 PMTS — FOLLOW ME (SOME MODELS) Some models are equipped with a special feature that allows the remote control to act as a thermostat. If your unit shows this PMTS LED on the control panel, and you have the accom- panying LCD remote control then your unit is equipped.
-
Page 11: Delay Start/Stop (Timer)
DELAY START/STOP (TIMER) The timer buttons enable two separate functions: one to automatically start the unit within a 24 hour period of time and another to automatically turn off the unit within a 24 hour period of time. These functions are called, respectively, AUTO ON and AUTO OFF. - Page 12 PRE-INSTALLATION INSTRUCTIONS REQUIRED TOOLS (NOT INCLUDED) Level Phillips Screwdriver Scissors Pencil Tape Measure INCLUDED PARTS & ACCESSORIES* 1. Air conditioning unit 7. Upper Rail Screws (x4) 2. Flexible window filler panels 8. Screws (x6) 3. Upper Rail (may already be attached) 9.
- Page 13 WINDOW REQUIREMENTS Your air conditioner is designed OFFSET to install in a standard double EXTERIOR hung windows with opening WALL widths of 23 to 36 inches (584mm to 914mm). INNER WINDOW SILL *For 6000 and 8000 BTU models, you need a height of 14 inches (356mm).
-
Page 14: Installation Instructions
INSTALLATION INSTRUCTIONS Use caution when unpacking and installing. Sharp edges can cause injury. Appearance of unit in these diagrams is for illustrative purposes only and may not precisely reflect your unit’s design. STEP 1: INSTALLING THE UPPER RAIL (IF NOT ALREADY ATTACHED) 1. - Page 15 STEP 3: FOAM SEAL ON WINDOW FRAME • Affix the foam seal (with adhesive ) to the bottom of the window sash. STEP 4: MOUNT THE UNIT IN THE WINDOW FRAME 1. With the help of another person, center the unit on the windowsill.
-
Page 16: R1 Insulation Installation (For Some Models)
STEP 5: SECURING THE WINDOW • To keep the window from being unintentionally opened and risk damaging the unit or injuring passersby, use one type C screw to fasten the se- curity bracket to the window. If your window frame is plastic (PVC), fasten the bracket to the side of the window frame (De- tail 1)If your window is made... - Page 17 R1 SIDE CURTAIN COVER INSTALLATION (SOME MODELS) 1. After the unit is installed in the window, measure the width of each side's exposed filler panel as shown in the diagram. Measure the inner width of the side curtain 2. Cut the insulation panel to size for each side of the side curtain. 3.
-
Page 18: Cleaning & Maintenance
CLEANING & MAINTENANCE SAFETY WARNING To avoid electric shock, fire, damage, or injury while performing maintenance on your unit: • Always turn off and disconnect the air conditioner from electric power. • Never submerge the unit in water or spray liquids directly on the unit. •... -
Page 19: Troubleshooting
CLEANING THE OUTER HOUSING AND INTAKE GRILLE If dust has accumulated on the unit, use a soft, dry dusting cloth to wipe it off. If grease or other harder to remove substances is on the unit, use a wrung-out cloth dampened with warm, soapy water. - Page 20 WATER BUILD-UP IN THE UNIT, SPLASHING NOISE • This is not a problem. This self-evaporative unit is designed allow condensate to build up in the rear of the unit during cooling and dry modes. The rear fan then runs through the pool of water, splashing it upon the evaporator coils, helping to cool them down.
-
Page 21: Electrical Information
If you wish to contact us by phone, please be sure to have your model number and serial number ready and call us between 9:30am and 5:00pm ET, at +1 866-954-4440. Keep tabs on Impecca’s newest innovations & enter contests via our social network feeds: ... -
Page 22: One-Year Limited Appliance Warranty (Us)
13. Surcharges that may apply to service calls on weekends, from the date of the original purchase, Impecca™, at its nights, holidays. Damages to the finish of appliance or own discretion, will repair or replace the product parts household furnishings due to installation of appliance. -
Page 23: Garantía Limitada Por Un Año (Us)
Para obtener el servicio de garantía de un distribuidor autori- de la casa debido a la instalación del electrodoméstico. zado de Impecca™ envíenos un correo electrónico a: service@ 14. Daños causados por cualquiera de las siguientes causas: impecca.com para obtener un número de Autorización de Actos de Dios, incendios, mal uso. -
Page 24: Garantie Limitée D'un An (Us)
L’usure normale de l’appareil n’est pas couverte par cette Aucun revendeur, agent ou employé d’Impecca™ n’est garantie. Impecca™ se réserve le droit de déterminer le niveau autorisé à effectuer une modification, une extension, un d’usure sur l’ensemble de ses appareils. Ouvrir le boîtier ou changement ou un amendement de cette garantie sans le modifier l’appareil annule dans son entièreté...
