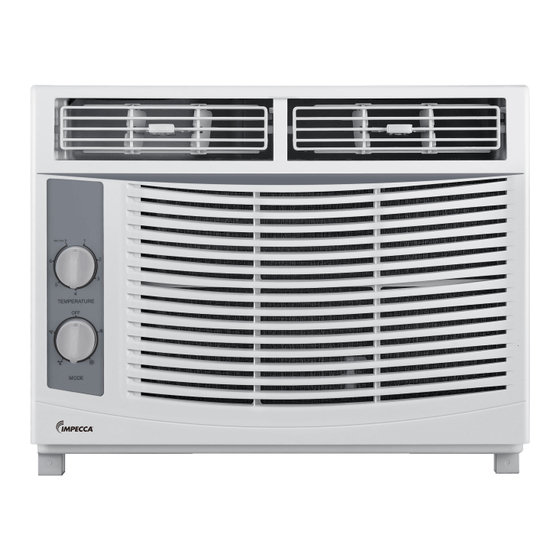

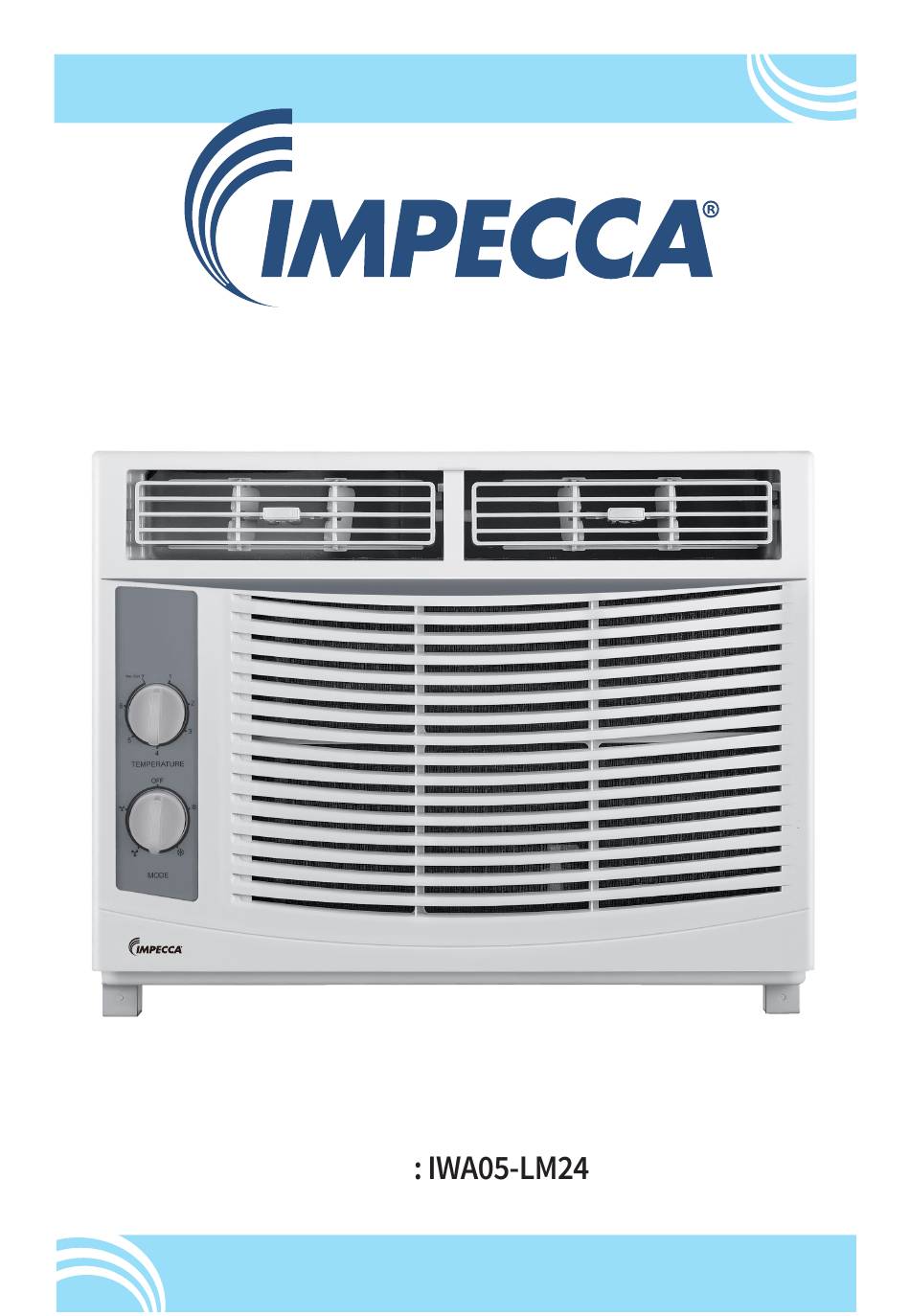

- Page 1 Window Air Conditioner User’s Guide MODEL www.impecca.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS WELCOME IMPORTANT SAFETY INSTRUCTIONS ELECTRICAL REQUIREMENTS PACKING LIST INSTALLATION & ASSEMBLY INSTRUCTIONS USING YOUR AIR CONDITIONER CARE AND CLEANING TROUBLESHOOTING CUSTOMER SUPPORT ONE-YEAR LIMITED APPLIANCE WARRANTY (US) -
Page 4: Welcome
WELCOME Thank you for purchasing this Window Air Conditioner Before operating this unit, please read these instructions completely and keep the manual ready for further reference IMPORTANT SAFETY INSTRUCTIONS Before installing and using your air conditioner, please read this owner's manual carefully Store thismanual in a safe place for future reference Your safety and the safety of others is very important to us Please pay attention to all safety messages outlined in this user manual... - Page 5 INTRODUCTION TO REFRIGERANTS R32 The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32 This kind of erant is combustible and odorless Moreover, it can burn and explode under certain condition However, there will be no risk of burning and explosion if you comply with the following table to install your air conditioner in a room with an appropriate area and use it correctly Compared with ordinary refrigerants, Refrigerant R32 is environmentally friendly and...
-
Page 6: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING ELECTRICAL SHOCK • Hazard Plug into a grounded 3 prong outlet • Do not remove the ground prong • Do not use an adapter • Do not use an extension cord • Failure to follow these instructions can result in death, fire, or electrical shock The electrical ratings for your air conditioner are listed on the model and serial number label located on the front left side of the unit (when facing the front) Specific electrical requirements are listed in the chart below Follow the requirements below for the type... - Page 7 LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is requiredby UL This power supply cord contains state- of-the-art electronics that sense leakage current If the cord is damaged and leakage occurs, power will be disconnected from the unit The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load...
-
Page 8: Packing List
PACKING LIST 1. Window Air Conditioner (1) 2. Top Rail (With sponge) (1) 3. Sash Lock (Two holes) (1) 4. Filler Panels (2) (With "Left" & "Right" remark on the front face) 5. Window Sash Seal (Sponge) (1) 6. Lock Frame (2) 7. -
Page 9: Installation & Assembly Instructions
INSTALLATION & ASSEMBLY INSTRUCTIONS Some assembly is required for your new air conditioner Please read and follow these instructions carefully • This air conditioner is designed to be installed in a standard double-hung window with a window width between 23" and 34" (584mm-863 mm) •... - Page 10 Top Rail Assembly The top rail must be assembled prior to installing the air conditioner in the window Tools Needed: Phillips Head Screw Driver Attaching the Top Rail to the Air Conditioner • Remove the air conditioner from the box and place on a hard and flat surface •...
- Page 11 Accordion Panel Installation Now that you have installed the top rail, you can now install the accordion panels on each side • Place the air conditioner on a hard flat surface • Locate the accordion panels in the box • Gently pull the free end of the accordion panel (See Fig 2) Do this for both panels •...
- Page 12 Storm Window Requirements A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly To adjust for this, attach a board or piece of wood to the sill The board or wood piece should have a depth of at least 1-1/2"...
- Page 13 • Once the air conditioner is placed, extend both the left and right accordion panels to the width of the window Frame Lock, Sash Lock, and Foam Seal Installation Mounting Hardware Tools Needed: 1 Phillips Head Screw Driver 2 Drill (if plot holes are needed) •...
- Page 14 • Drive 1/2" screws into the top of the accordion panel frame and the top rail to securely attach the window air conditioner to the lower sash (See Fig 11 Fig 12) • To secure the lower sash into place, use the sash lock and a 3/4" screw as shown below (See Fig 13) •...
- Page 15 Removing the Air Conditioner from the Window • Turn the air conditioner off and unplug the power cord • Remove the sash seal from between windows, and unscrew sash lock • Remove the screws installed through the frame and frame lock •...
- Page 16 3. Installation Safety 1) Refrigerant Leak Detector 2) Appropriate Installation Location 3) The left picture is the schematic diagram of arefrigerant leak detector Please note that: • The installation site should be in a well-ventilated condition • The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any o ther heat source higher than 548°C which easily produces open fire •...
-
Page 17: Using Your Air Conditioner
USING YOUR AIR CONDITIONER Normal Operating Sounds • You may hear a pinging noise caused by water hitting the condenser, on rainy days, or when the humidity is high This design feature helps remove moisture and improve efficiency • You may hear the thermostat click when the compressor cycles on and off •... -
Page 18: Care And Cleaning
Directional Louvers: Use the horizontal wheels to control horizontal airflow and the air deflectors to control vertical airflow Air Deflector Horizontal Wheel Air Deflector CARE AND CLEANING Air Filter Cleaning The air filter should be checked at least once every month to se e if it needs cleaing Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost To clean the air filter:... -
Page 19: Troubleshooting
Cabinet Cleaning To clean the air conditioner cabinet: • Unplug the air conditioner to prevent shock or a fire hazard Th e cabinet and front panel of the air conditioner may be dusted with an oilfree cloth or washed with a cloth dampened in a solution of warm water and mild liquid soap Rinse thoroughly with a damp cloth and wipe dry •... - Page 20 Problem Possible Cause Possible Solutions The Air Conditioner does not Airflow is restricted Make sure there are no cool as it should curtains, blinds, or furniture blocking the front of the air conditioner The temperature control may Lower the set thermostat not be set correctly temperature The air filter is dirty...
-
Page 21: Customer Support
If you wish to contact us by phone, please be sure to have your model number and serial number ready and call us between 9:00am and 6:00pm ET, at +1 866-954-4440 Keep tabs on Impecca’s newest innovations and enter contests via our social network feeds: www facebook com/Impecca/ ... -
Page 22: One-Year Limited Appliance Warranty (Us)
U.S.A. performed by unauthorized persons; use of non-genu- ine Impecca parts, etc. To obtain warranty service by an authorized Impecca™ ser- vice center, please email us at: service@impecca.com to ob- ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRAN-...
