Summary of Contents for Impecca IWA05-CM15

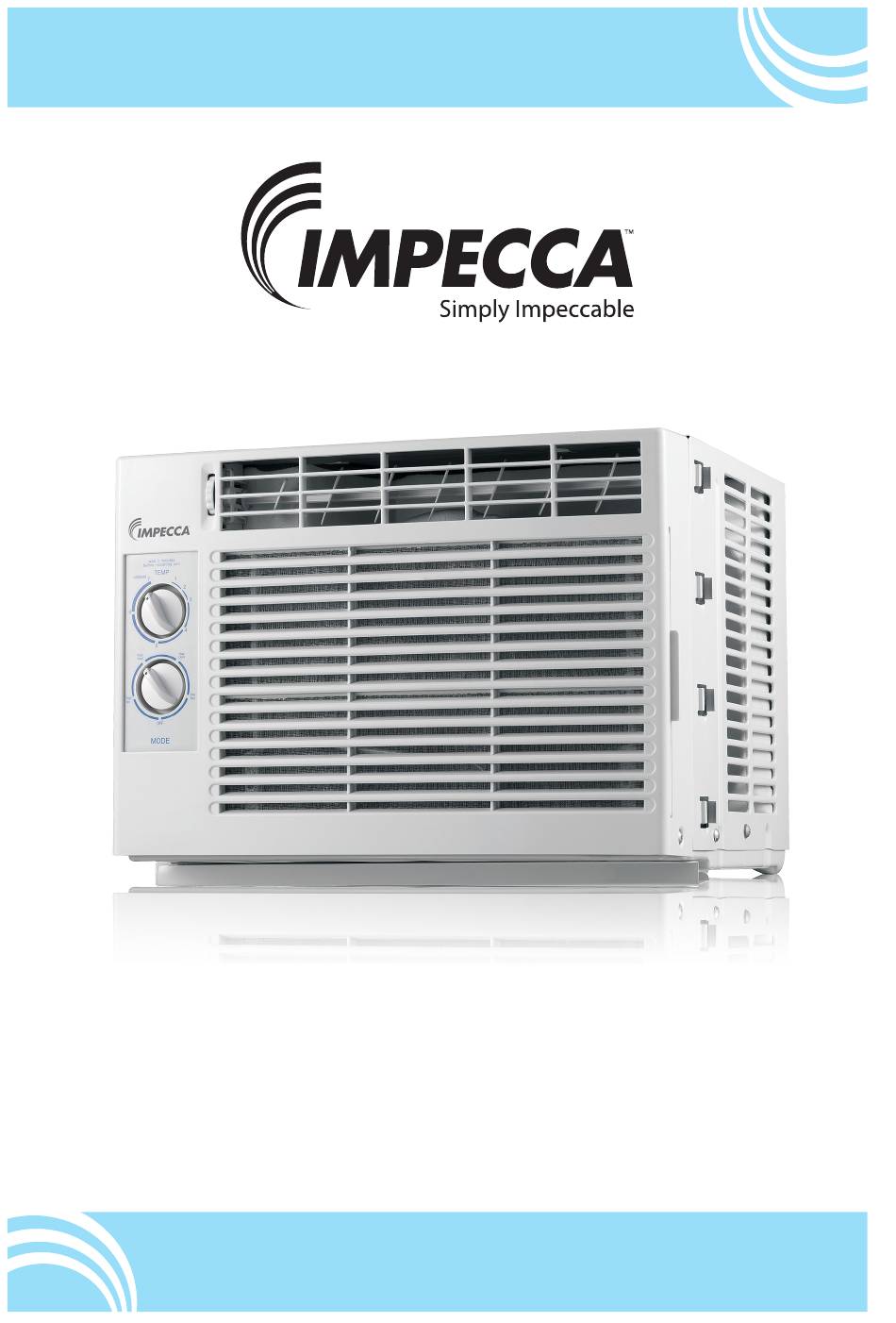

- Page 1 Window Air Conditioner—User Manual Aire acondicionado—Manual de usuario Model: IWA05-CM15 www.impecca.com...
- Page 2 WARNING: To avoid permanent damage to unit: Ensure it is in the upright position for a MINIMUM of 6 hours and a RECOMMENDED time of 24 hours before pow- ering on the first time. ADVERTENCIA: Para evitar daños permanentes a la unidad: Asegúrese de que está...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information ........................4 Introduction..........................6 Getting to know your Air Conditioner ..................7 Using your Air Conditioner .....................8 Pre-installation instructions ....................8 Cleaning & maintenance ...................... 13 Troubleshooting ........................14 Customer support ......................... 15 –iii–... -
Page 4: Safety Information
SAFETY INFORMATION READ THESE NOTICES CAREFULLY—THEY ARE IMPORTANT! WARNING Do not start or stop the unit by inserting or Do not damage power cord or replace Plug in power plug completely. pulling out the power plug. with a non-original power cord. •... - Page 5 CAUTION Stop operation and remove unit from Hold the plug by the head of the power Unplug the power cord when not using window in severe storm or hurricane. plug when unplugging unit. the unit for extended periods of time. •...
-
Page 6: Introduction
INTRODUCTION Thank you for purchasing this quality Impecca window air conditioner unit. To ensure the longest life and highest energy efficiency of your unit, please carefully follow these operating instructions. Keep these instructions in a safe place and consult them as needed. Please note... -
Page 7: Getting To Know Your Air Conditioner
OPERATING CONDITIONS • The air conditioner must be operated within the temperature range of 62°F to 95°F (16°C to 35°C). • A perimeter of 12′′(30cm) around the air conditioner should be free of all objects. • Do not operate the air conditioner in humid environments. •... -
Page 8: Using Your Air Conditioner
USING YOUR AIR CONDITIONER OVERVIEW OF CONTROLS FUNCTIONS Note: The controls featured in this manual may be slight- ly different from yours. Cooling Mode The desired cool setting is selected by rotating the MODE knob to the desired setting: “high cool” provides maximum airflow and cooling effect “low cool”... - Page 9 INCLUDED PARTS & ACCESSORIES* 1. Air conditioning unit 6. Foam seal (with adhesive) 2. Flexible window filler panels 7. Upper Rail Screws (x4) 3. Upper Rail (may already be attached) 8. Screws (x6) 4. Upper Rail seal (may already be at- 9.
- Page 10 INSTALLATION INSTRUCTIONS Use caution when unpacking and installing. Sharp edges can cause injury. Appearance of unit in these diagrams is for illustrative purposes only and may not precisely reflect your unit’s design. STEP 1: INSTALLING THE UPPER RAIL (IF Upper Rail NOT ALREADY ATTACHED) Upper Rail seal...
- Page 11 STEP 3: FOAM SEAL ON WINDOW FRAME • Affix the foam seal (with adhesive z) to the bottom of the window sash. STEP 4: MOUNT THE UNIT IN THE WINDOW FRAME 1. With the help of another person, center the unit on the windowsill.
- Page 12 3. Fasten the upper rail and top corners of the window filler panels to the window frame with screws. Fasten the bottom corners of the window filler panels to the windowsill. STEP 5: SECURING THE WINDOW • To keep the window from being unintentionally opened and risk damaging the unit or injuring passersby, use one type C screw to fasten the security bracket to the window.
-
Page 13: Cleaning & Maintenance
CLEANING & MAINTENANCE SAFETY WARNING To avoid electric shock, fire, damage, or injury while performing maintenance on your unit: • Always turn off and disconnect the air conditioner from electric power. • Never submerge the unit in water or spray liquids directly on the unit. •... -
Page 14: Troubleshooting
CLEANING THE FILTER For energy efficient operation, your filter should be cleaned at least once a month. Units in dusty environments may require more frequent filter cleaning. • The filter removal handle is located on the right side of the unit (see diagram D). •... -
Page 15: Customer Support
If you wish to contact us by phone, please be sure to have your model number and serial number ready and call us between 9:00am and 6:00pm ET, at +1 866-954-4440. Keep tabs on Impecca’s newest innovations & enter contests via our social network feeds: ... - Page 16 © 2016 Impecca, a division of LT Inc., Wilkes Barre, PA...
