Summary of Contents for Impecca IWAH08-KRA

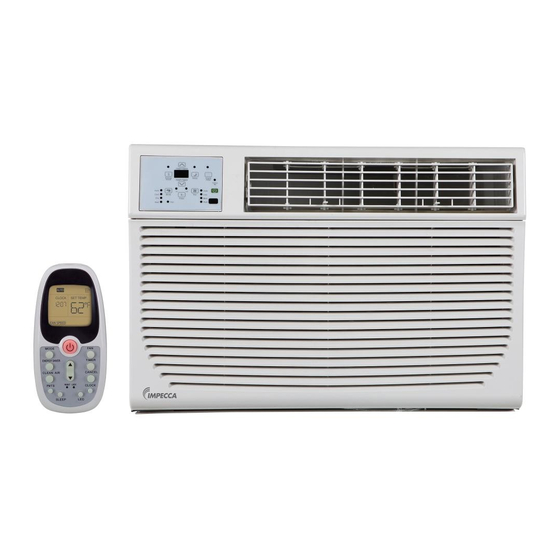

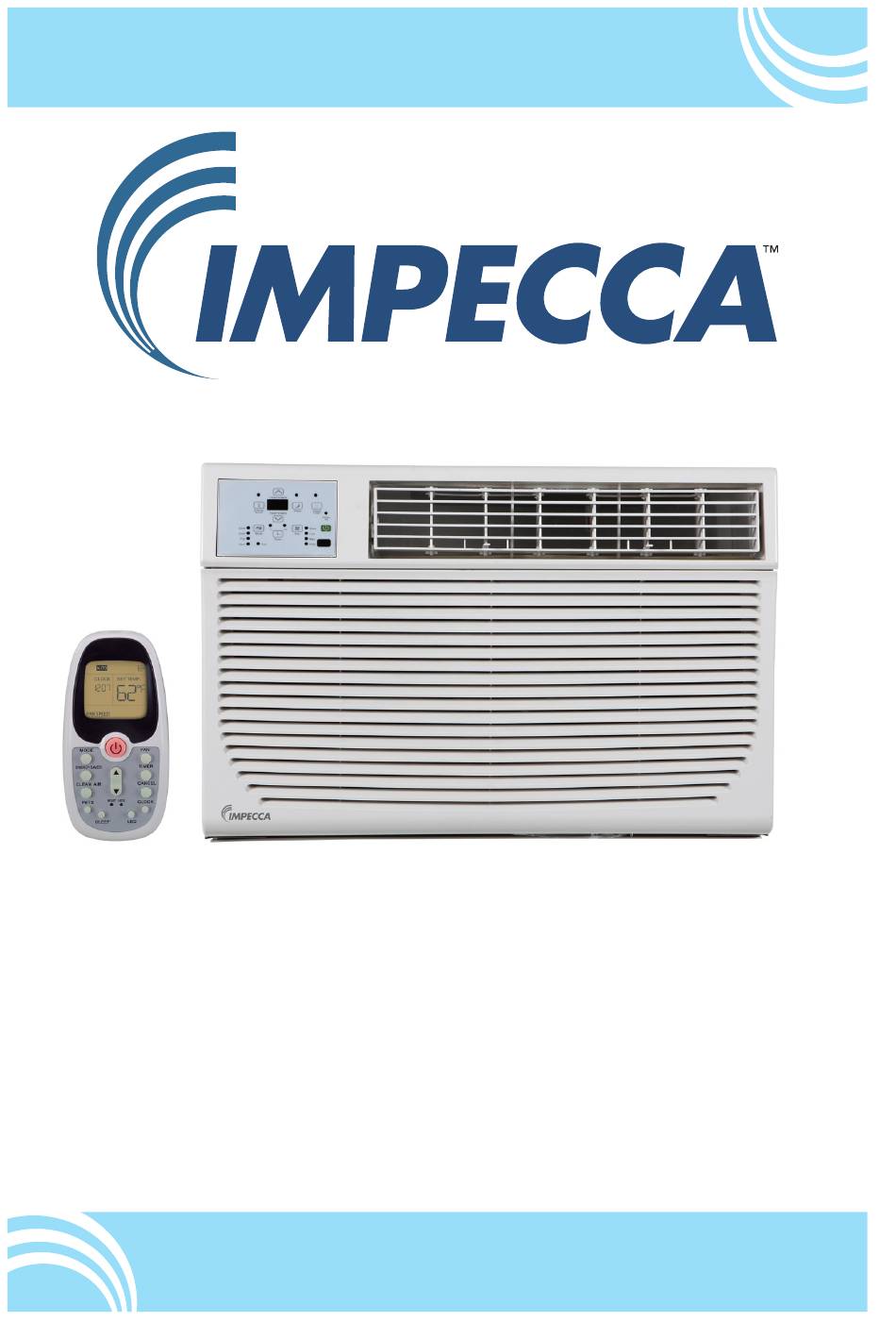

- Page 1 Electronic Air Conditioner with Heat & Remote —User's Guide Models: IWAH08-KRA (8000 BTU Cooling, 3500 BTU Heating, 120V), IWAH12-KRB (12,000 BTU Cooling, 11,000/8500 BTU Heating, 230/208V) www.impecca.com v0.3...
- Page 2 6 horas y un tiempo recomendado de 24 horas antes de encender la primera vez. Spanish version of this manual available for download on www.impecca.com Read the following notices and information carefully to ensure proper operation of your air conditioner unit.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ..........................6 Getting To Know Your Air Conditioner ..................7 Using Your Air Conditioner .....................8 Delay Start/Stop (Timer) ...................... 11 Additional Features and Information ................12 Pre-installation instructions....................13 Window Installation ......................16 Through-The-Wall Installation .................... 21 Masonry Construction ......................24 Cleaning &... - Page 4 READ THESE NOTICES CAREFULLY—THEY ARE IMPORTANT! WARNING Do not start or stop the unit by inserting or Do not damage power cord or replace Plug in power plug completely. pulling out the power plug. with a non-original power cord. •...
- Page 5 CAUTION Stop operation and remove unit from Hold the plug by the head of the power Unplug the power cord when not using window in severe storm or hurricane. plug when unplugging unit. the unit for extended periods of time. •...
-
Page 6: Introduction
INTRODUCTION Thank you for purchasing this quality Impecca window air conditioner unit. To ensure the longest life and highest energy efficiency of your unit, please carefully follow these operating instructions. Keep these instructions in a safe place and consult them as needed. -
Page 7: Getting To Know Your Air Conditioner
OPERATING CONDITIONS • The air conditioner must be operated within the temperature range of 62°F to 95°F (16°C to 35°C). • A perimeter of 12′′ (30cm) around the air conditioner should be free of all objects. • Keep air inlet and air outlet clean and free of obstructing objects. •... -
Page 8: Using Your Air Conditioner
USING YOUR AIR CONDITIONER OVERVIEW OF CONTROLS FUNCTIONS Before you begin, thoroughly familiarize yourself with the control panels as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel located on the front of the device or with the remote controller. - Page 9 TEMPERATURE ADJUSTMENT Press or hold either Down or Up button until the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 62° F (17° C) and 86° F (30° C). If you want the display to read the actual room tempera- ture, refer to "FAN ONLY MODE"...
- Page 10 PMTS — FOLLOW ME Personal Mapping Temperature Sensor: Your model may be equipped with a special feature that allows the remote control to act as a thermostat. If your unit shows this PMTS LED on the control PMTS panel, and you have the accompanying LCD remote control then your unit is equipped.
-
Page 11: Delay Start/Stop (Timer)
DELAY START/STOP (TIMER) The timer buttons enable two separate functions: one to au- tomatically start the unit within a 24 hour period of time and another to automatically turn off the unit within a 24 hour pe- riod of time. These functions are called, respectively, AUTO ON and AUTO OFF. -
Page 12: Additional Features And Information
ADDITIONAL FEATURES AND INFORMATION AIR DIRECTION(4-WAY) The 4-way air directional louvers allow you to direct the air flow Up or Down and Left or Right throughout the room as needed. To adjust the air directional louvers side-to-side, use the center handles as you move it side-to-side. 3-MINUTE DELAYED START This air conditioner has a protection circuit to prevent the compressor from overheat- ing. -
Page 13: Pre-Installation Instructions
PRE-INSTALLATION INSTRUCTIONS REQUIRED TOOLS (NOT INCLUDED) 3/32” 3/16” 1/8” Level Scissors drill bits Pencil Drill Phillips Screwdriver Tape Measure INCLUDED PARTS & ACCESSORIES* 1. Air conditioning unit 9. #10 x ¼" pan-head Phillips screw (x5) 2. Flexible window filler panels 10. - Page 14 UNIT CHASSIS EXPLODED VIEW Window Sash Seal Safety Lock and ¾” (or ½”) length Hex Head Screw Upper Rail Foam Gasket Washer Head Locking Screw Frame Assembly (Le ) Side Retainer Bottom rail seal Frame Assembly (Right) –14–...
- Page 15 WINDOW REQUIREMENTS Your air conditioner is designed OFFSET to be installed in standard EXTERIOR double hung windows with WALL minimum width and height requirements as follows: INNER WINDOW SILL : Opening width of 26 ⅞ inches. INTERIOR : Opening height of 16½"inch- WALL Wooden Windows STORM WINDOW MODIFICATIONS...
-
Page 16: Window Installation
WINDOW INSTALLATION Use caution when unpacking and installing. Sharp edges can cause injury. Appearance of unit in these diagrams is for illustrative purposes only and may not precisely reflect your unit’s design. BEFORE YOU BEGIN 1. Check for anything that could block airflow: Any shrubs, trees, awnings on the outside;... - Page 17 push the plastic outwards while grasping the metal cabinet. Do this in the top and bottom left side and repeat on the right side. Gently dislodge, noting that the con- trol panel will be connected to the main unit (Figures C, D). Fig.
- Page 18 STEP 2: INSTALL UPPER RAIL 1. Affix foam gasket to bottom of upper rail bracket (if not already affixed). 2. Install upper rail using a total of 3 #10, ¼" screws.(See FIg. I) STEP 3: ASSEMBLE WINDOW FILLER PANELS 1. Place the cabinet on a steady surface such as a floor, bench or table.
- Page 19 WOODEN WINDOWS 4. Drill a 3/16" starter hole ⅜" deep through the three holes in the cabinet and into the window sill (Fig N, A) and drill one starter hole ⅜" deep through the hole in the mid- dle of the top rail and into the window frame (Fig. N, B). Attach cabinet to window with three #10 ½"...
- Page 20 3. Drive 4 #10 ¾" (or ½") round-head Phillips screws through holes A and B (left and then right side). See Fig. P and Q Fig. Q Bird's Eye View Front View Fig. P Window Sash weather seals A. #10 ¾" (or ½") round-head screw B.
-
Page 21: Through-The-Wall Installation
STEP 7: INSTALL CHASSIS INTO CABINET AND REATTACH FRONT PANEL. 1. Lift air conditioner chassis and carefully slide into cabinet leaving 6 inches protrud- ing. 2. DO NOT push on controls or finned coils. 3. Be sure chassis is firmly seated towards rear of cabinet. 4. - Page 22 Y: Inside Frame Height: 15⅜ " (39cm) Inside Frame X: Inside Frame Width: 22⅝" (57.5cm) Height Inside Frame Width Up to 6 ½” Width "X" = inside model width plus twice the thickness of framing material used. With "Y" = inside model height plus twice the thickness of framing material used. 4.
- Page 23 STEP 3: PREPARE AND INSTALL CABINET 1. Slide chassis from cabinet. 2. For detailed instructions, see Step 1, in the Window Mounting section, above. 3. Place cabinet into opening with bottom rail resting firmly on bottom board of wooden frame. 4.
-
Page 24: Masonry Construction
MASONRY CONSTRUCTION 1. Cut or build a wall opening in the masonry wall in a similar way to the frame con- struction method explained above. For walls with a thickness greater than 6 ½”, refer to Step 2 of Through-The-Wall Installation, above. 2. - Page 25 LONG-TERM STORAGE Should you place your unit in long-term storage, perform all of the post-season checks listed above and perform the following additional steps: • Wrap the electrical cord loosely around the unit. • Cover the unit with a sheet or cloth to prevent dust buildup inside during storage. •...
-
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM / POSSIBLE CAUSES THE AIR CONDITIONER DOES NOT FUNCTION AT ALL • Is the power cable properly inserted into a functioning, grounded outlet? • Is there a power failure such as a blown fuse or tripped circuit breaker? •... -
Page 27: Electrical Information
• The insulation of the power cable is ripped, shred or torn. • The unit controls do not work. • The unit produces abnormal noises. ELECTRICAL INFORMATION IWAH08-KRA • IWAH12-KRB • 230/208 Volts, 60Hz, 1Ph • 115 Volts, 60Hz, 1Ph •... -
Page 28: Customer Support
If you wish to contact us by phone, please be sure to have your model number and serial number ready and call us between 9:30am and 5:00pm ET, at +1 866-954-4440. Keep tabs on Impecca’s newest innovations & enter contests via our social network feeds: ... -
Page 29: One-Year Limited Appliance Warranty (Us)
13. Surcharges that may apply to service calls on weekends, from the date of the original purchase, Impecca™, at its nights, holidays. Damages to the finish of appliance or own discretion, will repair or replace the product parts household furnishings due to installation of appliance. -
Page 30: Garantía Limitada Por Un Año (Us)
Para obtener el servicio de garantía de un distribuidor autori- de la casa debido a la instalación del electrodoméstico. zado de Impecca™ envíenos un correo electrónico a: service@ 14. Daños causados por cualquiera de las siguientes causas: impecca.com para obtener un número de Autorización de Actos de Dios, incendios, mal uso. -
Page 31: Garantie Limitée D'un An (Us)
L’usure normale de l’appareil n’est pas couverte par cette Aucun revendeur, agent ou employé d’Impecca™ n’est garantie. Impecca™ se réserve le droit de déterminer le niveau autorisé à effectuer une modification, une extension, un d’usure sur l’ensemble de ses appareils. Ouvrir le boîtier ou changement ou un amendement de cette garantie sans le modifier l’appareil annule dans son entièreté... - Page 32 © 2017 Impecca, a division of LT Inc., Wilkes Barre, PA.
